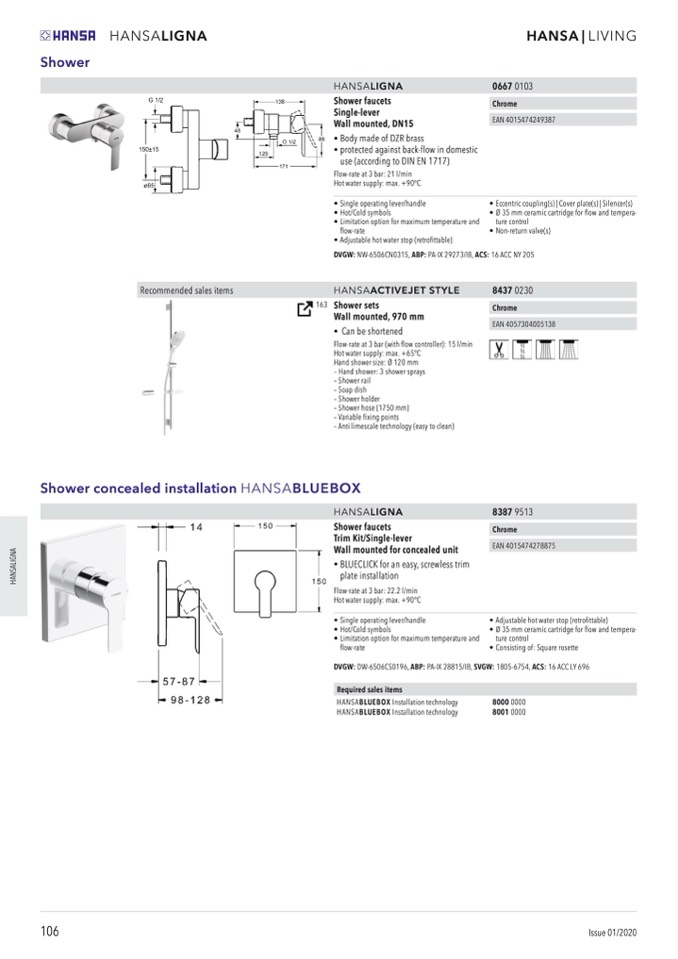

HANSALIGNA

0667 0103

€ 293,00

Chrome

Recommended sales items

HANSAACTIVEJET STYLE

EAN 4015474249387

8437 0230

€

HANSALIGNA

Chrome

EAN 4057304005138

8387 9513

€ 201,00

Chrome

EAN 4015474278875

Required sales items

HANSALIGNA

HANSA | LIVING

Shower

Shower faucets

Single-lever

Wall mounted, DN15

• Body made of DZR brass

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 21 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Cover plate(s) | Silencer(s)

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Non-return valve(s)

DVGW: NW-6506CN0315, ABP: PA-IX 29273/IB, ACS: 16 ACC NY 205

163

Shower sets

Wall mounted, 970 mm

• Canbeshortened

Flow-rate at 3 bar (with flow controller): 15 l/min

Hot water supply: max. +65°C

Hand shower size: Ø 120 mm

– Hand shower: 3 shower sprays

– Shower rail

– Soap dish

– Shower holder

– Shower hose (1750 mm)

– Variable fixing points

– Anti limescale technology (easy to clean)

Shower concealed installation HANSABLUEBOX

Shower faucets

Trim Kit/Single-lever

Wall mounted for concealed unit

• BLUECLICK for an easy, screwless trim

plate installation

Flow-rate at 3 bar: 22.2 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

DVGW: DW-6506CS0196, ABP: PA-IX 28815/IB, SVGW: 1805-6754, ACS: 16 ACC LY 696

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

• Adjustable hot water stop (retrofittable)

• Ø 35 mm ceramic cartridge for flow and tempera-

8000 0000

8001 0000

ture control

• Consisting of: Square rosette

106

Issue 01/2020
