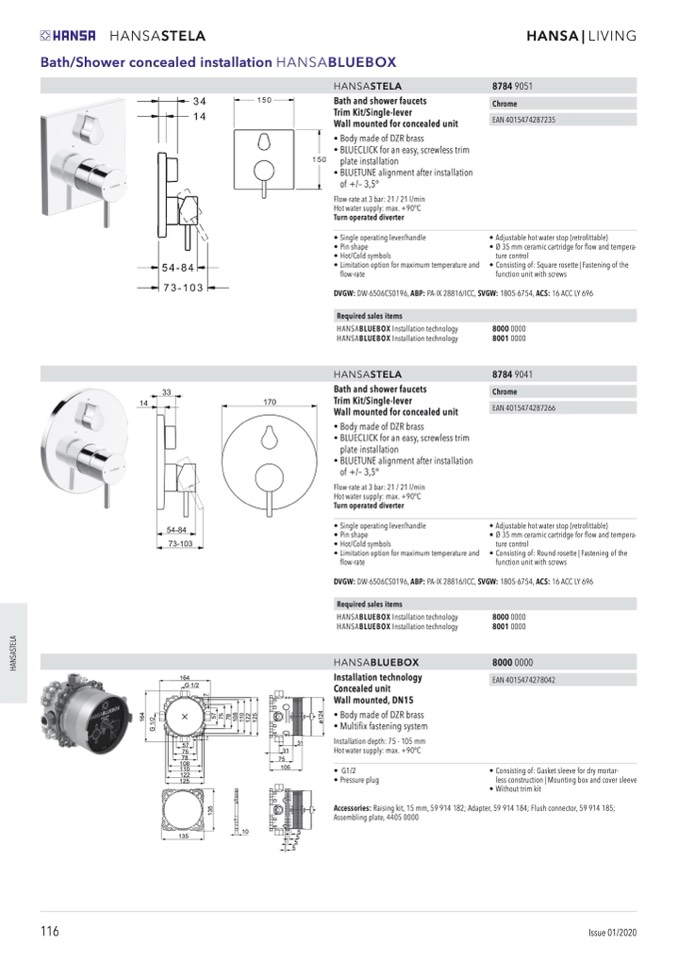

HANSASTELA

Bath/Shower concealed installation HANSABLUEBOX

HANSA | LIVING

116

Issue 01/2020

164

G 1/2

7

57

75

78

108

110

122

125

135

31

10

5

5

5

5

31

75

105

• Consisting of: Gasket sleeve for dry mortar-

less construction | Mounting box and cover sleeve

• Without trim kit

HANSASTELA

Bath and shower faucets

Trim Kit/Single-lever

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 21 / 21 l/min

Hot water supply: max. +90°C

Turn operated diverter

• Single operating lever/handle

• Pin shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

DVGW: DW-6506CS0196, ABP: PA-IX 28816/ICC, SVGW: 1805-6754, ACS: 16 ACC LY 696

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

HANSASTELA

Bath and shower faucets

Trim Kit/Single-lever

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 21 / 21 l/min

Hot water supply: max. +90°C

Turn operated diverter

• Single operating lever/handle

• Pin shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

DVGW: DW-6506CS0196, ABP: PA-IX 28816/ICC, SVGW: 1805-6754, ACS: 16 ACC LY 696

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

HANSABLUEBOX

Installation technology

Concealed unit

Wall mounted, DN15

• Body made of DZR brass

• Multifix fastening system

Installation depth: 75 - 105 mm

Hot water supply: max. +90°C

• G1/2

• Pressure plug

8000 0000

8001 0000

80000000

EAN 4015474278042

€ 76,10

Accessories: Raising kit, 15 mm, 59 914 182; Adapter, 59 914 184; Flush connector, 59 914 185;

Assembling plate, 4405 0000

87849051

Chrome

EAN 4015474287235

€ 256,00

• Adjustable hot water stop (retrofittable)

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Consisting of: Square rosette | Fastening of the

function unit with screws

8000 0000

8001 0000

87849041

Chrome

EAN 4015474287266

€ 256,00

• Adjustable hot water stop (retrofittable)

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Consisting of: Round rosette | Fastening of the

function unit with screws
