HANSA | LIVING

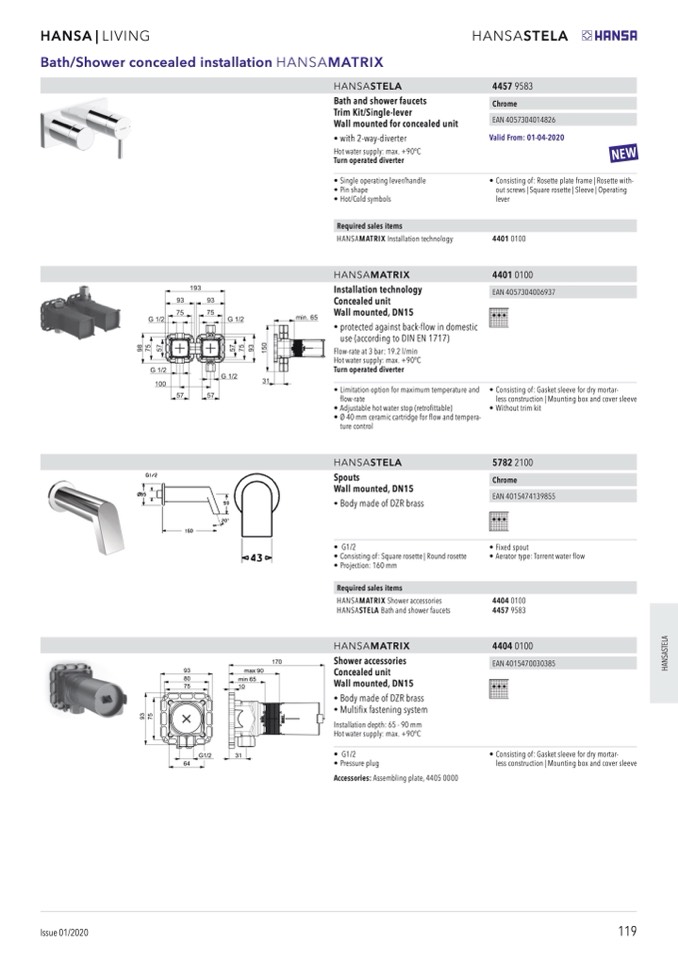

Bath/Shower concealed installation HANSAMATRIX

HANSASTELA

44579583

Chrome

EAN 4057304014826

Valid From: 01-04-2020

Issue 01/2020

119

93

80

75

64

max 90

min 65

10

G1/2

31

• Consisting of: Gasket sleeve for dry mortar-

less construction | Mounting box and cover sleeve

170

HANSASTELA

Bath and shower faucets

Trim Kit/Single-lever

Wall mounted for concealed unit

• with 2-way-diverter

Hot water supply: max. +90°C

Turn operated diverter

• Single operating lever/handle

• Pin shape

• Hot/Cold symbols

Required sales items

HANSAMATRIX Installation technology

HANSAMATRIX

Installation technology

Concealed unit

Wall mounted, DN15

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 19.2 l/min

Hot water supply: max. +90°C

Turn operated diverter

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Ø 40 mm ceramic cartridge for flow and tempera-

ture control

HANSASTELA

Spouts

Wall mounted, DN15

• Body made of DZR brass

• G1/2

• Consisting of: Square rosette | Round rosette

• Projection: 160 mm

Required sales items

HANSAMATRIX Shower accessories

HANSASTELA Bath and shower faucets

HANSAMATRIX

Shower accessories

Concealed unit

Wall mounted, DN15

• Body made of DZR brass

• Multifix fastening system

Installation depth: 65 - 90 mm

Hot water supply: max. +90°C

• G1/2

• Pressure plug

Accessories: Assembling plate, 4405 0000

€ 329,00

• Consisting of: Rosette plate frame | Rosette with-

out screws | Square rosette | Sleeve | Operating

lever

4401 0100

44010100

EAN 4057304006937

€ 278,00

• Consisting of: Gasket sleeve for dry mortar-

less construction | Mounting box and cover sleeve

• Without trim kit

57822100

Chrome

EAN 4015474139855

• Fixed spout

• Aerator type: Torrent water flow

4404 0100

4457 9583

44040100

EAN 4015470030385

€ 142,00

9

3

7

5

H

A

N

S

A

S

T

E

L

A

€ 70,70
