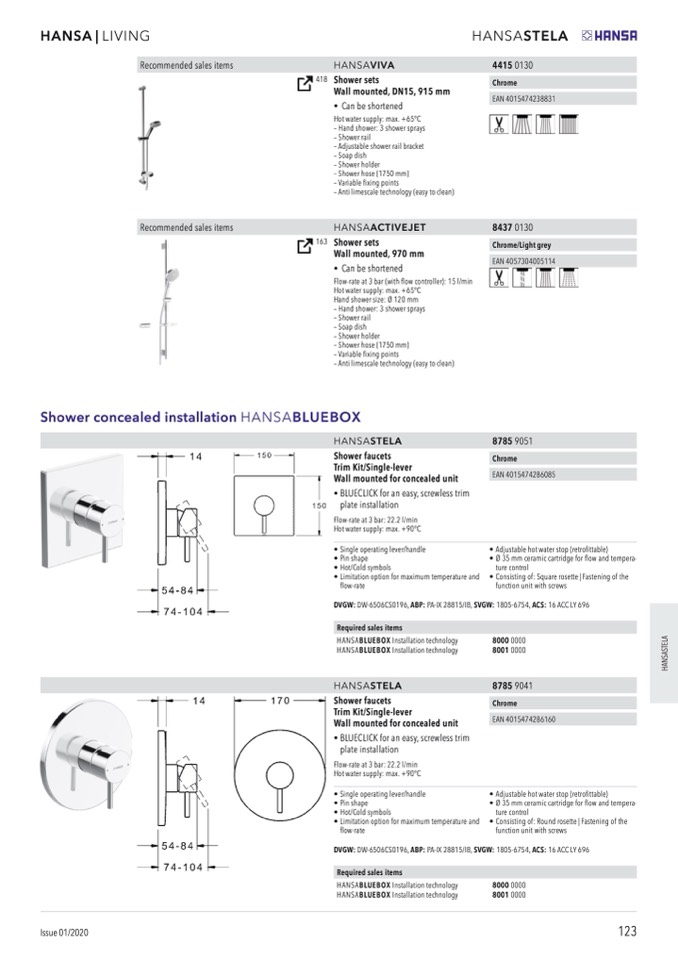

HANSA | LIVING
HANSASTELA
Recommended sales items
Recommended sales items
418
Shower sets
Wall mounted, DN15, 915 mm
• Canbeshortened
Hot water supply: max. +65°C
– Hand shower: 3 shower sprays
– Shower rail
– Adjustable shower rail bracket
– Soap dish
– Shower holder
– Shower hose (1750 mm)
– Variable fixing points
– Anti limescale technology (easy to clean)
Shower sets
Wall mounted, 970 mm
• Canbeshortened
Flow-rate at 3 bar (with flow controller): 15 l/min
Hot water supply: max. +65°C
Hand shower size: Ø 120 mm
– Hand shower: 3 shower sprays
– Shower rail
– Soap dish
– Shower holder
– Shower hose (1750 mm)
– Variable fixing points
– Anti limescale technology (easy to clean)
HANSAVIVA
HANSAACTIVEJET
Chrome
EAN 4015474238831
8437 0130
€
163
Shower concealed installation HANSABLUEBOX
Shower faucets
Trim Kit/Single-lever
Wall mounted for concealed unit
• BLUECLICK for an easy, screwless trim
plate installation
Flow-rate at 3 bar: 22.2 l/min
Hot water supply: max. +90°C
• Single operating lever/handle
• Pin shape
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
DVGW: DW-6506CS0196, ABP: PA-IX 28815/IB, SVGW: 1805-6754, ACS: 16 ACC LY 696
HANSASTELA
Chrome/Light grey
EAN 4057304005114
8785 9051
€ 173,00
Chrome
HANSABLUEBOX Installation technology
HANSABLUEBOX Installation technology
Shower faucets
Trim Kit/Single-lever
Wall mounted for concealed unit
• BLUECLICK for an easy, screwless trim
plate installation
Flow-rate at 3 bar: 22.2 l/min
Hot water supply: max. +90°C
• Single operating lever/handle
• Pin shape
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
DVGW: DW-6506CS0196, ABP: PA-IX 28815/IB, SVGW: 1805-6754, ACS: 16 ACC LY 696
HANSASTELA
EAN 4015474286085
• Adjustable hot water stop (retrofittable)
• Ø 35 mm ceramic cartridge for flow and tempera-
ture control
• Consisting of: Square rosette | Fastening of the
function unit with screws
Required sales items
8000 0000
8001 0000
• Adjustable hot water stop (retrofittable)
• Ø 35 mm ceramic cartridge for flow and tempera-
ture control
• Consisting of: Round rosette | Fastening of the
8785 9041
€ 173,00
Chrome
EAN 4015474286160
Issue 01/2020
123
HANSABLUEBOX Installation technology
HANSABLUEBOX Installation technology
8000 0000
8001 0000
4415 0130
function unit with screws
€
Required sales items
