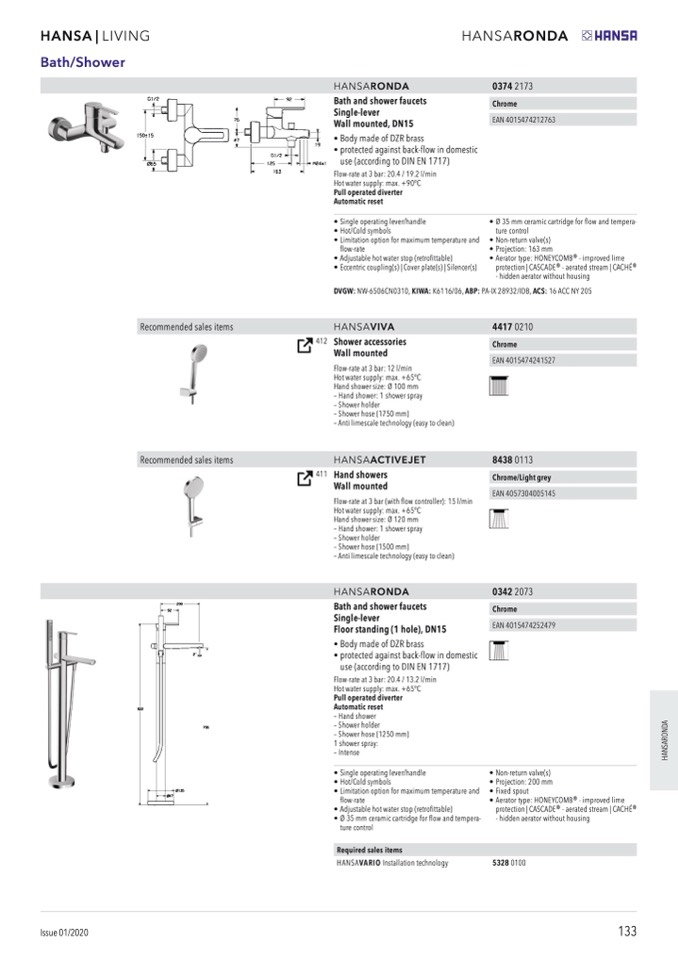

HANSA | LIVING
Bath/Shower
HANSARONDA
Bath and shower faucets
Single-lever
Wall mounted, DN15
• Body made of DZR brass
• protected against back-flow in domestic
use (according to DIN EN 1717)
Flow-rate at 3 bar: 20.4 / 19.2 l/min
Hot water supply: max. +90°C
Pull operated diverter
Automatic reset
• Single operating lever/handle
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
• Adjustable hot water stop (retrofittable)
• Eccentric coupling(s) | Cover plate(s) | Silencer(s)
• Ø 35 mm ceramic cartridge for flow and tempera-
ture control
• Non-return valve(s)
• Projection: 163 mm
• Aerator type: HONEYCOMB® - improved lime
protection | CASCADE® - aerated stream | CACHÉ®
- hidden aerator without housing
Issue 01/2020
133
Recommended sales items
HANSARONDA
DVGW: NW-6506CN0310, KIWA: K6116/06, ABP: PA-IX 28932/IDB, ACS: 16 ACC NY 205
HANSAVIVA
0374 2173
Chrome
EAN 4015474212763
4417 0210
€ 261,00
€
412
411
Shower accessories
Wall mounted
Flow-rate at 3 bar: 12 l/min
Hot water supply: max. +65°C
Hand shower size: Ø 100 mm
– Hand shower: 1 shower spray
– Shower holder
– Shower hose (1750 mm)
– Anti limescale technology (easy to clean)
Hand showers
Wall mounted
Flow-rate at 3 bar (with flow controller): 15 l/min
Hot water supply: max. +65°C
Hand shower size: Ø 120 mm
– Hand shower: 1 shower spray
– Shower holder
– Shower hose (1500 mm)
– Anti limescale technology (easy to clean)
Bath and shower faucets
Single-lever
Floor standing (1 hole), DN15
• Body made of DZR brass
• protected against back-flow in domestic
use (according to DIN EN 1717)
Flow-rate at 3 bar: 20.4 / 13.2 l/min
Hot water supply: max. +65°C
Pull operated diverter
Automatic reset
– Hand shower
– Shower holder
– Shower hose (1250 mm)
1 shower spray:
– Intense
• Single operating lever/handle
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
• Adjustable hot water stop (retrofittable)
• Ø 35 mm ceramic cartridge for flow and tempera-
ture control
HANSAVARIO Installation technology
Chrome
Recommended sales items
HANSAACTIVEJET
EAN 4015474241527
8438 0113
€
Chrome/Light grey
HANSARONDA
EAN 4057304005145
0342 2073
€ 1.723,00
Chrome
EAN 4015474252479
• Non-return valve(s)
• Projection: 200 mm
• Fixed spout
• Aerator type: HONEYCOMB® - improved lime
protection | CASCADE® - aerated stream | CACHÉ®
- hidden aerator without housing
5328 0100
Required sales items
