Washbasin

Single-lever mixer

Touchless thermostat

Design option

Series-dependent

Series-independent

Models

HANSALOFT

5757 2183

|�1.4.2020

HANSADESIGNO STYLE

5109 2183

HANSADESIGNO STYLE

4492 2010

HANSADESIGNO STYLE is also suitable

for combining with other series

HANSALIGNA

4489 2183

|�1.4.2020

HANSASTELA

4490 2183

|�1.4.2020

HANSARONDA

4488 2183

|�1.4.2020

4400 0100

4409 0000

Installation

accessories

Installation angle set

4405 0100

(conventional)

Highly recommendable:

Installation rail

4405 0000

A

B

Installation location

Technology

C

HANSAMATRIX

concealed fitting

The ABC of perfect planning

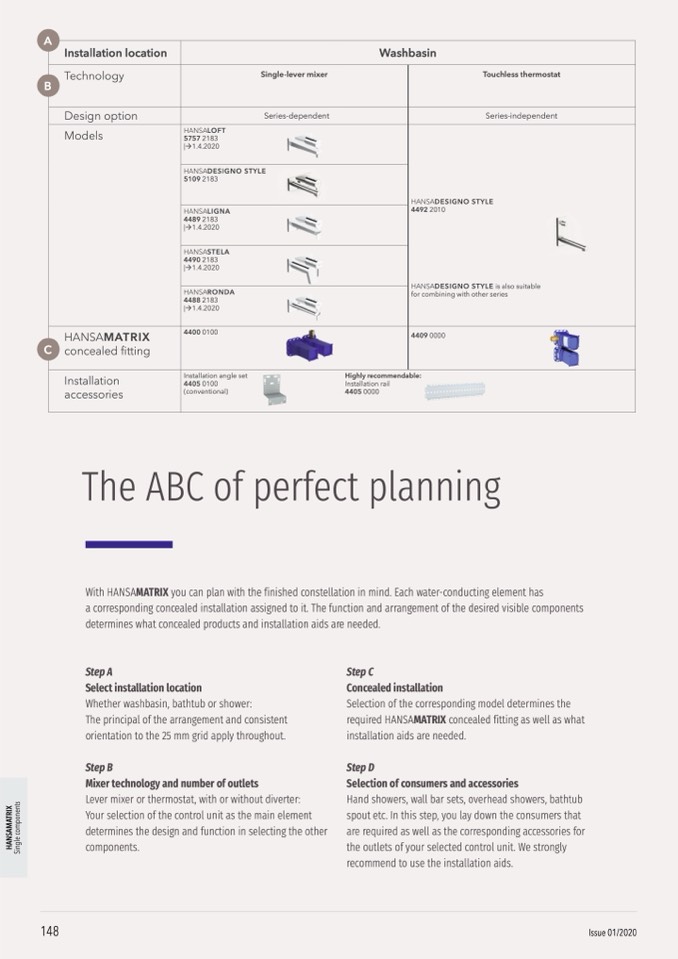

With HANSAMATRIX you can plan with the finished constellation in mind. Each water-conducting element has

� ������������� ��������� ������������ �������� �� ��� ��� �������� ��� ����������� �� ��� ������� ������� ����������

determines what concealed products and installation aids are needed.

Step A

Select installation location

Whether washbasin, bathtub or shower:

The principal of the arrangement and consistent

orientation to the 25 mm grid apply throughout.

Step B

Mixer technology and number of outlets

Lever mixer or thermostat, with or without diverter:

Your selection of the control unit as the main element

determines the design and function in selecting the other

components.

Step C

Concealed installation

Selection of the corresponding model determines the

required HANSAMATRIX concealed fitting as well as what

installation aids are needed.

Step D

Selection of consumers and accessories

Hand showers, wall bar sets, overhead showers, bathtub

spout etc. In this step, you lay down the consumers that

are required as well as the corresponding accessories for

the outlets of your selected control unit. We strongly

recommend to use the installation aids.
