152

Issue 01/2020

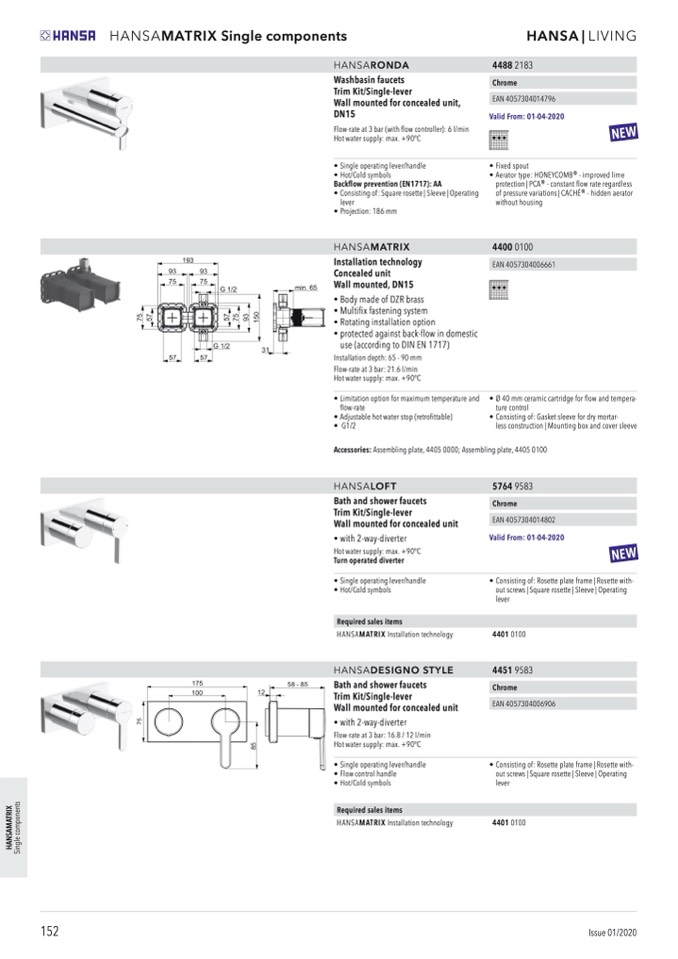

HANSAMATRIX Single components

HANSARONDA

Washbasin faucets

Trim Kit/Single-lever

Wall mounted for concealed unit,

DN15

Flow-rate at 3 bar (with flow controller): 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

Backflow prevention (EN1717): AA

• Consisting of: Square rosette | Sleeve | Operating

lever

• Projection: 186 mm

HANSAMATRIX

Installation technology

Concealed unit

Wall mounted, DN15

• Body made of DZR brass

• Multifix fastening system

• Rotating installation option

• protected against back-flow in domestic

use (according to DIN EN 1717)

Installation depth: 65 - 90 mm

Flow-rate at 3 bar: 21.6 l/min

Hot water supply: max. +90°C

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• G1/2

HANSA | LIVING

Accessories: Assembling plate, 4405 0000; Assembling plate, 4405 0100

HANSALOFT

Bath and shower faucets

Trim Kit/Single-lever

Wall mounted for concealed unit

• with 2-way-diverter

Hot water supply: max. +90°C

Turn operated diverter

• Single operating lever/handle

• Hot/Cold symbols

Required sales items

HANSAMATRIX Installation technology

HANSADESIGNO STYLE

Bath and shower faucets

Trim Kit/Single-lever

Wall mounted for concealed unit

• with 2-way-diverter

Flow-rate at 3 bar: 16.8 / 12 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Flow control handle

• Hot/Cold symbols

Required sales items

HANSAMATRIX Installation technology

57649583

Chrome

EAN 4057304014802

Valid From: 01-04-2020

€ 346,00

44882183

Chrome

EAN 4057304014796

Valid From: 01-04-2020

€ 296,00

NEW

• Fixed spout

• Aerator type: HONEYCOMB® - improved lime

protection | PCA® - constant flow rate regardless

of pressure variations | CACHÉ® - hidden aerator

without housing

44000100

EAN 4057304006661

€ 191,00

• Ø 40 mm ceramic cartridge for flow and tempera-

ture control

• Consisting of: Gasket sleeve for dry mortar-

less construction | Mounting box and cover sleeve

• Consisting of: Rosette plate frame | Rosette with-

out screws | Square rosette | Sleeve | Operating

lever

4401 0100

4451 9583

Chrome

EAN 4057304006906

€ 340,00

• Consisting of: Rosette plate frame | Rosette with-

out screws | Square rosette | Sleeve | Operating

lever

4401 0100
