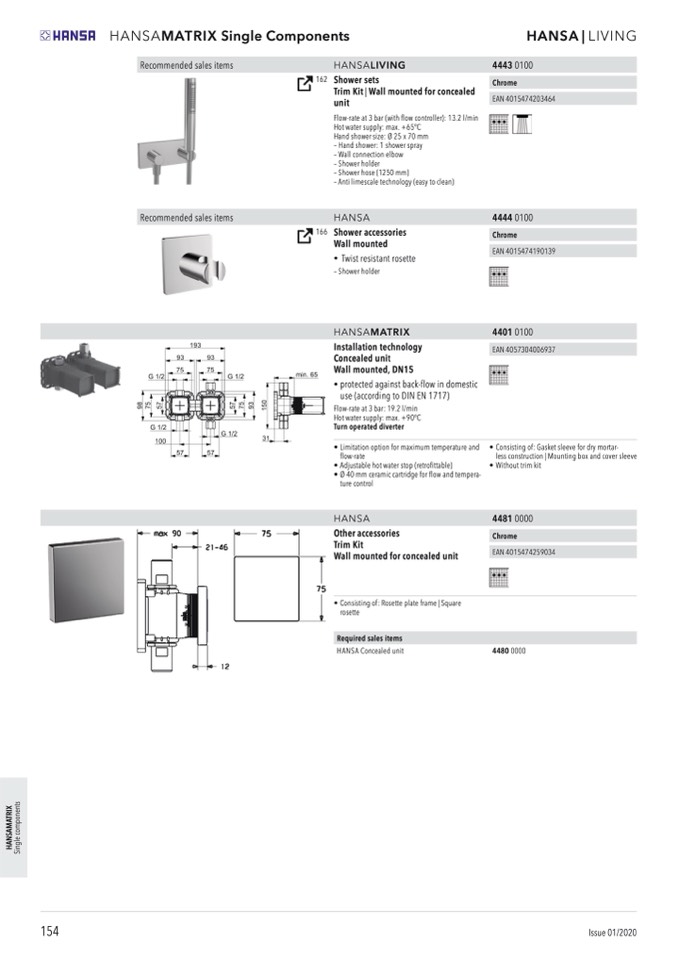

154

Issue 01/2020

HANSAMATRIX Single Components

HANSA | LIVING

Recommended sales items

HANSALIVING

Shower sets

Trim Kit | Wall mounted for concealed

unit

Flow-rate at 3 bar (with flow controller): 13.2 l/min

Hot water supply: max. +65°C

Hand shower size: Ø 25 x 70 mm

– Hand shower: 1 shower spray

– Wall connection elbow

– Shower holder

– Shower hose (1250 mm)

– Anti limescale technology (easy to clean)

HANSA

Shower accessories

Wall mounted

• Twistresistantrosette

– Shower holder

HANSAMATRIX

Installation technology

Concealed unit

Wall mounted, DN15

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 19.2 l/min

Hot water supply: max. +90°C

Turn operated diverter

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Ø 40 mm ceramic cartridge for flow and tempera-

ture control

HANSA

Other accessories

Trim Kit

Wall mounted for concealed unit

• Consisting of: Rosette plate frame | Square

rosette

Required sales items

HANSA Concealed unit

4443 0100

Chrome

EAN 4015474203464

4444 0100

Chrome

EAN 4015474190139

44010100

EAN 4057304006937

€

Recommended sales items

€

€ 278,00

162

166

• Consisting of: Gasket sleeve for dry mortar-

less construction | Mounting box and cover sleeve

• Without trim kit

44810000

Chrome

EAN 4015474259034

4480 0000

€ 66,70
