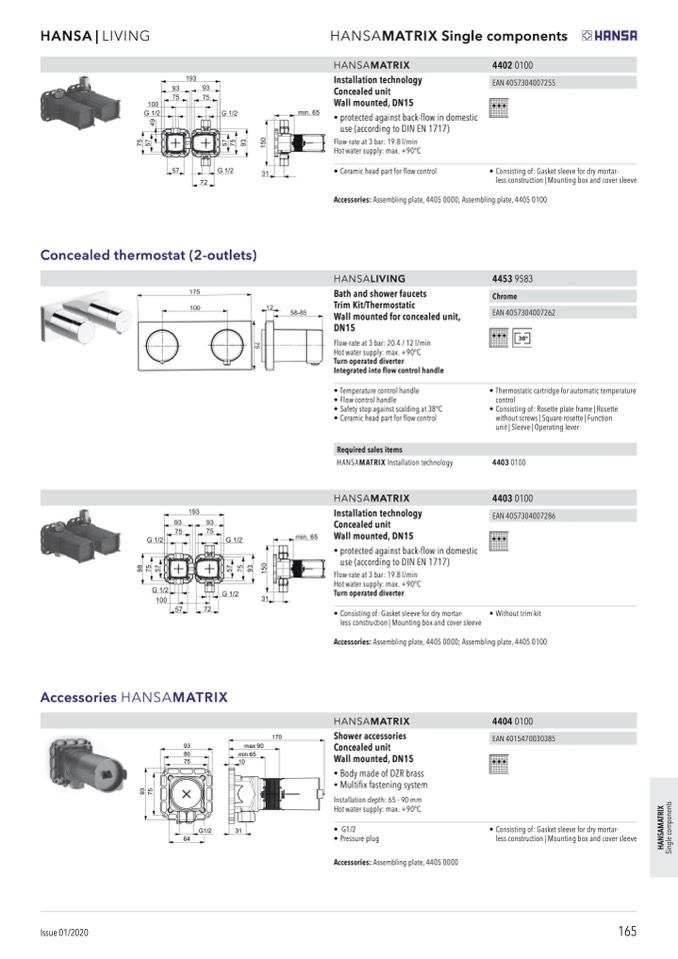

HANSA | LIVING
HANSAMATRIX Single components
Concealed thermostat (2-outlets)
Accessories HANSAMATRIX
93
80
75
64
HANSAMATRIX
Shower accessories
Concealed unit
Wall mounted, DN15
• Body made of DZR brass
• Multifix fastening system
Installation depth: 65 - 90 mm
Hot water supply: max. +90°C
• G1/2
• Pressure plug
Accessories: Assembling plate, 4405 0000
44040100
EAN 4015470030385
€ 70,70
Issue 01/2020
165
max 90
min 65
10
G1/2
31
• Consisting of: Gasket sleeve for dry mortar-
less construction | Mounting box and cover sleeve
170
44020100
EAN 4057304007255
• Ceramic head part for flow control
Accessories: Assembling plate, 4405 0000; Assembling plate, 4405 0100
€ 382,00
HANSAMATRIX
Installation technology
Concealed unit
Wall mounted, DN15
• protected against back-flow in domestic
use (according to DIN EN 1717)
Flow-rate at 3 bar: 19.8 l/min
Hot water supply: max. +90°C
HANSALIVING
Bath and shower faucets
Trim Kit/Thermostatic
Wall mounted for concealed unit,
DN15
Flow-rate at 3 bar: 20.4 / 12 l/min
Hot water supply: max. +90°C
Turn operated diverter
Integrated into flow control handle
• Temperature control handle
• Flow control handle
• Safety stop against scalding at 38°C
• Ceramic head part for flow control
Required sales items
HANSAMATRIX Installation technology
HANSAMATRIX
Installation technology
Concealed unit
Wall mounted, DN15
• protected against back-flow in domestic
use (according to DIN EN 1717)
Flow-rate at 3 bar: 19.8 l/min
Hot water supply: max. +90°C
Turn operated diverter
• Consisting of: Gasket sleeve for dry mortar-
less construction | Mounting box and cover sleeve
44539583
Chrome
EAN 4057304007262
€ 362,00
• Without trim kit
Accessories: Assembling plate, 4405 0000; Assembling plate, 4405 0100
• Consisting of: Gasket sleeve for dry mortar-
less construction | Mounting box and cover sleeve
• Thermostatic cartridge for automatic temperature
control
• Consisting of: Rosette plate frame | Rosette
without screws | Square rosette | Function
unit | Sleeve | Operating lever
4403 0100
44030100
EAN 4057304007286
€ 479,00
