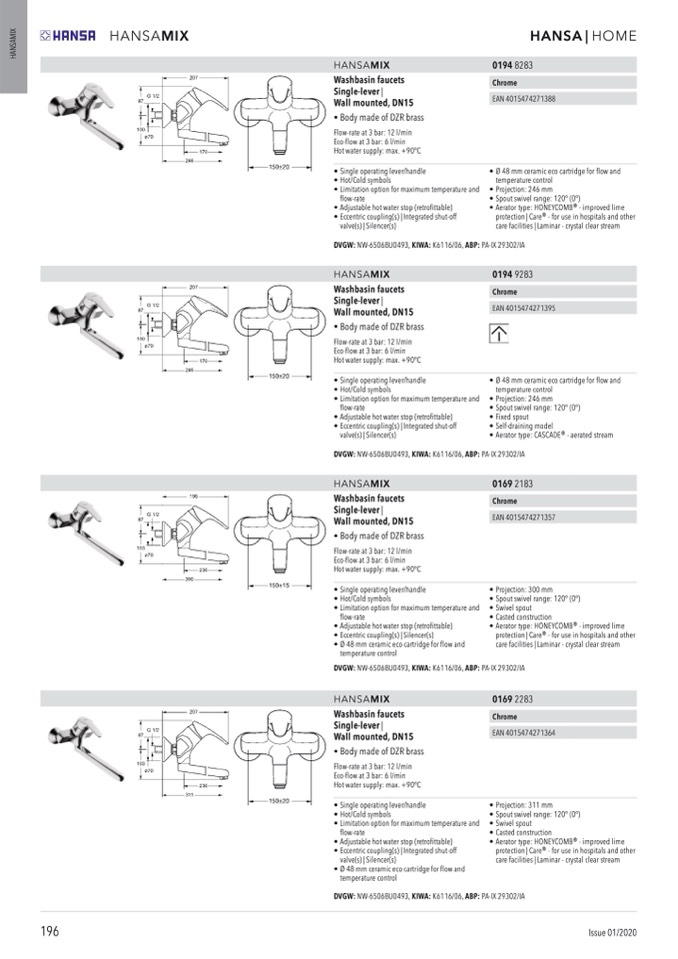

HANSAMIX

HANSA | HOME

HANSAMIX

Washbasin faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

Flow-rate at 3 bar: 12 l/min

Eco-flow at 3 bar: 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Integrated shut-off

• Ø 48 mm ceramic eco cartridge for flow and

temperature control

• Projection: 246 mm

• Spout swivel range: 120° (0°)

• Aerator type: HONEYCOMB® - improved lime

protection | Care® - for use in hospitals and other

care facilities | Laminar - crystal clear stream

0194 8283

€ 219,00

Chrome

valve(s) | Silencer(s)

DVGW: NW-6506BU0493, KIWA: K6116/06, ABP: PA-IX 29302/IA

HANSAMIX

Washbasin faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

Flow-rate at 3 bar: 12 l/min

Eco-flow at 3 bar: 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Integrated shut-off

• Ø 48 mm ceramic eco cartridge for flow and

temperature control

• Projection: 246 mm

• Spout swivel range: 120° (0°)

• Fixed spout

• Self-draining model

• Aerator type: CASCADE® - aerated stream

EAN 4015474271388

0194 9283

€ 230,00

Chrome

valve(s) | Silencer(s)

DVGW: NW-6506BU0493, KIWA: K6116/06, ABP: PA-IX 29302/IA

HANSAMIX

Washbasin faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

Flow-rate at 3 bar: 12 l/min

Eco-flow at 3 bar: 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Silencer(s)

• Ø 48 mm ceramic eco cartridge for flow and

• Projection: 300 mm

• Spout swivel range: 120° (0°)

• Swivel spout

• Casted construction

• Aerator type: HONEYCOMB® - improved lime

protection | Care® - for use in hospitals and other

care facilities | Laminar - crystal clear stream

EAN 4015474271395

0169 2183

€ 205,00

Chrome

temperature control

DVGW: NW-6506BU0493, KIWA: K6116/06, ABP: PA-IX 29302/IA

HANSAMIX

Washbasin faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

Flow-rate at 3 bar: 12 l/min

Eco-flow at 3 bar: 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Integrated shut-off

valve(s) | Silencer(s)

• Ø 48 mm ceramic eco cartridge for flow and

• Projection: 311 mm

• Spout swivel range: 120° (0°)

• Swivel spout

• Casted construction

• Aerator type: HONEYCOMB® - improved lime

protection | Care® - for use in hospitals and other

care facilities | Laminar - crystal clear stream

EAN 4015474271357

0169 2283

€ 231,00

Chrome

EAN 4015474271364

temperature control

DVGW: NW-6506BU0493, KIWA: K6116/06, ABP: PA-IX 29302/IA
