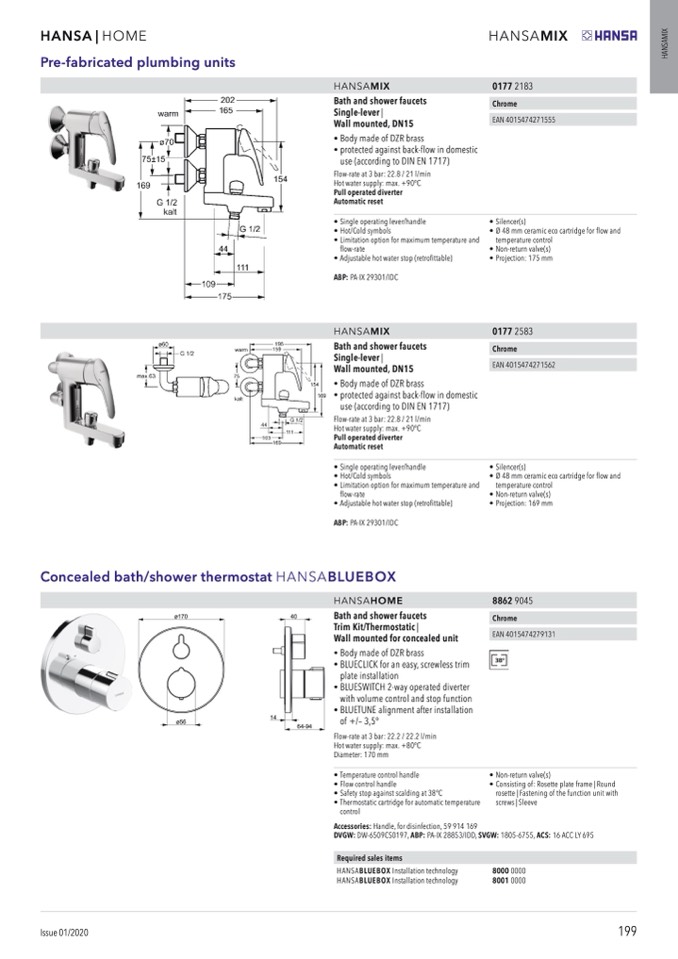

HANSA | HOME

HANSAMIX

Pre-fabricated plumbing units

HANSAMIX

Bath and shower faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 22.8 / 21 l/min

Hot water supply: max. +90°C

Pull operated diverter

Automatic reset

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

ABP: PA-IX 29301/IDC

HANSAMIX

Bath and shower faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 22.8 / 21 l/min

Hot water supply: max. +90°C

Pull operated diverter

Automatic reset

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

ABP: PA-IX 29301/IDC

Concealed bath/shower thermostat HANSABLUEBOX

HANSAHOME

01772183

Chrome

EAN 4015474271555

€ 271,00

• Silencer(s)

• Ø 48 mm ceramic eco cartridge for flow and

temperature control

• Non-return valve(s)

• Projection: 175 mm

01772583

Chrome

EAN 4015474271562

€ 304,00

• Silencer(s)

• Ø 48 mm ceramic eco cartridge for flow and

temperature control

• Non-return valve(s)

• Projection: 169 mm

88629045

Chrome

EAN 4015474279131

€ 446,00

ø170

40

Bath and shower faucets

Trim Kit/Thermostatic |

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUESWITCH 2-way operated diverter

with volume control and stop function

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 22.2 / 22.2 l/min

Hot water supply: max. +80°C

Diameter: 170 mm

• Temperature control handle

• Flow control handle

• Safety stop against scalding at 38°C

• Thermostatic cartridge for automatic temperature

control

Accessories: Handle, for disinfection, 59 914 169

DVGW: DW-6509CS0197, ABP: PA-IX 28853/IDD, SVGW: 1805-6755, ACS: 16 ACC LY 695

Required sales items

ø56

14

64-94

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

8000 0000

8001 0000

• Non-return valve(s)

• Consisting of: Rosette plate frame | Round

rosette | Fastening of the function unit with

screws | Sleeve

Issue 01/2020

199
