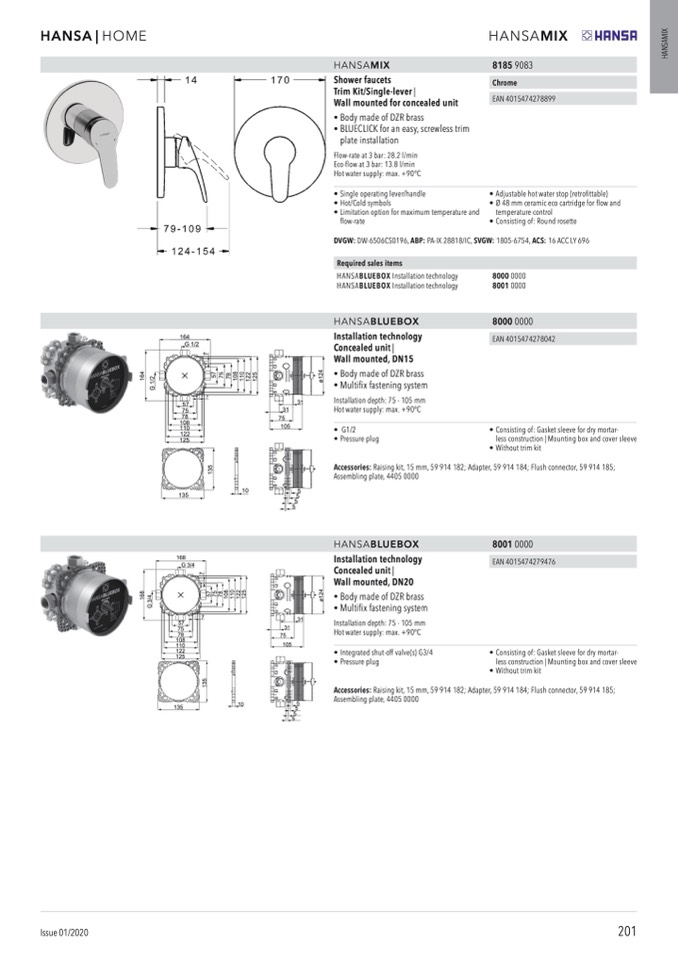

HANSA | HOME
HANSAMIX
81859083
Chrome
EAN 4015474278899
Issue 01/2020
201
164
G 1/2
7
57
75
78
108
110
122
125
135
168
G 3/4
57
7
75
78
108
110
122
125
135
Required sales items
HANSABLUEBOX Installation technology
HANSABLUEBOX Installation technology
HANSABLUEBOX
Installation technology
Concealed unit |
Wall mounted, DN15
• Body made of DZR brass
• Multifix fastening system
Installation depth: 75 - 105 mm
Hot water supply: max. +90°C
• G1/2
• Pressure plug
8000 0000
8001 0000
80000000
EAN 4015474278042
10
Accessories: Raising kit, 15 mm, 59 914 182; Adapter, 59 914 184; Flush connector, 59 914 185;
Assembling plate, 4405 0000
31
10
5
5
31
75
105
• Consisting of: Gasket sleeve for dry mortar-
less construction | Mounting box and cover sleeve
• Without trim kit
31
75
105
5
5
31
5
5
5
5
HANSABLUEBOX
Installation technology
Concealed unit |
Wall mounted, DN20
• Body made of DZR brass
• Multifix fastening system
Installation depth: 75 - 105 mm
Hot water supply: max. +90°C
• Integrated shut-off valve(s) G3/4
• Pressure plug
80010000
EAN 4015474279476
€ 110,00
HANSAMIX
Shower faucets
Trim Kit/Single-lever |
Wall mounted for concealed unit
• Body made of DZR brass
• BLUECLICK for an easy, screwless trim
plate installation
Flow-rate at 3 bar: 28.2 l/min
Eco-flow at 3 bar: 13.8 l/min
Hot water supply: max. +90°C
• Single operating lever/handle
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
DVGW: DW-6506CS0196, ABP: PA-IX 28818/IC, SVGW: 1805-6754, ACS: 16 ACC LY 696
€ 136,00
Accessories: Raising kit, 15 mm, 59 914 182; Adapter, 59 914 184; Flush connector, 59 914 185;
Assembling plate, 4405 0000
• Adjustable hot water stop (retrofittable)
• Ø 48 mm ceramic eco cartridge for flow and
€ 76,10
temperature control
• Consisting of: Round rosette
• Consisting of: Gasket sleeve for dry mortar-
less construction | Mounting box and cover sleeve
• Without trim kit
