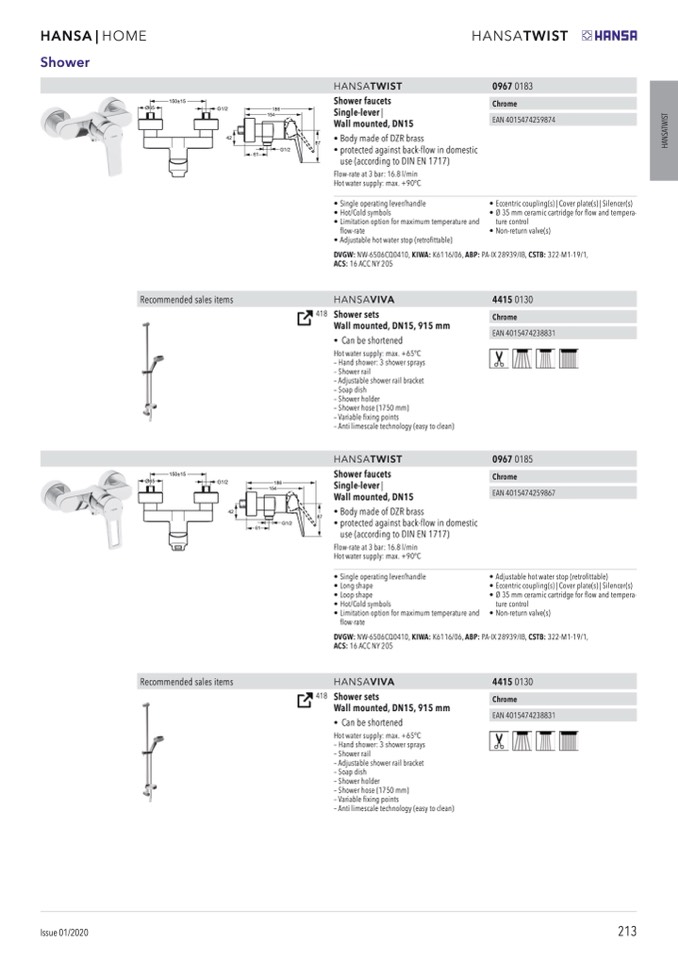

HANSA | HOME
Shower
HANSATWIST
HANSATWIST
0967 0183
€ 136,00
G1/2
42
61
186
154
Shower faucets
Single-lever |
Wall mounted, DN15
• Body made of DZR brass
• protected against back-flow in domestic
use (according to DIN EN 1717)
Flow-rate at 3 bar: 16.8 l/min
Hot water supply: max. +90°C
• Single operating lever/handle
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
• Adjustable hot water stop (retrofittable)
Chrome
87
G1/2
DVGW: NW-6506CQ0410, KIWA: K6116/06, ABP: PA-IX 28939/IB, CSTB: 322-M1-19/1,
ACS: 16 ACC NY 205
• Eccentric coupling(s) | Cover plate(s) | Silencer(s)
• Ø 35 mm ceramic cartridge for flow and tempera-
ture control
• Non-return valve(s)
418
Shower sets
Wall mounted, DN15, 915 mm
• Canbeshortened
Hot water supply: max. +65°C
– Hand shower: 3 shower sprays
– Shower rail
– Adjustable shower rail bracket
– Soap dish
– Shower holder
– Shower hose (1750 mm)
– Variable fixing points
– Anti limescale technology (easy to clean)
Shower faucets
Single-lever |
Wall mounted, DN15
• Body made of DZR brass
• protected against back-flow in domestic
use (according to DIN EN 1717)
Flow-rate at 3 bar: 16.8 l/min
Hot water supply: max. +90°C
• Single operating lever/handle
• Long shape
• Loop shape
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
G1/2
186
154
61
42
87
G1/2
418
DVGW: NW-6506CQ0410, KIWA: K6116/06, ABP: PA-IX 28939/IB, CSTB: 322-M1-19/1,
ACS: 16 ACC NY 205
Shower sets
Wall mounted, DN15, 915 mm
• Canbeshortened
Hot water supply: max. +65°C
– Hand shower: 3 shower sprays
– Shower rail
– Adjustable shower rail bracket
– Soap dish
– Shower holder
– Shower hose (1750 mm)
– Variable fixing points
– Anti limescale technology (easy to clean)
• Adjustable hot water stop (retrofittable)
• Eccentric coupling(s) | Cover plate(s) | Silencer(s)
• Ø 35 mm ceramic cartridge for flow and tempera-
ture control
• Non-return valve(s)
Issue 01/2020
213
150±15
Ø65
EAN 4015474259874
Recommended sales items
HANSAVIVA
4415 0130
€
150±15
Ø65
HANSATWIST
Chrome
EAN 4015474238831
0967 0185
€ 136,00
Chrome
EAN 4015474259867
Recommended sales items
HANSAVIVA
4415 0130
€
Chrome
EAN 4015474238831
H
A
N
S
A
T
W
I
S
T
