HANSA | HOME

Bath/Shower

HANSAFIT

65132101

Chrome

EAN 4015474273405

Issue 01/2020

221

200

175

G 1/2

150±15

285

257

400

82

±10

85

127

150±15

136

285

G 1/2

86

127

197

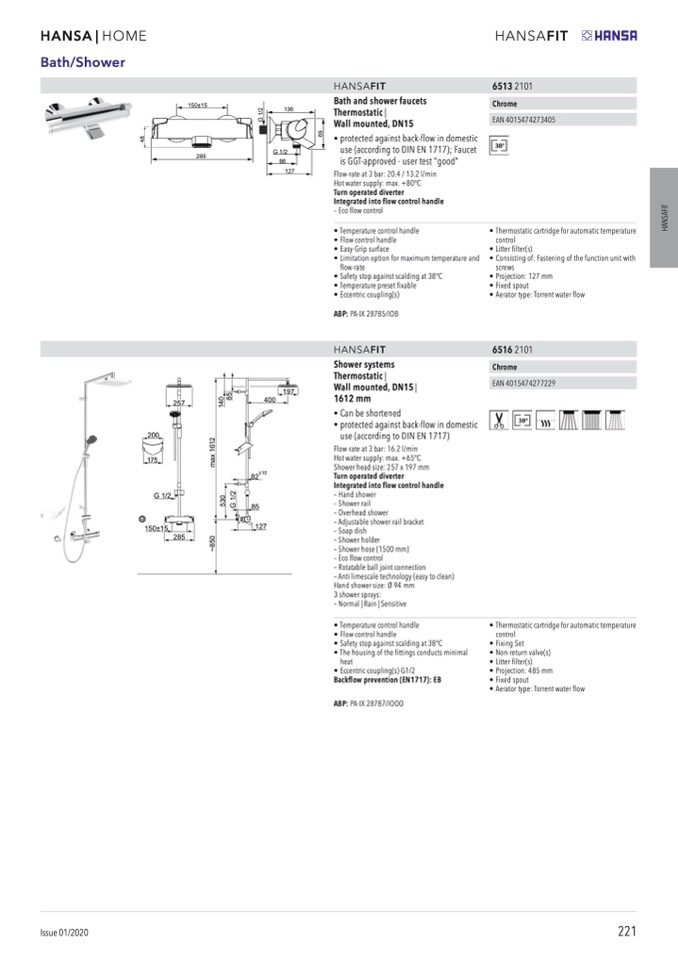

HANSAFIT

Bath and shower faucets

Thermostatic |

Wall mounted, DN15

• protected against back-flow in domestic

use (according to DIN EN 1717); Faucet

is GGT-approved - user test "good"

Flow-rate at 3 bar: 20.4 / 13.2 l/min

Hot water supply: max. +80°C

Turn operated diverter

Integrated into flow control handle

– Eco flow control

• Temperature control handle

• Flow control handle

• Easy-Grip surface

• Limitation option for maximum temperature and

flow-rate

• Safety stop against scalding at 38°C

• Temperature preset fixable

• Eccentric coupling(s)

ABP: PA-IX 28785/IOB

HANSAFIT

Shower systems

Thermostatic |

Wall mounted, DN15 |

1612 mm

• Can be shortened

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 16.2 l/min

Hot water supply: max. +65°C

Shower head size: 257 x 197 mm

Turn operated diverter

Integrated into flow control handle

– Hand shower

– Shower rail

– Overhead shower

– Adjustable shower rail bracket

– Soap dish

– Shower holder

– Shower hose (1500 mm)

– Eco flow control

– Rotatable ball joint connection

– Anti limescale technology (easy to clean)

Hand shower size: Ø 94 mm

3 shower sprays:

– Normal | Rain | Sensitive

• Temperature control handle

• Flow control handle

• Safety stop against scalding at 38°C

• The housing of the fittings conducts minimal

heat

• Eccentric coupling(s) G1/2

Backflow prevention (EN1717): EB

ABP: PA-IX 28787/IOOO

€ 236,00

• Thermostatic cartridge for automatic temperature

control

• Litter filter(s)

• Consisting of: Fastening of the function unit with

screws

• Projection: 127 mm

• Fixed spout

• Aerator type: Torrent water flow

65162101

Chrome

EAN 4015474277229

€ 720,00

~

8

5

0

m

a

x

1

6

1

2

5

3

0

G

1

/

2

1

4

0

8

5

H

A

N

S

A

F

I

T

4

8

6

9

G

1

/

2

• Thermostatic cartridge for automatic temperature

control

• Fixing Set

• Non-return valve(s)

• Litter filter(s)

• Projection: 485 mm

• Fixed spout

• Aerator type: Torrent water flow
