222

Issue 01/2020

HANSAFIT

HANSA | HOME

200

175

150±3

257

G 1/2

285

123

150±15

G 1/2

285

116

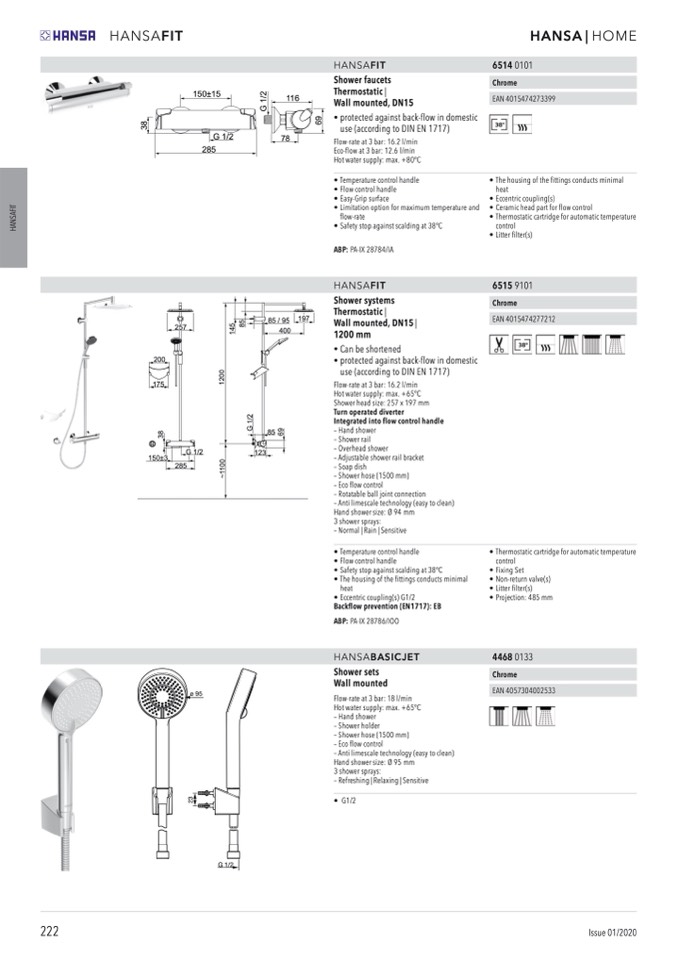

HANSAFIT

Shower faucets

Thermostatic |

Wall mounted, DN15

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 16.2 l/min

Eco-flow at 3 bar: 12.6 l/min

Hot water supply: max. +80°C

ø 95

G 1/2

85 / 95

400

85

197

78

65140101

Chrome

EAN 4015474273399

• Temperature control handle

• Flow control handle

heat

€ 188,00

• Easy-Grip surface

• Limitation option for maximum temperature and

flow-rate

• Safety stop against scalding at 38°C

ABP: PA-IX 28784/IA

HANSAFIT

Shower systems

Thermostatic |

Wall mounted, DN15 |

1200 mm

• Can be shortened

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 16.2 l/min

Hot water supply: max. +65°C

Shower head size: 257 x 197 mm

Turn operated diverter

Integrated into flow control handle

– Hand shower

– Shower rail

– Overhead shower

– Adjustable shower rail bracket

– Soap dish

– Shower hose (1500 mm)

– Eco flow control

– Rotatable ball joint connection

– Anti limescale technology (easy to clean)

Hand shower size: Ø 94 mm

3 shower sprays:

– Normal | Rain | Sensitive

• Temperature control handle

• Flow control handle

• Safety stop against scalding at 38°C

• The housing of the fittings conducts minimal

heat

• Eccentric coupling(s) G1/2

Backflow prevention (EN1717): EB

ABP: PA-IX 28786/IOO

HANSABASICJET

Shower sets

Wall mounted

Flow-rate at 3 bar: 18 l/min

Hot water supply: max. +65°C

– Hand shower

– Shower holder

– Shower hose (1500 mm)

– Eco flow control

– Anti limescale technology (easy to clean)

Hand shower size: Ø 95 mm

3 shower sprays:

– Refreshing | Relaxing | Sensitive

• G1/2

• Eccentric coupling(s)

• Ceramic head part for flow control

• Thermostatic cartridge for automatic temperature

• The housing of the fittings conducts minimal

control

• Litter filter(s)

65159101

Chrome

EAN 4015474277212

€ 643,00

• Thermostatic cartridge for automatic temperature

control

• Fixing Set

• Non-return valve(s)

• Litter filter(s)

• Projection: 485 mm

44680133

Chrome

EAN 4057304002533

€ 35,20
