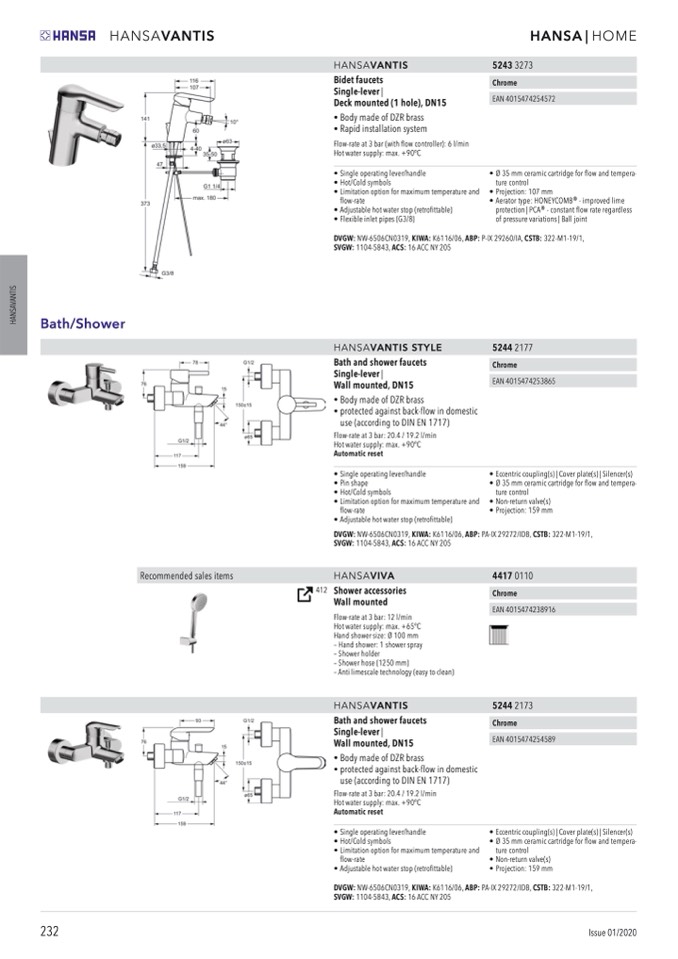

HANSAVANTIS

5243 3273

Chrome

€ 142,00

EAN 4015474254572

HANSAVANTIS STYLE

5244 2177

€ 157,00

Chrome

Recommended sales items

HANSAVIVA

EAN 4015474253865

4417 0110

€

Chrome

HANSAVANTIS

EAN 4015474238916

5244 2173

€ 157,00

Chrome

EAN 4015474254589

HANSAVANTIS

HANSA | HOME

Bath/Shower

Bidet faucets

Single-lever |

Deck mounted (1 hole), DN15

• Body made of DZR brass

• Rapid installation system

Flow-rate at 3 bar (with flow controller): 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Flexible inlet pipes (G3/8)

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Projection: 107 mm

• Aerator type: HONEYCOMB® - improved lime

protection | PCA® - constant flow rate regardless

of pressure variations | Ball joint

DVGW: NW-6506CN0319, KIWA: K6116/06, ABP: P-IX 29260/IA, CSTB: 322-M1-19/1,

SVGW: 1104-5843, ACS: 16 ACC NY 205

Bath and shower faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 20.4 / 19.2 l/min

Hot water supply: max. +90°C

Automatic reset

• Single operating lever/handle

• Pin shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Cover plate(s) | Silencer(s)

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Non-return valve(s)

• Projection: 159 mm

DVGW: NW-6506CN0319, KIWA: K6116/06, ABP: PA-IX 29272/IDB, CSTB: 322-M1-19/1,

SVGW: 1104-5843, ACS: 16 ACC NY 205

412

Shower accessories

Wall mounted

Flow-rate at 3 bar: 12 l/min

Hot water supply: max. +65°C

Hand shower size: Ø 100 mm

– Hand shower: 1 shower spray

– Shower holder

– Shower hose (1250 mm)

– Anti limescale technology (easy to clean)

Bath and shower faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 20.4 / 19.2 l/min

Hot water supply: max. +90°C

Automatic reset

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

DVGW: NW-6506CN0319, KIWA: K6116/06, ABP: PA-IX 29272/IDB, CSTB: 322-M1-19/1,

SVGW: 1104-5843, ACS: 16 ACC NY 205

• Eccentric coupling(s) | Cover plate(s) | Silencer(s)

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Non-return valve(s)

• Projection: 159 mm

232

Issue 01/2020
