Recommended sales items

HANSAVANTIS

5245 0173

€ 131,00

Chrome

EAN 4015474254596

HANSAVIVA

4415 0130

€

HANSAVANTIS STYLE

Chrome

EAN 4015474238831

8261 9077

€ 117,00

Chrome

EAN 4015474279261

Required sales items

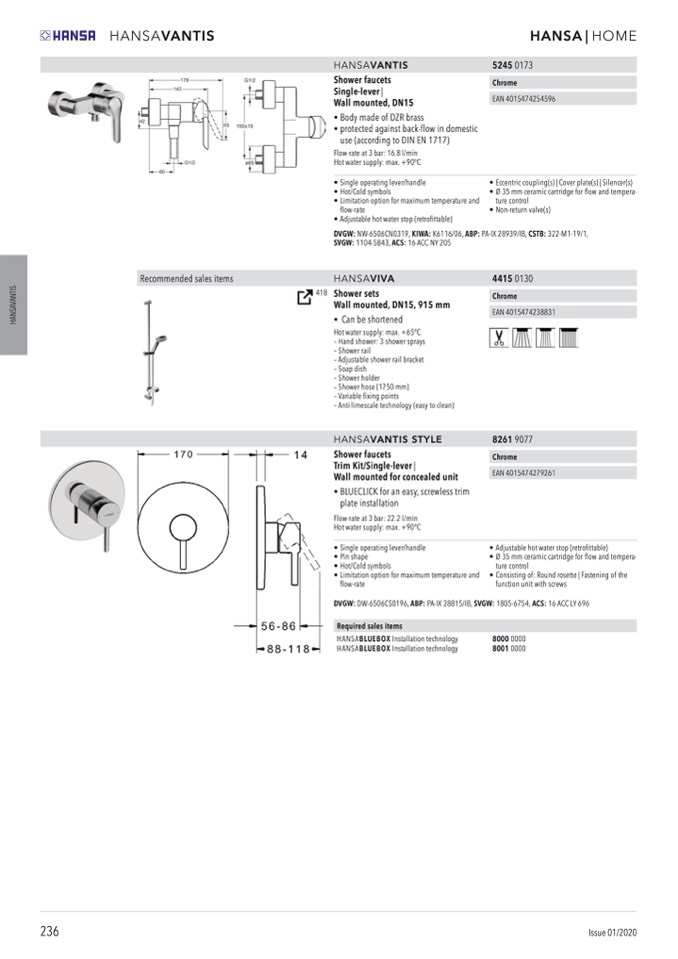

HANSAVANTIS

HANSA | HOME

Shower faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 16.8 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Cover plate(s) | Silencer(s)

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Non-return valve(s)

DVGW: NW-6506CN0319, KIWA: K6116/06, ABP: PA-IX 28939/IB, CSTB: 322-M1-19/1,

SVGW: 1104-5843, ACS: 16 ACC NY 205

418

Shower sets

Wall mounted, DN15, 915 mm

• Canbeshortened

Hot water supply: max. +65°C

– Hand shower: 3 shower sprays

– Shower rail

– Adjustable shower rail bracket

– Soap dish

– Shower holder

– Shower hose (1750 mm)

– Variable fixing points

– Anti limescale technology (easy to clean)

Shower faucets

Trim Kit/Single-lever |

Wall mounted for concealed unit

• BLUECLICK for an easy, screwless trim

plate installation

Flow-rate at 3 bar: 22.2 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Pin shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

DVGW: DW-6506CS0196, ABP: PA-IX 28815/IB, SVGW: 1805-6754, ACS: 16 ACC LY 696

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

8000 0000

8001 0000

• Adjustable hot water stop (retrofittable)

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Consisting of: Round rosette | Fastening of the

function unit with screws

236

Issue 01/2020
