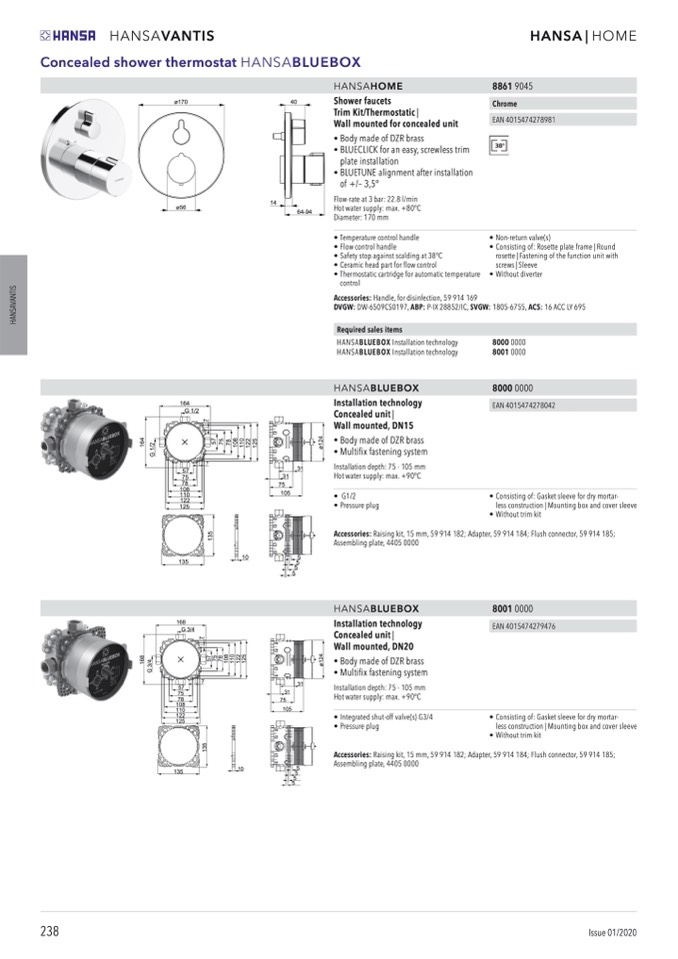

HANSAVANTIS
Concealed shower thermostat HANSABLUEBOX
HANSA | HOME
ø170
ø56
40
14
64-94
HANSAHOME
Shower faucets
Trim Kit/Thermostatic |
Wall mounted for concealed unit
• Body made of DZR brass
• BLUECLICK for an easy, screwless trim
plate installation
• BLUETUNE alignment after installation
of +/– 3,5o
Flow-rate at 3 bar: 22.8 l/min
Hot water supply: max. +80°C
Diameter: 170 mm
• Temperature control handle
• Flow control handle
• Safety stop against scalding at 38°C
• Ceramic head part for flow control
• Thermostatic cartridge for automatic temperature
control
Accessories: Handle, for disinfection, 59 914 169
88619045
Chrome
EAN 4015474278981
€ 440,00
DVGW: DW-6509CS0197, ABP: P-IX 28852/IC, SVGW: 1805-6755, ACS: 16 ACC LY 695
Required sales items
• Non-return valve(s)
• Consisting of: Rosette plate frame | Round
rosette | Fastening of the function unit with
screws | Sleeve
• Without diverter
1
3
5
7
7
1
6
8
G
3
/
4
1
6
4
G
1
/
2
5
7
7
5
7
8
1
0
8
1
1
0
1
2
2
1
2
5
1
3
5
5
7
7
5
7
8
1
0
8
ø
1
2
4
ø
1
2
4
1
1
0
1
2
2
1
2
5
H
A
N
S
A
V
A
N
T
I
S
238
Issue 01/2020
164
G 1/2
7
57
75
78
108
110
122
125
135
168
G 3/4
57
7
75
78
108
110
122
125
135
31
10
5
5
10
Accessories: Raising kit, 15 mm, 59 914 182; Adapter, 59 914 184; Flush connector, 59 914 185;
Assembling plate, 4405 0000
31
75
105
• Consisting of: Gasket sleeve for dry mortar-
less construction | Mounting box and cover sleeve
• Without trim kit
31
75
105
5
5
31
5
5
5
5
HANSABLUEBOX
Installation technology
Concealed unit |
Wall mounted, DN20
• Body made of DZR brass
• Multifix fastening system
Installation depth: 75 - 105 mm
Hot water supply: max. +90°C
• Integrated shut-off valve(s) G3/4
• Pressure plug
80010000
EAN 4015474279476
€ 110,00
HANSABLUEBOX Installation technology
HANSABLUEBOX Installation technology
HANSABLUEBOX
Installation technology
Concealed unit |
Wall mounted, DN15
• Body made of DZR brass
• Multifix fastening system
Installation depth: 75 - 105 mm
Hot water supply: max. +90°C
• G1/2
• Pressure plug
8000 0000
8001 0000
80000000
EAN 4015474278042
€ 76,10
Accessories: Raising kit, 15 mm, 59 914 182; Adapter, 59 914 184; Flush connector, 59 914 185;
Assembling plate, 4405 0000
• Consisting of: Gasket sleeve for dry mortar-
less construction | Mounting box and cover sleeve
• Without trim kit
