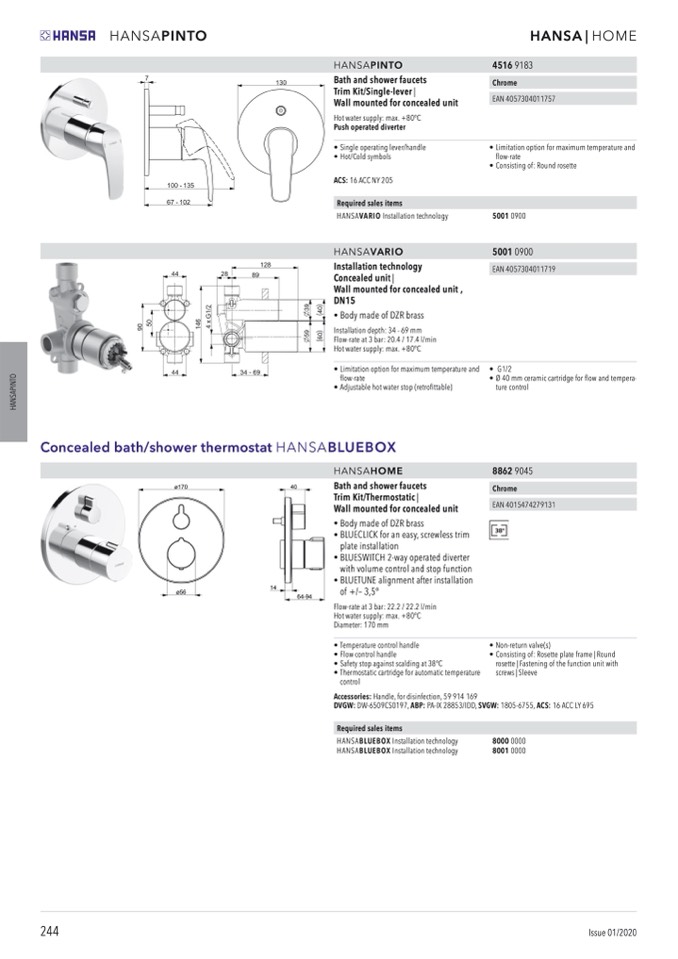

244

Issue 01/2020

HANSAPINTO

HANSA | HOME

HANSAPINTO

Bath and shower faucets

Trim Kit/Single-lever |

Wall mounted for concealed unit

Hot water supply: max. +80°C

Push operated diverter

• Single operating lever/handle

• Hot/Cold symbols

ACS: 16 ACC NY 205

Required sales items

HANSAVARIO Installation technology

HANSAVARIO

Installation technology

Concealed unit |

Wall mounted for concealed unit ,

DN15

• Body made of DZR brass

Installation depth: 34 - 69 mm

Flow-rate at 3 bar: 20.4 / 17.4 l/min

Hot water supply: max. +80°C

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

Concealed bath/shower thermostat HANSABLUEBOX

HANSAHOME

45169183

Chrome

EAN 4057304011757

€ 48,00

ø170

40

ø56

14

64-94

Bath and shower faucets

Trim Kit/Thermostatic |

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUESWITCH 2-way operated diverter

with volume control and stop function

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 22.2 / 22.2 l/min

Hot water supply: max. +80°C

Diameter: 170 mm

• Temperature control handle

• Flow control handle

• Safety stop against scalding at 38°C

• Thermostatic cartridge for automatic temperature

control

Accessories: Handle, for disinfection, 59 914 169

DVGW: DW-6509CS0197, ABP: PA-IX 28853/IDD, SVGW: 1805-6755, ACS: 16 ACC LY 695

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

8000 0000

8001 0000

• Limitation option for maximum temperature and

flow-rate

• Consisting of: Round rosette

5001 0900

50010900

EAN 4057304011719

€ 80,10

• G1/2

• Ø 40 mm ceramic cartridge for flow and tempera-

ture control

88629045

Chrome

EAN 4015474279131

€ 446,00

H

A

N

S

A

P

I

N

T

O

• Non-return valve(s)

• Consisting of: Rosette plate frame | Round

rosette | Fastening of the function unit with

screws | Sleeve
