HANSA | HOME

cross-series

HANSA | HOME cross-series

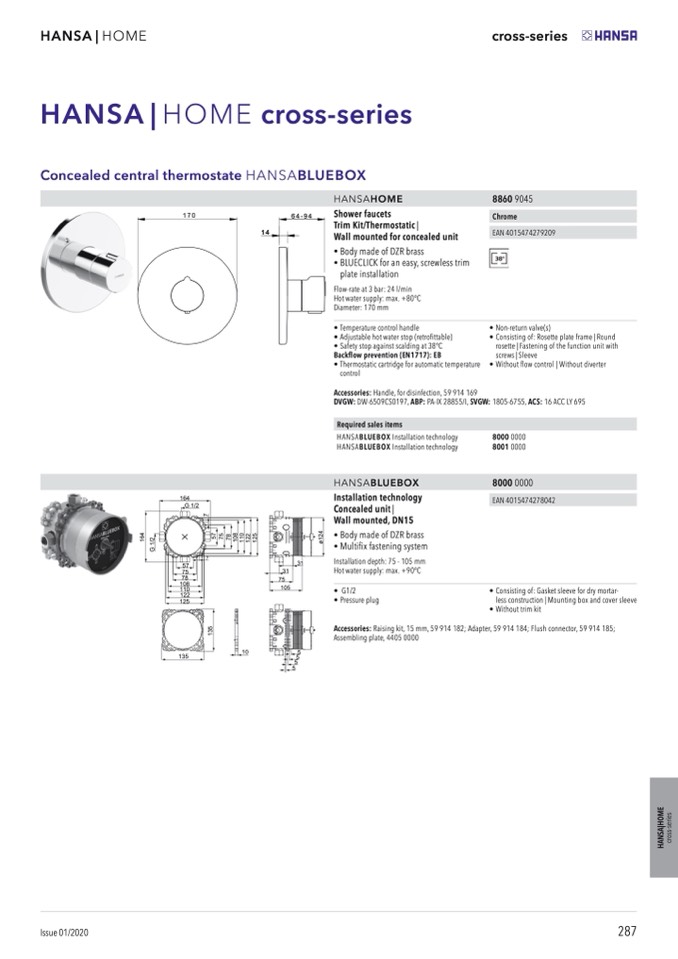

Concealed central thermostate HANSABLUEBOX

Issue 01/2020

287

170

64-94

1 4

HANSAHOME

Shower faucets

Trim Kit/Thermostatic |

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

Flow-rate at 3 bar: 24 l/min

Hot water supply: max. +80°C

Diameter: 170 mm

• Temperature control handle

• Adjustable hot water stop (retrofittable)

• Safety stop against scalding at 38°C

Backflow prevention (EN1717): EB

• Thermostatic cartridge for automatic temperature

control

Accessories: Handle, for disinfection, 59 914 169

DVGW: DW-6509CS0197, ABP: PA-IX 28855/I, SVGW: 1805-6755, ACS: 16 ACC LY 695

Required sales items

164

G 1/2

7

57

75

78

108

110

122

125

135

31

10

5

5

5

5

31

75

105

• Consisting of: Gasket sleeve for dry mortar-

less construction | Mounting box and cover sleeve

• Without trim kit

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

HANSABLUEBOX

Installation technology

Concealed unit |

Wall mounted, DN15

• Body made of DZR brass

• Multifix fastening system

Installation depth: 75 - 105 mm

Hot water supply: max. +90°C

• G1/2

• Pressure plug

8000 0000

8001 0000

80000000

EAN 4015474278042

€ 76,10

Accessories: Raising kit, 15 mm, 59 914 182; Adapter, 59 914 184; Flush connector, 59 914 185;

Assembling plate, 4405 0000

88609045

Chrome

EAN 4015474279209

€ 343,00

• Non-return valve(s)

• Consisting of: Rosette plate frame | Round

rosette | Fastening of the function unit with

screws | Sleeve

• Without flow control | Without diverter
