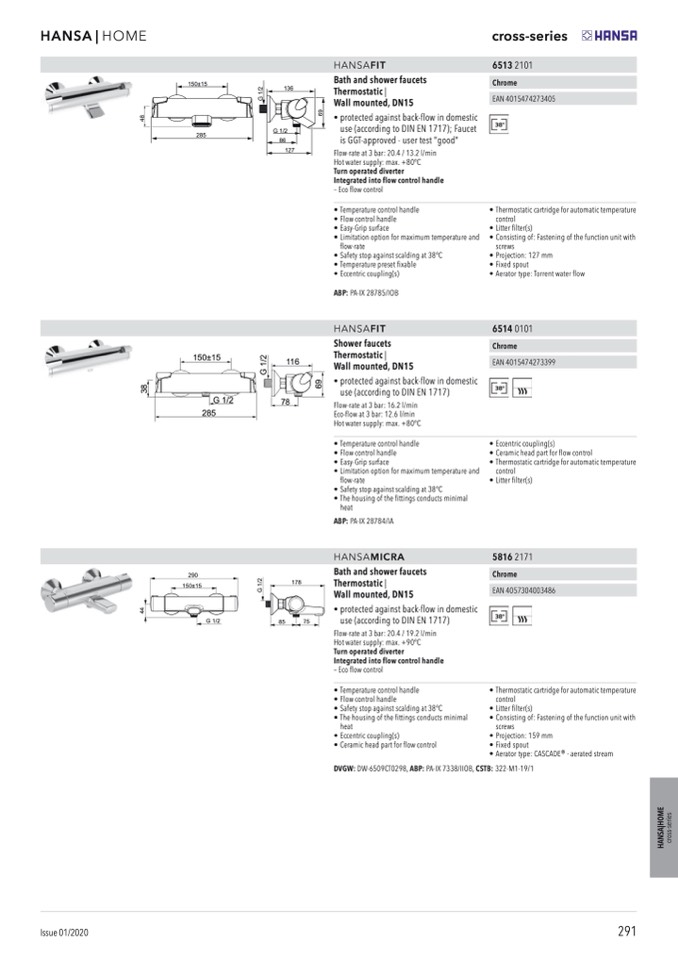

HANSA | HOME

cross-series

150±15

136

285

G 1/2

86

127

HANSAFIT

Bath and shower faucets

Thermostatic |

Wall mounted, DN15

• protected against back-flow in domestic

use (according to DIN EN 1717); Faucet

is GGT-approved - user test "good"

Flow-rate at 3 bar: 20.4 / 13.2 l/min

Hot water supply: max. +80°C

Turn operated diverter

Integrated into flow control handle

– Eco flow control

• Temperature control handle

• Flow control handle

• Easy-Grip surface

• Limitation option for maximum temperature and

flow-rate

• Safety stop against scalding at 38°C

• Temperature preset fixable

• Eccentric coupling(s)

ABP: PA-IX 28785/IOB

HANSAFIT

Shower faucets

Thermostatic |

Wall mounted, DN15

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 16.2 l/min

Eco-flow at 3 bar: 12.6 l/min

Hot water supply: max. +80°C

• Temperature control handle

• Flow control handle

• Easy-Grip surface

• Limitation option for maximum temperature and

flow-rate

• Safety stop against scalding at 38°C

• The housing of the fittings conducts minimal

heat

ABP: PA-IX 28784/IA

HANSAMICRA

Bath and shower faucets

Thermostatic |

Wall mounted, DN15

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 20.4 / 19.2 l/min

Hot water supply: max. +90°C

Turn operated diverter

Integrated into flow control handle

– Eco flow control

• Temperature control handle

• Flow control handle

• Safety stop against scalding at 38°C

• The housing of the fittings conducts minimal

heat

• Eccentric coupling(s)

• Ceramic head part for flow control

65132101

Chrome

EAN 4015474273405

€ 236,00

• Thermostatic cartridge for automatic temperature

control

• Litter filter(s)

• Consisting of: Fastening of the function unit with

screws

• Projection: 127 mm

• Fixed spout

• Aerator type: Torrent water flow

65140101

Chrome

EAN 4015474273399

€ 188,00

H

A

N

S

A

|

H

O

M

E

c

r

o

s

s

-

s

e

r

i

e

s

4

4

3

8

4

8

G

1

/

2

G

1

/

2

G

1

/

2

6

9

6

9

Issue 01/2020

291

290

150±15

178

150±15

116

G 1/2

285

78

G 1/2

85

75

DVGW: DW-6509CT0298, ABP: PA-IX 7338/IIOB, CSTB: 322-M1-19/1

• Eccentric coupling(s)

• Ceramic head part for flow control

• Thermostatic cartridge for automatic temperature

control

• Litter filter(s)

58162171

Chrome

EAN 4057304003486

€ 170,00

• Thermostatic cartridge for automatic temperature

control

• Litter filter(s)

• Consisting of: Fastening of the function unit with

screws

• Projection: 159 mm

• Fixed spout

• Aerator type: CASCADE® - aerated stream
