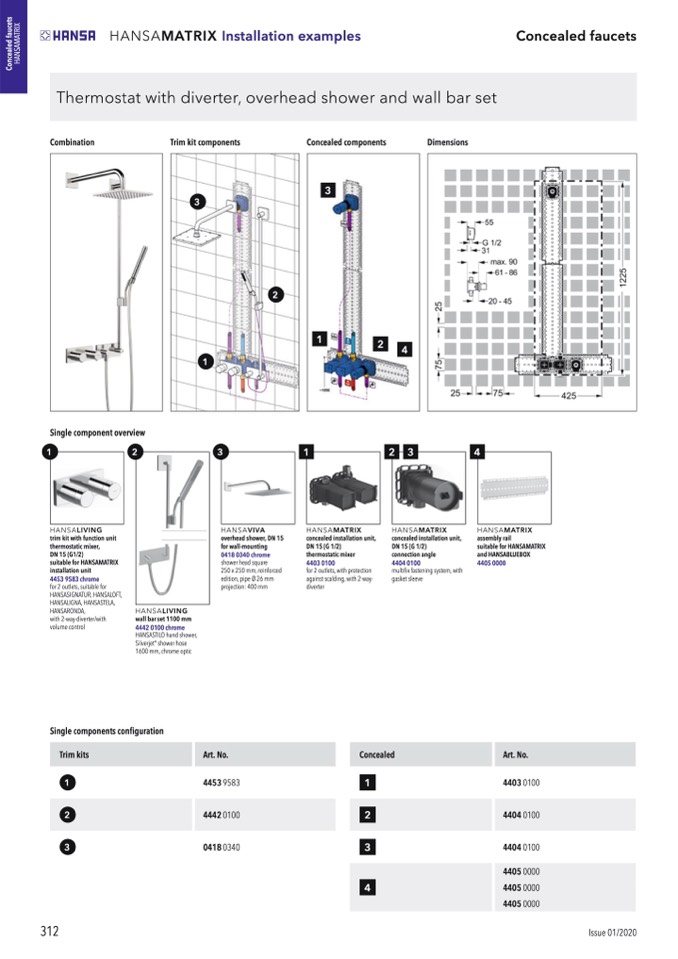

HANSAMATRIX Installation examples

Concealed faucets

Thermostat with diverter, overhead shower and wall bar set

Combination

Trim kit components

Single component overview

1

2

3

Concealed components

Dimensions

3

2

1

3

1

2

4

1

2

3

4

HANSALIVING

trim kit with function unit

thermostatic mixer,

DN 15 (G1/2)

suitable for HANSAMATRIX

installation unit

4453 9583 chrome

for 2 outlets, suitable for

HANSASIGNATUR, HANSALOFT,

HANSALIGNA, HANSASTELA,

HANSARONDA,

with 2-way-diverter/with

volume control

HANSAVIVA

overhead shower, DN 15

for wall-mounting

0418 0340 chrome

shower head square

250 x 250 mm, reinforced

edition, pipe Ø 26 mm

projection: 400 mm

HANSAMATRIX

concealed installation unit,

DN 15 (G 1/2)

thermostatic mixer

4403 0100

for 2 outlets, with protection

against scalding, with 2-way-

diverter

HANSAMATRIX

concealed installation unit,

DN 15 (G 1/2)

connection angle

4404 0100

multifix fastening system, with

gasket sleeve

HANSAMATRIX

assembly rail

suitable for HANSAMATRIX

and HANSABLUEBOX

4405 0000

Single components configuration

HANSALIVING

wall bar set 1100 mm

4442 0100 chrome

HANSASTILO hand shower,

Silverjet

®

shower hose

1600 mm, chrome optic

Concealed

Art. No.

4403 0100

2

4404 0100

4404 0100

4405 0000

4

4405 0000

4405 0000

Trim kits

1

1

3

04180340

3

2

Art. No.

4453 9583

4442 0100

312

Issue 01/2020
