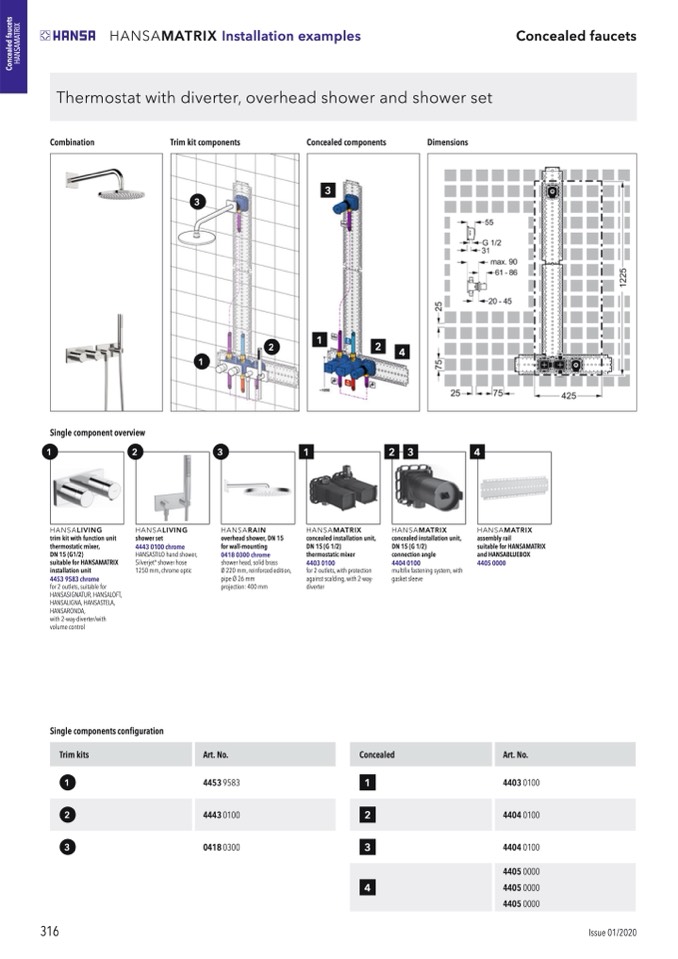

HANSAMATRIX Installation examples

Concealed faucets

Thermostat with diverter, overhead shower and shower set

Combination

Trim kit components

Single component overview

1

2

3

Concealed components

Dimensions

3

2

1

3

1

2

4

1

2

3

4

HANSALIVING

trim kit with function unit

thermostatic mixer,

DN 15 (G1/2)

suitable for HANSAMATRIX

installation unit

4453 9583 chrome

for 2 outlets, suitable for

HANSASIGNATUR, HANSALOFT,

HANSALIGNA, HANSASTELA,

HANSARONDA,

with 2-way-diverter/with

volume control

HANSALIVING

shower set

4443 0100 chrome

HANSASTILO hand shower,

Silverjet

®

shower hose

1250 mm, chrome optic

HANSARAIN

overhead shower, DN 15

for wall-mounting

0418 0300 chrome

shower head, solid brass

Ø 220 mm, reinforced edition,

pipe Ø 26 mm

projection: 400 mm

HANSAMATRIX

concealed installation unit,

DN 15 (G 1/2)

thermostatic mixer

4403 0100

for 2 outlets, with protection

against scalding, with 2-way-

diverter

HANSAMATRIX

concealed installation unit,

DN 15 (G 1/2)

connection angle

4404 0100

multifix fastening system, with

gasket sleeve

HANSAMATRIX

assembly rail

suitable for HANSAMATRIX

and HANSABLUEBOX

4405 0000

Single components configuration

Concealed

Art. No.

4403 0100

2

4404 0100

4404 0100

4405 0000

4

4405 0000

4405 0000

Trim kits

1

1

3

04180300

3

2

Art. No.

4453 9583

4443 0100

316

Issue 01/2020
