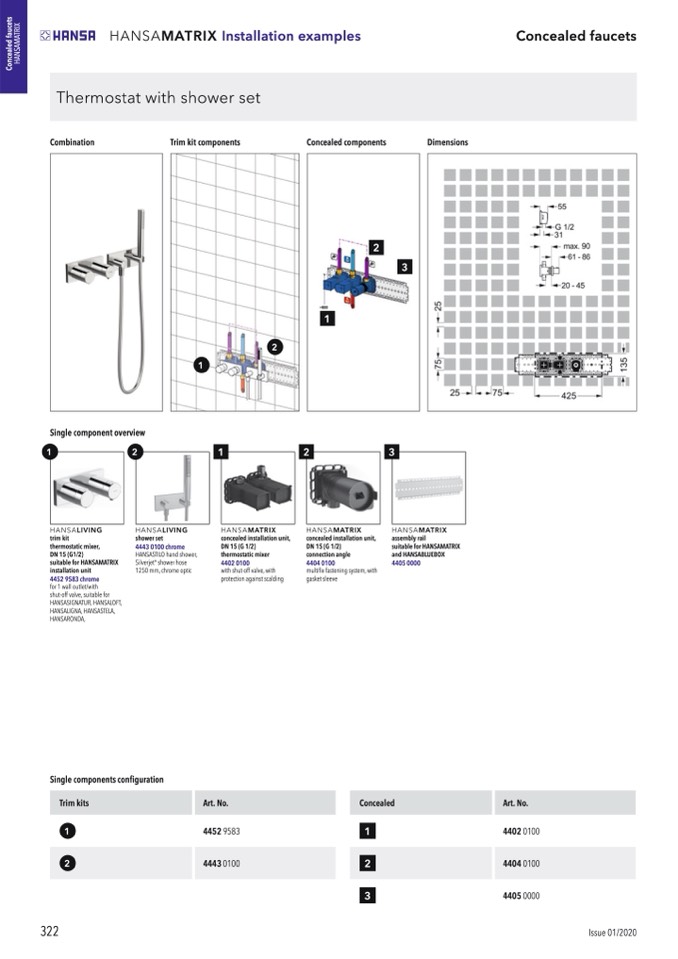

HANSAMATRIX Installation examples

Concealed faucets

Thermostat with shower set

Combination

Trim kit components

Concealed components

Dimensions

2

1

2

3

1

Single component overview

1

2

322

Issue 01/2020

HANSALIVING

trim kit

thermostatic mixer,

DN 15 (G1/2)

suitable for HANSAMATRIX

installation unit

4452 9583 chrome

for 1 wall outlet/with

shut-off valve, suitable for

HANSASIGNATUR, HANSALOFT,

HANSALIGNA, HANSASTELA,

HANSARONDA,

HANSALIVING

shower set

4443 0100 chrome

HANSASTILO hand shower,

Silverjet

®

shower hose

1250 mm, chrome optic

HANSAMATRIX

concealed installation unit,

DN 15 (G 1/2)

thermostatic mixer

4402 0100

with shut-off valve, with

protection against scalding

HANSAMATRIX

concealed installation unit,

DN 15 (G 1/2)

connection angle

4404 0100

multifix fastening system, with

gasket sleeve

HANSAMATRIX

assembly rail

suitable for HANSAMATRIX

and HANSABLUEBOX

4405 0000

Single components configuration

Trim kits

Art. No.

1

1

1

4452 9583

2

3

2

4443 0100

Concealed

2

Art. No.

4402 0100

4404 0100

3

4405 0000
