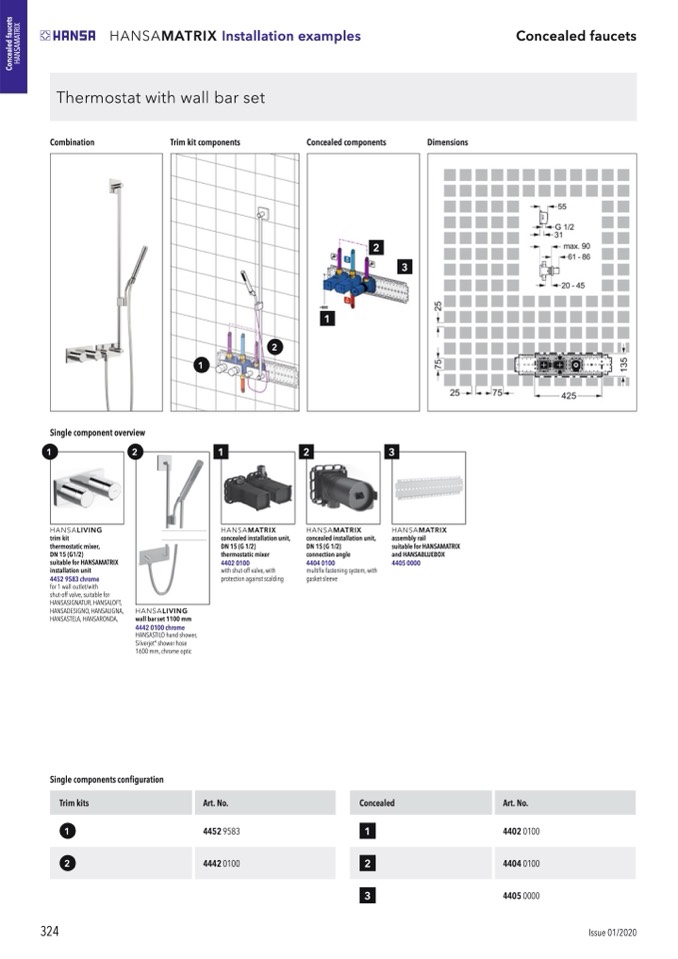

HANSAMATRIX Installation examples

Concealed faucets

Thermostat with wall bar set

Combination

Single component overview

1

2

HANSALIVING

trim kit

thermostatic mixer,

DN 15 (G1/2)

suitable for HANSAMATRIX

installation unit

4452 9583 chrome

for 1 wall outlet/with

shut-off valve, suitable for

HANSASIGNATUR, HANSALOFT,

HANSADESIGNO,HANSALIGNA,

HANSALIVING

HANSASTELA, HANSARONDA,

wall bar set 1100 mm

4442 0100 chrome

HANSASTILO hand shower,

Silverjet

®

shower hose

1600 mm, chrome optic

Single components configuration

Trim kit components

Concealed components

Dimensions

2

1

2

3

1

324

Issue 01/2020

Trim kits

Art. No.

1

HANSAMATRIX

concealed installation unit,

DN 15 (G 1/2)

thermostatic mixer

4402 0100

with shut-off valve, with

protection against scalding

HANSAMATRIX

concealed installation unit,

DN 15 (G 1/2)

connection angle

4404 0100

multifix fastening system, with

gasket sleeve

HANSAMATRIX

assembly rail

suitable for HANSAMATRIX

and HANSABLUEBOX

4405 0000

1

1

4452 9583

2

3

2

4442 0100

Concealed

2

Art. No.

4402 0100

4404 0100

3

4405 0000

C

o

n

c

e

a

l

e

d

f

a

u

c

e

t

s

H

A

N

S

A

M

A

T

R

I

X
