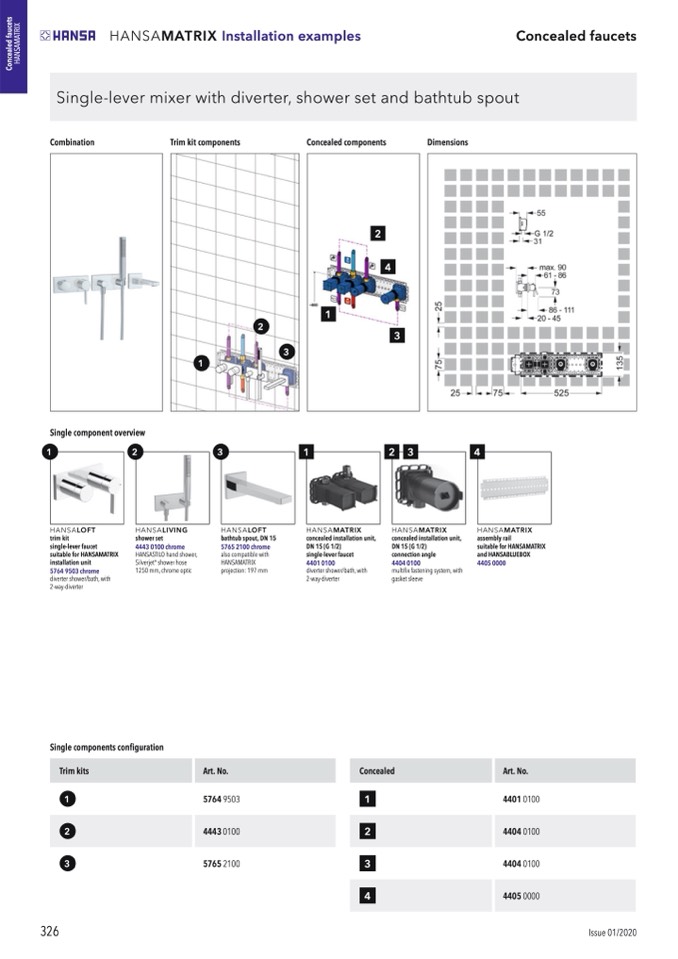

HANSAMATRIX Installation examples

Concealed faucets

Single-lever mixer with diverter, shower set and bathtub spout

Combination

Trim kit components

Single component overview

1

2

3

Concealed components

Dimensions

2

3

1

1

2

4

3

1

2

3

4

HANSALOFT

trim kit

single-lever faucet

suitable for HANSAMATRIX

installation unit

5764 9503 chrome

diverter shower/bath, with

2-way-diverter

HANSALIVING

shower set

4443 0100 chrome

HANSASTILO hand shower,

Silverjet

®

shower hose

1250 mm, chrome optic

HANSALOFT

bathtub spout, DN 15

5765 2100 chrome

also compatible with

HANSAMATRIX

projection: 197 mm

HANSAMATRIX

concealed installation unit,

DN 15 (G 1/2)

single-lever faucet

4401 0100

diverter shower/bath, with

2-way-diverter

HANSAMATRIX

concealed installation unit,

DN 15 (G 1/2)

connection angle

4404 0100

multifix fastening system, with

gasket sleeve

HANSAMATRIX

assembly rail

suitable for HANSAMATRIX

and HANSABLUEBOX

4405 0000

Single components configuration

Concealed

Art. No.

4401 0100

2

4404 0100

4404 0100

4

4405 0000

Trim kits

1

1

3

57652100

3

2

Art. No.

5764 9503

4443 0100

326

Issue 01/2020
