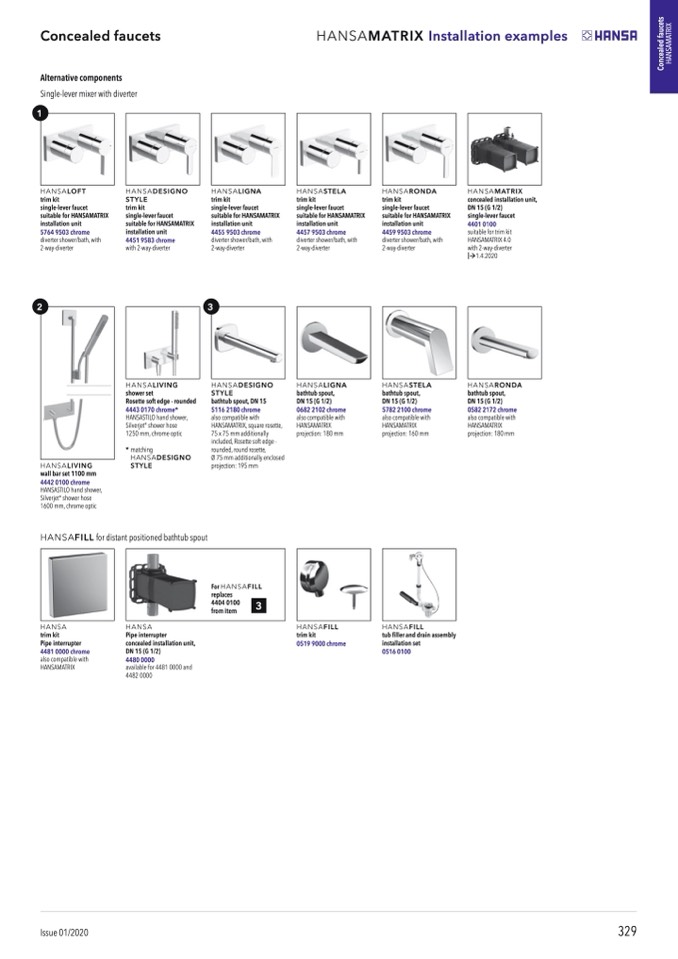

Concealed faucets

HANSAMATRIX Installation examples

Alternative components

Single-lever mixer with diverter

1

HANSALOFT

trim kit

single-lever faucet

suitable for HANSAMATRIX

installation unit

5764 9503 chrome

diverter shower/bath, with

2-way-diverter

HANSADESIGNO

STYLE

trim kit

single-lever faucet

suitable for HANSAMATRIX

installation unit

4451 9583 chrome

with 2-way-diverter

HANSALIGNA

trim kit

single-lever faucet

suitable for HANSAMATRIX

installation unit

4455 9503 chrome

diverter shower/bath, with

2-way-diverter

HANSASTELA

trim kit

single-lever faucet

suitable for HANSAMATRIX

installation unit

4457 9503 chrome

diverter shower/bath, with

2-way-diverter

HANSALIGNA

bathtub spout,

DN 15 (G 1/2)

0682 2102 chrome

also compatible with

HANSAMATRIX

projection: 180 mm

HANSARONDA

trim kit

single-lever faucet

suitable for HANSAMATRIX

installation unit

4459 9503 chrome

diverter shower/bath, with

2-way-diverter

HANSASTELA

bathtub spout,

DN 15 (G 1/2)

5782 2100 chrome

also compatible with

HANSAMATRIX

projection: 160 mm

HANSAMATRIX

concealed installation unit,

DN 15 (G 1/2)

single-lever faucet

4401 0100

suitable for trim kit

HANSAMATRIX 4.0

with 2-way-diverter

|�1.4.2020

HANSARONDA

bathtub spout,

DN 15 (G 1/2)

0582 2172 chrome

also compatible with

HANSAMATRIX

projection: 180 mm

2

3

HANSALIVING

wall bar set 1100 mm

4442 0100 chrome

HANSASTILO hand shower,

Silverjet

®

shower hose

1600 mm, chrome optic

HANSALIVING

shower set

Rosette soft edge - rounded

4443 0170 chrome*

HANSASTILO hand shower,

Silverjet

®

shower hose

1250 mm, chrome optic

* matching

HANSADESIGNO

STYLE

HANSADESIGNO

STYLE

bathtub spout, DN 15

5116 2180 chrome

also compatible with

HANSAMATRIX, square rosette,

75 x 75 mm additionally

included, Rosette soft edge -

rounded, round rosette,

Ø 75 mm additionally enclosed

projection: 195 mm

HANSAFILL for distant positioned bathtub spout

HANSA

trim kit

Pipe interrupter

4481 0000 chrome

also compatible with

HANSAMATRIX

HANSA

Pipe interrupter

concealed installation unit,

DN 15 (G 1/2)

4480 0000

available for 4481 0000 and

4482 0000

HANSAFILL

trim kit

0519 9000 chrome

HANSAFILL

tub filler and drain assembly

installation set

0516 0100

Issue 01/2020

329

For HANSAFILL

replaces

4404 0100

from item

3
