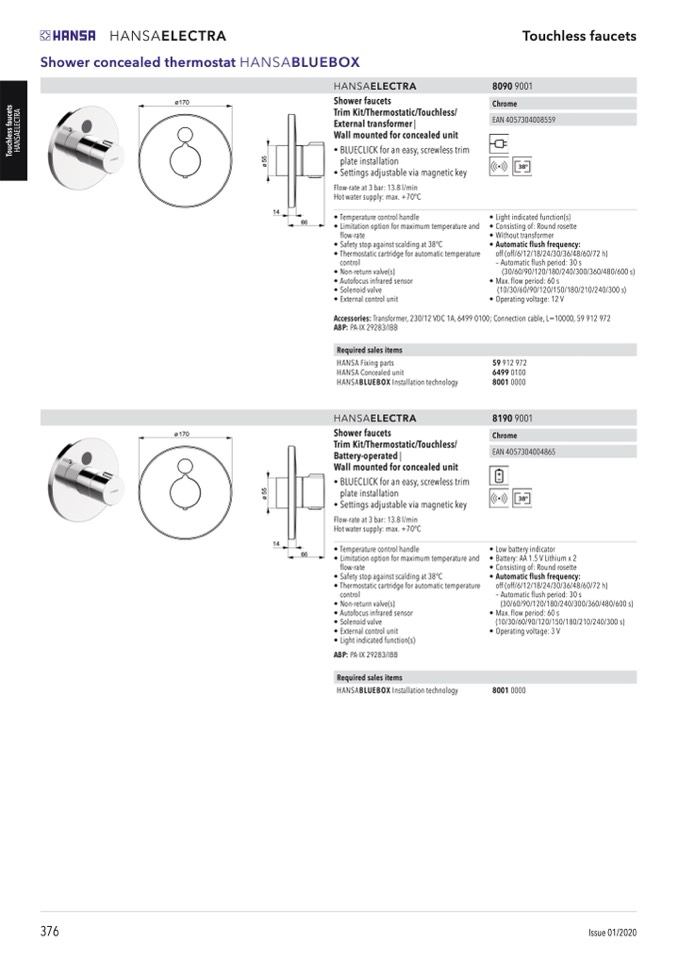

HANSAELECTRA
Shower concealed thermostat HANSABLUEBOX
Touchless faucets
376
Issue 01/2020
ø170
ø 170
14
66
14
66
HANSAELECTRA
Shower faucets
Trim Kit/Thermostatic/Touchless/
External transformer |
Wall mounted for concealed unit
• BLUECLICK for an easy, screwless trim
plate installation
• Settings adjustable via magnetic key
Flow-rate at 3 bar: 13.8 l/min
Hot water supply: max. +70°C
• Temperature control handle
• Limitation option for maximum temperature and
flow-rate
• Safety stop against scalding at 38°C
• Thermostatic cartridge for automatic temperature
control
• Non-return valve(s)
• Autofocus infrared sensor
• Solenoid valve
• External control unit
80909001
Chrome
EAN 4057304008559
• Light indicated function(s)
• Consisting of: Round rosette
• Without transformer
• Automatic flush frequency:
€ 629,00
Accessories: Transformer, 230/12 VDC 1A, 6499 0100; Connection cable, L=10000, 59 912 972
ABP: PA-IX 29283/IBB
Required sales items
HANSA Fixing parts
HANSA Concealed unit
HANSABLUEBOX Installation technology
HANSAELECTRA
Shower faucets
Trim Kit/Thermostatic/Touchless/
Battery-operated |
Wall mounted for concealed unit
• BLUECLICK for an easy, screwless trim
plate installation
• Settings adjustable via magnetic key
Flow-rate at 3 bar: 13.8 l/min
Hot water supply: max. +70°C
• Temperature control handle
• Limitation option for maximum temperature and
flow-rate
• Safety stop against scalding at 38°C
• Thermostatic cartridge for automatic temperature
control
• Non-return valve(s)
• Autofocus infrared sensor
• Solenoid valve
• External control unit
• Light indicated function(s)
ABP: PA-IX 29283/IBB
Required sales items
HANSABLUEBOX Installation technology
59 912 972
6499 0100
8001 0000
81909001
Chrome
EAN 4057304004865
• Low battery indicator
• Battery: AA 1.5 V Lithium x 2
• Consisting of: Round rosette
• Automatic flush frequency:
€ 629,00
off (off/6/12/18/24/30/36/48/60/72 h)
– Automatic flush period: 30 s
(30/60/90/120/180/240/300/360/480/600 s)
• Max. flow period: 60 s
(10/30/60/90/120/150/180/210/240/300 s)
• Operating voltage: 12 V
ø
5
5
ø
5
5
T
o
u
c
h
l
e
s
s
f
a
u
c
e
t
s
H
A
N
S
A
E
L
E
C
T
R
A
off (off/6/12/18/24/30/36/48/60/72 h)
– Automatic flush period: 30 s
(30/60/90/120/180/240/300/360/480/600 s)
• Max. flow period: 60 s
(10/30/60/90/120/150/180/210/240/300 s)
• Operating voltage: 3 V
8001 0000
