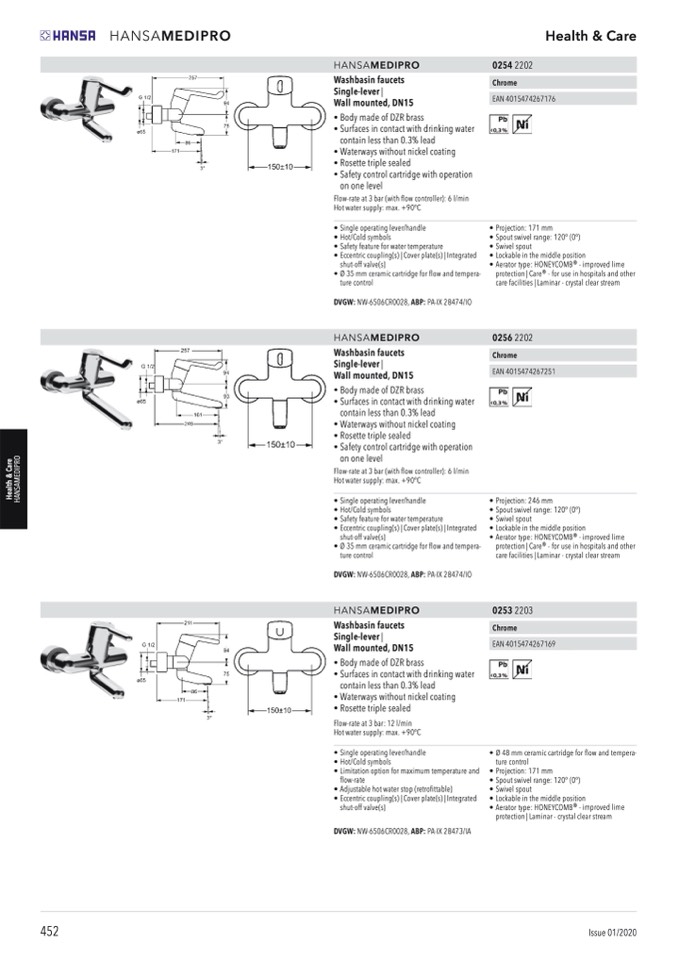

HANSAMEDIPRO
0254 2202
€ 290,00
Chrome
HANSAMEDIPRO
EAN 4015474267176
0256 2202
€ 304,00
HANSAMEDIPRO
Chrome
EAN 4015474267251
0253 2203
€ 263,00
Chrome
EAN 4015474267169
HANSAMEDIPRO
Health & Care
Washbasin faucets
Single-lever |
Wall mounted, DN15
• Body made of DZR brass
• Surfaces in contact with drinking water
contain less than 0.3% lead
• Waterways without nickel coating
• Rosette triple sealed
• Safety control cartridge with operation
on one level
Flow-rate at 3 bar (with flow controller): 6 l/min
Hot water supply: max. +90°C
• Single operating lever/handle
• Hot/Cold symbols
• Safety feature for water temperature
• Eccentric coupling(s) | Cover plate(s) | Integrated
shut-off valve(s)
• Ø 35 mm ceramic cartridge for flow and tempera-
ture control
DVGW: NW-6506CR0028, ABP: PA-IX 28474/IO
Washbasin faucets
Single-lever |
Wall mounted, DN15
• Body made of DZR brass
• Surfaces in contact with drinking water
contain less than 0.3% lead
• Waterways without nickel coating
• Rosette triple sealed
• Safety control cartridge with operation
on one level
Flow-rate at 3 bar (with flow controller): 6 l/min
Hot water supply: max. +90°C
• Single operating lever/handle
• Hot/Cold symbols
• Safety feature for water temperature
• Eccentric coupling(s) | Cover plate(s) | Integrated
shut-off valve(s)
• Ø 35 mm ceramic cartridge for flow and tempera-
ture control
DVGW: NW-6506CR0028, ABP: PA-IX 28474/IO
Washbasin faucets
Single-lever |
Wall mounted, DN15
• Body made of DZR brass
• Surfaces in contact with drinking water
contain less than 0.3% lead
• Waterways without nickel coating
• Rosette triple sealed
Flow-rate at 3 bar: 12 l/min
Hot water supply: max. +90°C
• Single operating lever/handle
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
• Adjustable hot water stop (retrofittable)
• Eccentric coupling(s) | Cover plate(s) | Integrated
shut-off valve(s)
DVGW: NW-6506CR0028, ABP: PA-IX 28473/IA
•
•
•
•
•
Projection: 171 mm
Spout swivel range: 120° (0°)
Swivel spout
Lockable in the middle position
Aerator type: HONEYCOMB® - improved lime
protection | Care® - for use in hospitals and other
care facilities | Laminar - crystal clear stream
•
•
•
•
•
Projection: 246 mm
Spout swivel range: 120° (0°)
Swivel spout
Lockable in the middle position
Aerator type: HONEYCOMB® - improved lime
protection | Care® - for use in hospitals and other
care facilities | Laminar - crystal clear stream
•
•
•
•
•
•
Ø 48 mm ceramic cartridge for flow and tempera-
ture control
Projection: 171 mm
Spout swivel range: 120° (0°)
Swivel spout
Lockable in the middle position
Aerator type: HONEYCOMB® - improved lime
protection | Laminar - crystal clear stream
452
Issue 01/2020
