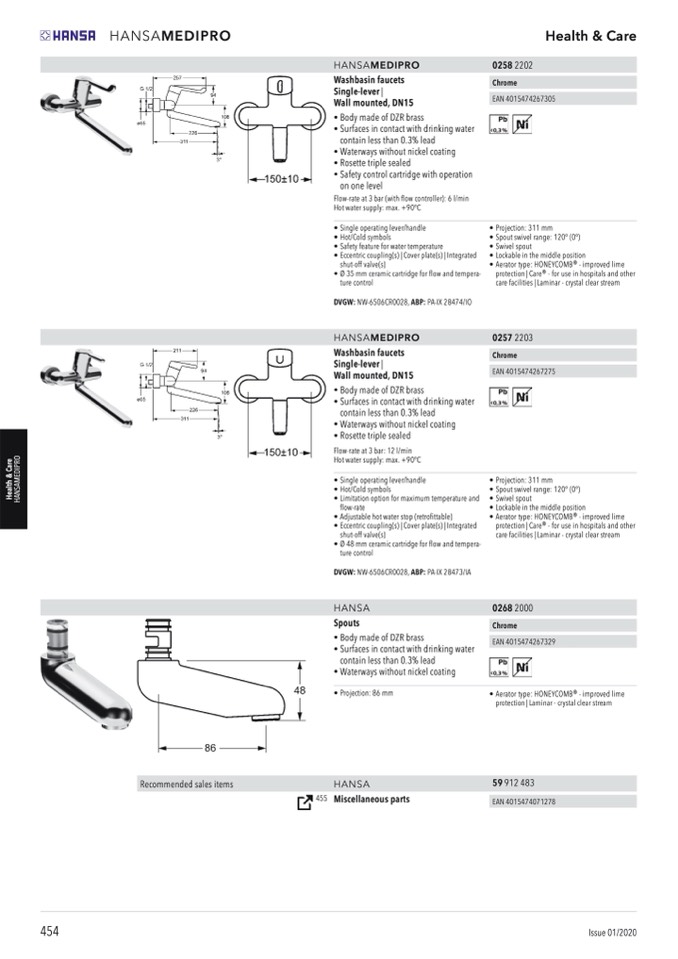

Hansa - Product list 2020

HANSAMEDIPRO

0258 2202

EAN 4015474267305

0257 2203

€ 316,00

Chrome

€ 285,00

Chrome

HANSA

EAN 4015474267275

0268 2000

€ 74,50

Chrome

Recommended sales items

HANSA

EAN 4015474267329

59 912 483

€

EAN 4015474071278

HANSAMEDIPRO

Health & Care

Washbasin faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

• Surfaces in contact with drinking water

contain less than 0.3% lead

• Waterways without nickel coating

• Rosette triple sealed

• Safety control cartridge with operation

on one level

Flow-rate at 3 bar (with flow controller): 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Safety feature for water temperature

• Eccentric coupling(s) | Cover plate(s) | Integrated

shut-off valve(s)

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

DVGW: NW-6506CR0028, ABP: PA-IX 28474/IO

Washbasin faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

• Surfaces in contact with drinking water

contain less than 0.3% lead

• Waterways without nickel coating

• Rosette triple sealed

Flow-rate at 3 bar: 12 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Cover plate(s) | Integrated

shut-off valve(s)

• Ø 48 mm ceramic cartridge for flow and tempera-

ture control

DVGW: NW-6506CR0028, ABP: PA-IX 28473/IA

Spouts

• Body made of DZR brass

• Surfaces in contact with drinking water

contain less than 0.3% lead

• Waterways without nickel coating

• Projection: 86 mm

Miscellaneous parts

•

Projection: 311 mm

Spout swivel range: 120° (0°)

Swivel spout

Lockable in the middle position

Aerator type: HONEYCOMB® - improved lime

protection | Care® - for use in hospitals and other

care facilities | Laminar - crystal clear stream

•

Projection: 311 mm

Spout swivel range: 120° (0°)

Swivel spout

Lockable in the middle position

Aerator type: HONEYCOMB® - improved lime

protection | Care® - for use in hospitals and other

care facilities | Laminar - crystal clear stream

•

Aerator type: HONEYCOMB® - improved lime

protection | Laminar - crystal clear stream

455

454

Issue 01/2020
