HANSAMEDIPRO

HANSAMEDIPRO

5810 1201

Chrome

5808 0201

Chrome

€ 308,00

EAN 4015474267466

€ 250,00

EAN 4015474267459

HANSAMEDIPRO

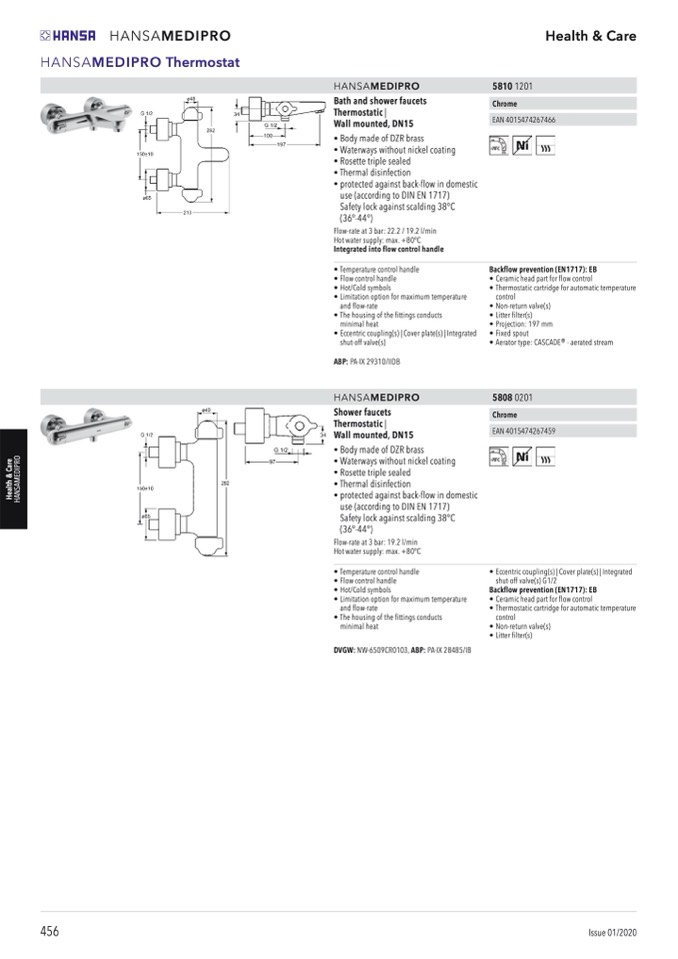

HANSAMEDIPRO Thermostat

Health & Care

Bath and shower faucets

Thermostatic |

Wall mounted, DN15

• Body made of DZR brass

• Waterways without nickel coating

• Rosette triple sealed

• Thermal disinfection

• protected against back-flow in domestic

use (according to DIN EN 1717)

Safety lock against scalding 38°C

(36°-44°)

Flow-rate at 3 bar: 22.2 / 19.2 l/min

Hot water supply: max. +80°C

Integrated into flow control handle

• Temperature control handle

• Flow control handle

• Hot/Cold symbols

• Limitation option for maximum temperature

and flow-rate

• The housing of the fittings conducts

minimal heat

• Eccentric coupling(s) | Cover plate(s) | Integrated

shut-off valve(s)

ABP: PA-IX 29310/IIDB

Shower faucets

Thermostatic |

Wall mounted, DN15

• Body made of DZR brass

• Waterways without nickel coating

• Rosette triple sealed

• Thermal disinfection

• protected against back-flow in domestic

use (according to DIN EN 1717)

Safety lock against scalding 38°C

(36°-44°)

Flow-rate at 3 bar: 19.2 l/min

Hot water supply: max. +80°C

• Temperature control handle

• Flow control handle

• Hot/Cold symbols

• Limitation option for maximum temperature

and flow-rate

• The housing of the fittings conducts

minimal heat

DVGW: NW-6509CR0103, ABP: PA-IX 28485/IB

Backflow prevention (EN1717): EB

• Ceramic head part for flow control

• Thermostatic cartridge for automatic temperature

control

• Non-return valve(s)

• Litter filter(s)

• Projection: 197 mm

• Fixed spout

• Aerator type: CASCADE® - aerated stream

• Eccentric coupling(s) | Cover plate(s) | Integrated

shut-off valve(s) G1/2

Backflow prevention (EN1717): EB

•

•

•

•

Ceramic head part for flow control

Thermostatic cartridge for automatic temperature

control

Non-return valve(s)

Litter filter(s)

456

Issue 01/2020
