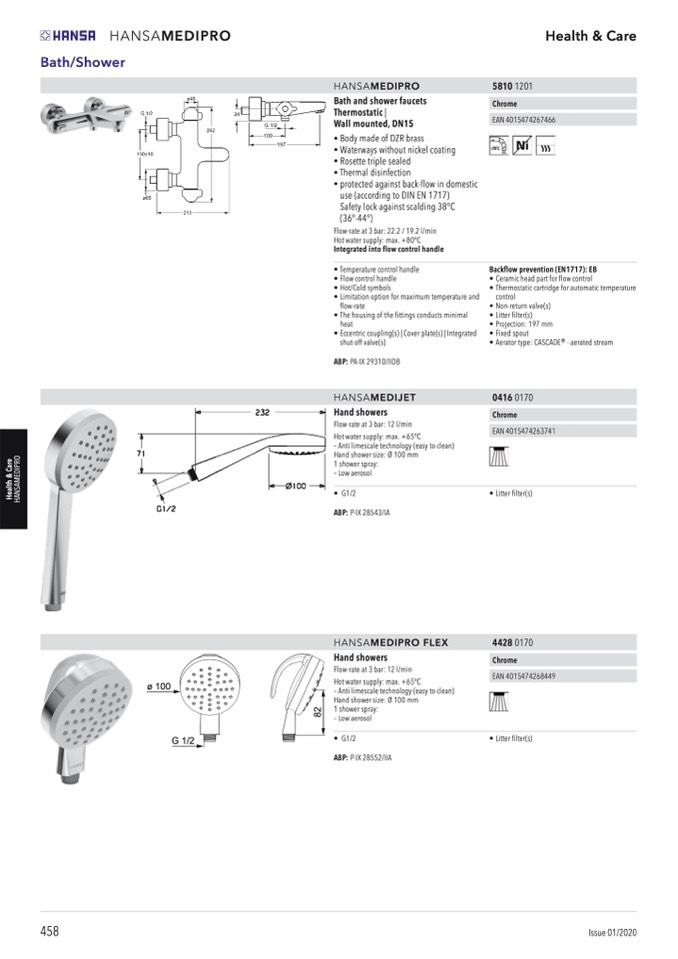

HANSAMEDIPRO

Bath/Shower

Health & Care

458

Issue 01/2020

ø 100

G 1/2

HANSAMEDIPRO

Bath and shower faucets

Thermostatic |

Wall mounted, DN15

• Body made of DZR brass

• Waterways without nickel coating

• Rosette triple sealed

• Thermal disinfection

• protected against back-flow in domestic

use (according to DIN EN 1717)

Safety lock against scalding 38°C

(36°-44°)

Flow-rate at 3 bar: 22.2 / 19.2 l/min

Hot water supply: max. +80°C

Integrated into flow control handle

• Temperature control handle

• Flow control handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• The housing of the fittings conducts minimal

heat

• Eccentric coupling(s) | Cover plate(s) | Integrated

shut-off valve(s)

ABP: PA-IX 29310/IIDB

HANSAMEDIJET

Hand showers

Flow-rate at 3 bar: 12 l/min

Hot water supply: max. +65°C

– Anti limescale technology (easy to clean)

Hand shower size: Ø 100 mm

1 shower spray:

– Low aerosol

• G1/2

ABP: P-IX 28543/IA

HANSAMEDIPRO FLEX

Hand showers

Flow-rate at 3 bar: 12 l/min

Hot water supply: max. +65°C

– Anti limescale technology (easy to clean)

Hand shower size: Ø 100 mm

1 shower spray:

– Low aerosol

• G1/2

ABP: P-IX 28552/IIA

58101201

Chrome

EAN 4015474267466

€ 308,00

Backflow prevention (EN1717): EB

• Ceramic head part for flow control

• Thermostatic cartridge for automatic temperature

control

• Non-return valve(s)

• Litter filter(s)

• Projection: 197 mm

• Fixed spout

• Aerator type: CASCADE® - aerated stream

04160170

Chrome

EAN 4015474263741

• Litter filter(s)

€ 40,00

44280170

Chrome

EAN 4015474268449

• Litter filter(s)

€ 44,80
