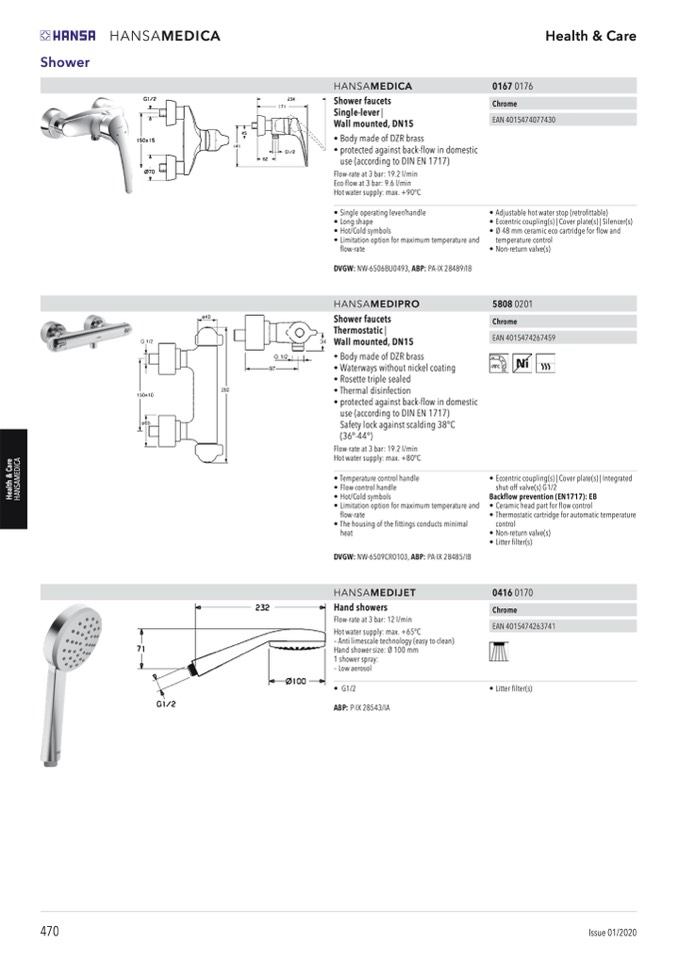

HANSAMEDICA

0167 0176

€ 194,00

Chrome

HANSAMEDIPRO

EAN 4015474077430

5808 0201

€ 250,00

HANSAMEDIJET

Chrome

EAN 4015474267459

0416 0170

€ 40,00

Chrome

EAN 4015474263741

Shower

HANSAMEDICA

Health & Care

Shower faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 19.2 l/min

Eco-flow at 3 bar: 9.6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Long shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

DVGW: NW-6506BU0493, ABP: PA-IX 28489/IB

Shower faucets

Thermostatic |

Wall mounted, DN15

• Body made of DZR brass

• Waterways without nickel coating

• Rosette triple sealed

• Thermal disinfection

• protected against back-flow in domestic

use (according to DIN EN 1717)

Safety lock against scalding 38°C

(36°-44°)

Flow-rate at 3 bar: 19.2 l/min

Hot water supply: max. +80°C

• Temperature control handle

• Flow control handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• The housing of the fittings conducts minimal

heat

DVGW: NW-6509CR0103, ABP: PA-IX 28485/IB

Hand showers

Flow-rate at 3 bar: 12 l/min

Hot water supply: max. +65°C

– Anti limescale technology (easy to clean)

Hand shower size: Ø 100 mm

1 shower spray:

– Low aerosol

• G1/2

ABP: P-IX 28543/IA

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Cover plate(s) | Silencer(s)

• Ø 48 mm ceramic eco cartridge for flow and

temperature control

• Non-return valve(s)

• Eccentric coupling(s) | Cover plate(s) | Integrated

shut-off valve(s) G1/2

Backflow prevention (EN1717): EB

•

•

•

•

•

Ceramic head part for flow control

Thermostatic cartridge for automatic temperature

control

Non-return valve(s)

Litter filter(s)

Litter filter(s)

470

Issue 01/2020
