HANSALOFT

168

HANSA | LIVING

G

57

75

78

108

110

122

125

135

3/4

7

31

31

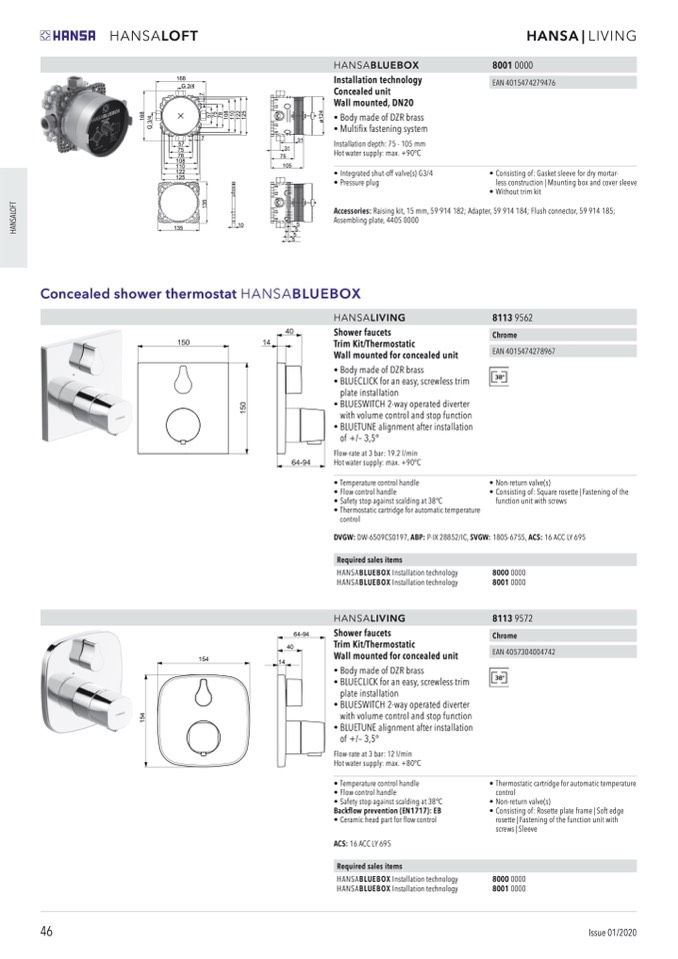

Concealed shower thermostat HANSABLUEBOX

HANSALIVING

81139562

Chrome

EAN 4015474278967

€ 529,00

46

Issue 01/2020

154

14

10

5

5

5

5

Accessories: Raising kit, 15 mm, 59 914 182; Adapter, 59 914 184; Flush connector, 59 914 185;

Assembling plate, 4405 0000

75

105

40

64-94

HANSABLUEBOX

Installation technology

Concealed unit

Wall mounted, DN20

• Body made of DZR brass

• Multifix fastening system

Installation depth: 75 - 105 mm

Hot water supply: max. +90°C

• Integrated shut-off valve(s) G3/4

• Pressure plug

80010000

EAN 4015474279476

€ 110,00

Shower faucets

Trim Kit/Thermostatic

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUESWITCH 2-way operated diverter

with volume control and stop function

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 19.2 l/min

Hot water supply: max. +90°C

• Temperature control handle

• Flow control handle

• Safety stop against scalding at 38°C

• Thermostatic cartridge for automatic temperature

• Non-return valve(s)

• Consisting of: Square rosette | Fastening of the

control

DVGW: DW-6509CS0197, ABP: P-IX 28852/IC, SVGW: 1805-6755, ACS: 16 ACC LY 695

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

HANSALIVING

Shower faucets

Trim Kit/Thermostatic

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUESWITCH 2-way operated diverter

with volume control and stop function

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 12 l/min

Hot water supply: max. +80°C

• Temperature control handle

• Flow control handle

• Safety stop against scalding at 38°C

Backflow prevention (EN1717): EB

• Ceramic head part for flow control

ACS: 16 ACC LY 695

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

8000 0000

8001 0000

81139572

Chrome

EAN 4057304004742

€ 529,00

• Consisting of: Gasket sleeve for dry mortar-

less construction | Mounting box and cover sleeve

• Without trim kit

H

A

N

S

A

L

O

F

T

1

3

5

7

5

7

1

6

8

G

3

/

4

7

5

7

8

1

0

8

1

1

0

1

2

2

1

2

5

ø

1

2

4

function unit with screws

1

5

4

• Thermostatic cartridge for automatic temperature

control

• Non-return valve(s)

• Consisting of: Rosette plate frame | Soft edge

rosette | Fastening of the function unit with

screws | Sleeve

8000 0000

8001 0000
