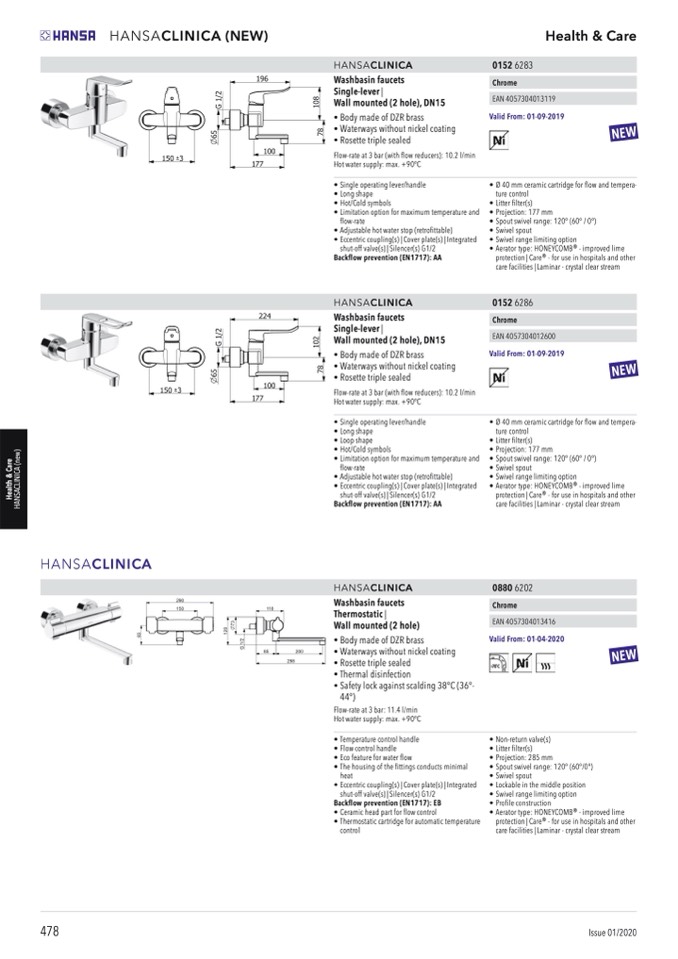

HANSACLINICA

478

Issue 01/2020

HANSACLINICA (NEW)

Health & Care

HANSACLINICA

Washbasin faucets

Single-lever |

Wall mounted (2 hole), DN15

• Body made of DZR brass

• Waterways without nickel coating

• Rosette triple sealed

Flow-rate at 3 bar (with flow reducers): 10.2 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Long shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Cover plate(s) | Integrated

shut-off valve(s) | Silencer(s) G1/2

Backflow prevention (EN1717): AA

HANSACLINICA

Washbasin faucets

Single-lever |

Wall mounted (2 hole), DN15

• Body made of DZR brass

• Waterways without nickel coating

• Rosette triple sealed

Flow-rate at 3 bar (with flow reducers): 10.2 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Long shape

• Loop shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Cover plate(s) | Integrated

shut-off valve(s) | Silencer(s) G1/2

Backflow prevention (EN1717): AA

HANSACLINICA

Washbasin faucets

Thermostatic |

Wall mounted (2 hole)

• Body made of DZR brass

• Waterways without nickel coating

• Rosette triple sealed

• Thermal disinfection

• Safety lock against scalding 38°C (36°-

44°)

Flow-rate at 3 bar: 11.4 l/min

Hot water supply: max. +90°C

• Temperature control handle

• Flow control handle

• Eco feature for water flow

• The housing of the fittings conducts minimal

heat

• Eccentric coupling(s) | Cover plate(s) | Integrated

shut-off valve(s) | Silencer(s) G1/2

Backflow prevention (EN1717): EB

• Ceramic head part for flow control

• Thermostatic cartridge for automatic temperature

control

01526283

Chrome

EAN 4057304013119

Valid From: 01-09-2019

€ 222,00

NEW

• Ø 40 mm ceramic cartridge for flow and tempera-

ture control

• Litter filter(s)

• Projection: 177 mm

• Spout swivel range: 120° (60° / 0°)

• Swivel spout

• Swivel range limiting option

• Aerator type: HONEYCOMB® - improved lime

protection | Care® - for use in hospitals and other

care facilities | Laminar - crystal clear stream

01526286

Chrome

EAN 4057304012600

Valid From: 01-09-2019

€ 222,00

• Ø 40 mm ceramic cartridge for flow and tempera-

ture control

• Litter filter(s)

• Projection: 177 mm

• Spout swivel range: 120° (60° / 0°)

• Swivel spout

• Swivel range limiting option

• Aerator type: HONEYCOMB® - improved lime

protection | Care® - for use in hospitals and other

care facilities | Laminar - crystal clear stream

H

e

a

l

t

h

&

C

a

r

e

H

A

N

S

A

C

L

I

N

I

C

A

(

n

e

w

)

08806202

Chrome

EAN 4057304013416

Valid From: 01-04-2020

€ 253,00

•

•

•

•

•

•

•

•

•

Non-return valve(s)

Litter filter(s)

Projection: 285 mm

Spout swivel range: 120° (60°/0°)

Swivel spout

Lockable in the middle position

Swivel range limiting option

Profile construction

Aerator type: HONEYCOMB® - improved lime

protection | Care® - for use in hospitals and other

care facilities | Laminar - crystal clear stream
