Health & Care

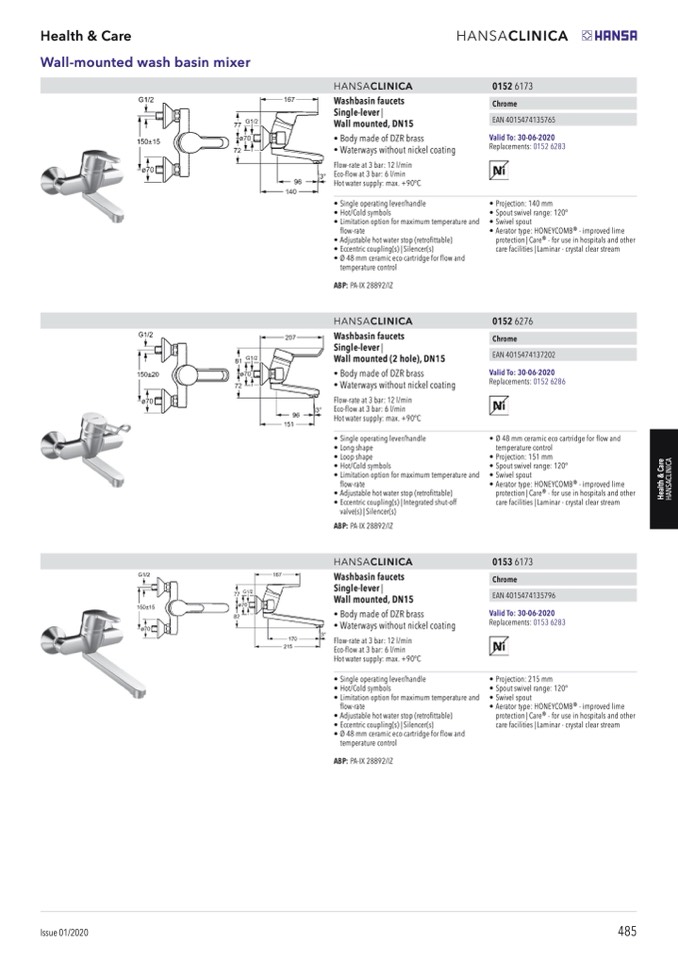

Wall-mounted wash basin mixer

HANSACLINICA

HANSACLINICA

Washbasin faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

• Waterways without nickel coating

Flow-rate at 3 bar: 12 l/min

Eco-flow at 3 bar: 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Silencer(s)

• Ø 48 mm ceramic eco cartridge for flow and

temperature control

ABP: PA-IX 28892/IZ

Washbasin faucets

Single-lever |

Wall mounted (2 hole), DN15

• Body made of DZR brass

• Waterways without nickel coating

Flow-rate at 3 bar: 12 l/min

Eco-flow at 3 bar: 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Long shape

• Loop shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Integrated shut-off

valve(s) | Silencer(s)

ABP: PA-IX 28892/IZ

Washbasin faucets

Single-lever |

Wall mounted, DN15

• Body made of DZR brass

• Waterways without nickel coating

Flow-rate at 3 bar: 12 l/min

Eco-flow at 3 bar: 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Eccentric coupling(s) | Silencer(s)

• Ø 48 mm ceramic eco cartridge for flow and

temperature control

ABP: PA-IX 28892/IZ

Valid To: 30-06-2020

Replacements: 0152 6283

• Projection: 140 mm

• Spout swivel range: 120°

• Swivel spout

• Aerator type: HONEYCOMB® - improved lime

protection | Care® - for use in hospitals and other

care facilities | Laminar - crystal clear stream

Valid To: 30-06-2020

Replacements: 0152 6286

• Ø 48 mm ceramic eco cartridge for flow and

temperature control

• Projection: 151 mm

• Spout swivel range: 120°

• Swivel spout

• Aerator type: HONEYCOMB® - improved lime

protection | Care® - for use in hospitals and other

care facilities | Laminar - crystal clear stream

Valid To: 30-06-2020

Replacements: 0153 6283

• Projection: 215 mm

• Spout swivel range: 120°

• Swivel spout

• Aerator type: HONEYCOMB® - improved lime

protection | Care® - for use in hospitals and other

care facilities | Laminar - crystal clear stream

0152 6173

€ 207,00

Chrome

EAN 4015474135765

0152 6276

€ 256,00

Issue 01/2020

485

HANSACLINICA

HANSACLINICA

Chrome

EAN 4015474137202

0153 6173

€ 219,00

Chrome

EAN 4015474135796
