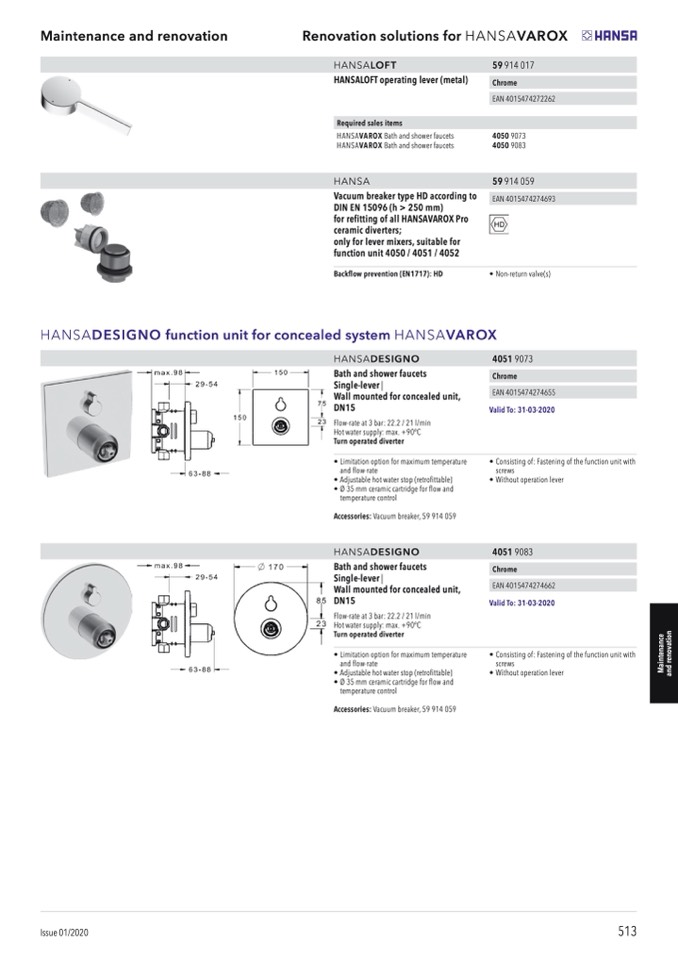

Maintenance and renovation

Renovation solutions for HANSAVAROX

HANSALOFT operating lever (metal)

Required sales items

Issue 01/2020

513

HANSALOFT

HANSAVAROX Bath and shower faucets

HANSAVAROX Bath and shower faucets

Vacuum breaker type HD according to

DIN EN 15096 (h > 250 mm)

for refitting of all HANSAVAROX Pro

ceramic diverters;

only for lever mixers, suitable for

function unit 4050 / 4051 / 4052

Backflow prevention (EN1717): HD

4050 9073

4050 9083

• Non-return valve(s)

HANSA

HANSADESIGNO function unit for concealed system HANSAVAROX

HANSADESIGNO

Bath and shower faucets

Single-lever |

Wall mounted for concealed unit,

DN15

Flow-rate at 3 bar: 22.2 / 21 l/min

Hot water supply: max. +90°C

Turn operated diverter

• Limitation option for maximum temperature

and flow-rate

• Adjustable hot water stop (retrofittable)

• Ø 35 mm ceramic cartridge for flow and

temperature control

Accessories: Vacuum breaker, 59 914 059

Bath and shower faucets

Single-lever |

Wall mounted for concealed unit,

DN15

Flow-rate at 3 bar: 22.2 / 21 l/min

Hot water supply: max. +90°C

Turn operated diverter

• Limitation option for maximum temperature

and flow-rate

• Adjustable hot water stop (retrofittable)

• Ø 35 mm ceramic cartridge for flow and

temperature control

Accessories: Vacuum breaker, 59 914 059

Valid To: 31-03-2020

• Consisting of: Fastening of the function unit with

screws

• Without operation lever

Valid To: 31-03-2020

• Consisting of: Fastening of the function unit with

screws

• Without operation lever

HANSADESIGNO

59 914 017

EAN 4015474272262

59 914 059

4051 9073

Chrome

4051 9083

Chrome

€ 33,60

Chrome

€ 69,80

EAN 4015474274693

€ 314,00

EAN 4015474274655

€ 314,00

EAN 4015474274662
