HANSA

HANSA

HANSA

59 904 601

59 911 437

€ 42,30

EAN 4015474165632

€ 42,30

EAN 4015474964242

59 911 431

€ 55,30

HANSA

HANSA

EAN 4015474961531

59 912 324

EAN 4015474065826

€ 33,10

59 913 953

€ 33,50

EAN 4015474270640

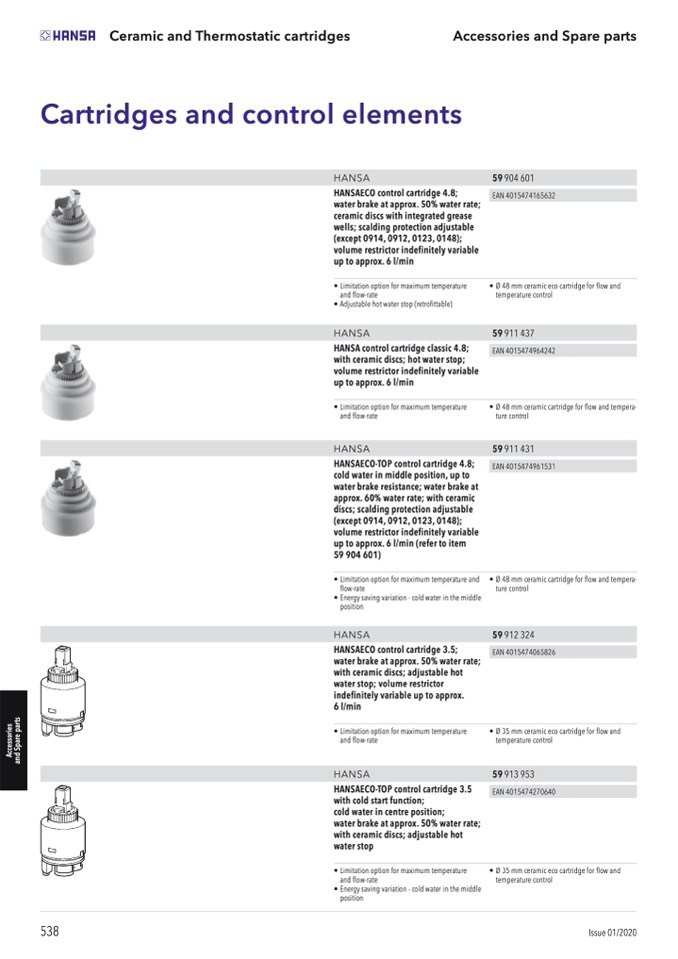

Ceramic and Thermostatic cartridges

Accessories and Spare parts

Cartridges and control elements

HANSAECO control cartridge 4.8;

water brake at approx. 50% water rate;

ceramic discs with integrated grease

wells; scalding protection adjustable

(except 0914, 0912, 0123, 0148);

volume restrictor indefinitely variable

up to approx. 6 l/min

• Limitation option for maximum temperature

and flow-rate

• Adjustable hot water stop (retrofittable)

HANSA control cartridge classic 4.8;

with ceramic discs; hot water stop;

volume restrictor indefinitely variable

up to approx. 6 l/min

• Limitation option for maximum temperature

and flow-rate

HANSAECO-TOP control cartridge 4.8;

cold water in middle position, up to

water brake resistance; water brake at

approx. 60% water rate; with ceramic

discs; scalding protection adjustable

(except 0914, 0912, 0123, 0148);

volume restrictor indefinitely variable

up to approx. 6 l/min (refer to item

59 904 601)

• Limitation option for maximum temperature and

flow-rate

• Energy saving variation - cold water in the middle

position

HANSAECO control cartridge 3.5;

water brake at approx. 50% water rate;

with ceramic discs; adjustable hot

water stop; volume restrictor

indefinitely variable up to approx.

6 l/min

• Limitation option for maximum temperature

and flow-rate

HANSAECO-TOP control cartridge 3.5

with cold start function;

cold water in centre position;

water brake at approx. 50% water rate;

with ceramic discs; adjustable hot

water stop

• Limitation option for maximum temperature

and flow-rate

• Energy saving variation - cold water in the middle

position

•

•

Ø 48 mm ceramic eco cartridge for flow and

temperature control

Ø 48 mm ceramic cartridge for flow and tempera-

ture control

•

Ø 48 mm ceramic cartridge for flow and tempera-

ture control

Ø 35 mm ceramic eco cartridge for flow and

temperature control

Ø 35 mm ceramic eco cartridge for flow and

temperature control

•

•

538

Issue 01/2020
