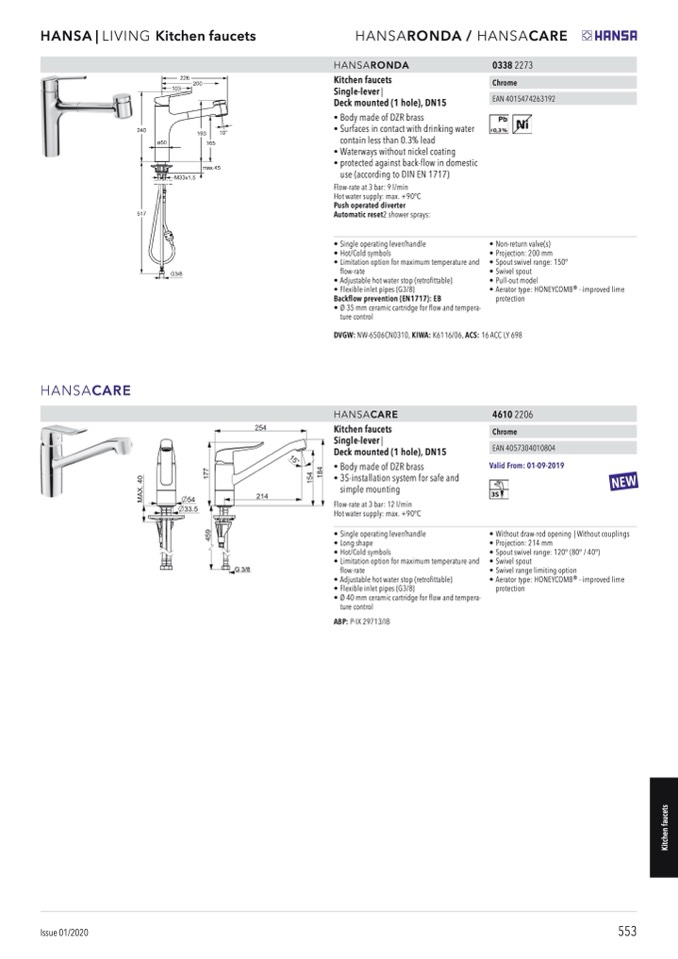

HANSA | LIVING Kitchen faucets

HANSARONDA / HANSACARE

HANSACARE

Issue 01/2020

553

G 3/8

• Without draw-rod opening | Without couplings

• Projection: 214 mm

• Spout swivel range: 120° (80° / 40°)

• Swivel spout

• Swivel range limiting option

• Aerator type: HONEYCOMB® - improved lime

protection

HANSARONDA

Kitchen faucets

Single-lever |

Deck mounted (1 hole), DN15

• Body made of DZR brass

• Surfaces in contact with drinking water

contain less than 0.3% lead

• Waterways without nickel coating

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 9 l/min

Hot water supply: max. +90°C

Push operated diverter

Automatic reset2 shower sprays:

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Flexible inlet pipes (G3/8)

Backflow prevention (EN1717): EB

• Ø 35 mm ceramic cartridge for flow and tempera-

03382273

Chrome

EAN 4015474263192

€ 243,00

ture control

DVGW: NW-6506CN0310, KIWA: K6116/06, ACS: 16 ACC LY 698

HANSACARE

Kitchen faucets

Single-lever |

Deck mounted (1 hole), DN15

• Body made of DZR brass

• 3S-installation system for safe and

simple mounting

Flow-rate at 3 bar: 12 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Long shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Flexible inlet pipes (G3/8)

• Ø 40 mm ceramic cartridge for flow and tempera-

ture control

ABP: P-IX 29713/IB

46102206

Chrome

EAN 4057304010804

Valid From: 01-09-2019

€ 134,00

• Non-return valve(s)

• Projection: 200 mm

• Spout swivel range: 150°

• Swivel spout

• Pull-out model

• Aerator type: HONEYCOMB® - improved lime

protection
