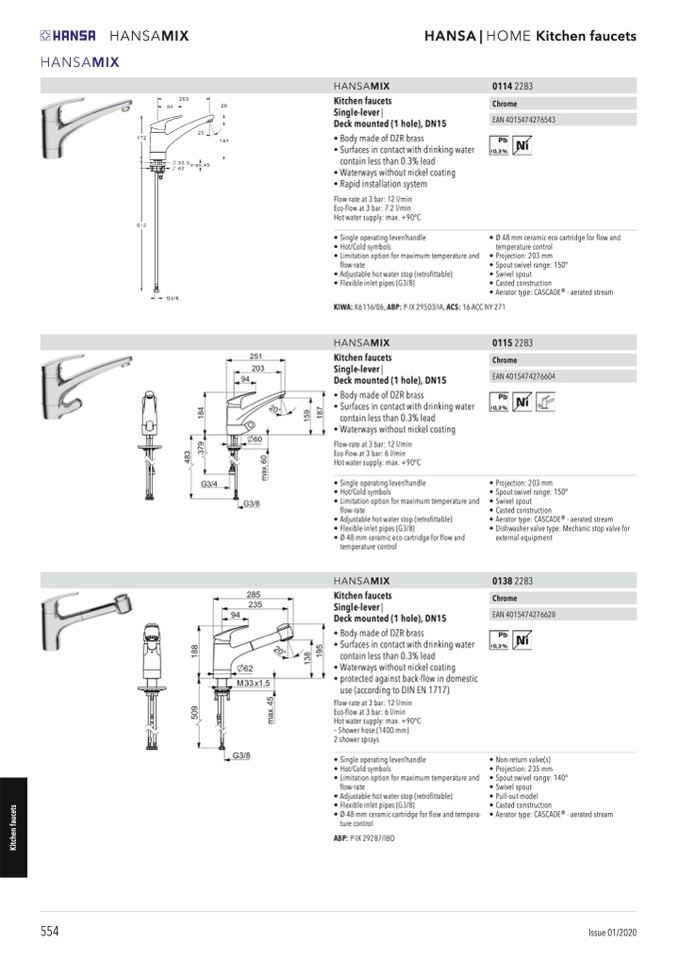

HANSAMIX

HANSAMIX

HANSA | HOME Kitchen faucets

554

Issue 01/2020

HANSAMIX

Kitchen faucets

Single-lever |

Deck mounted (1 hole), DN15

• Body made of DZR brass

• Surfaces in contact with drinking water

contain less than 0.3% lead

• Waterways without nickel coating

• Rapid installation system

Flow-rate at 3 bar: 12 l/min

Eco-flow at 3 bar: 7.2 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Flexible inlet pipes (G3/8)

01142283

Chrome

EAN 4015474276543

€ 191,00

KIWA: K6116/06, ABP: P-IX 29503/IA, ACS: 16 ACC NY 271

HANSAMIX

Kitchen faucets

Single-lever |

Deck mounted (1 hole), DN15

• Body made of DZR brass

• Surfaces in contact with drinking water

contain less than 0.3% lead

• Waterways without nickel coating

Flow-rate at 3 bar: 12 l/min

Eco-flow at 3 bar: 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Flexible inlet pipes (G3/8)

• Ø 48 mm ceramic eco cartridge for flow and

temperature control

HANSAMIX

Kitchen faucets

Single-lever |

Deck mounted (1 hole), DN15

• Body made of DZR brass

• Surfaces in contact with drinking water

contain less than 0.3% lead

• Waterways without nickel coating

• protected against back-flow in domestic

use (according to DIN EN 1717)

Flow-rate at 3 bar: 12 l/min

Eco-flow at 3 bar: 6 l/min

Hot water supply: max. +90°C

– Shower hose (1400 mm)

2 shower sprays

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Flexible inlet pipes (G3/8)

• Ø 48 mm ceramic cartridge for flow and tempera-

ture control

ABP: P-IX 29287/IBO

01152283

Chrome

EAN 4015474276604

€ 288,00

• Ø 48 mm ceramic eco cartridge for flow and

temperature control

• Projection: 203 mm

• Spout swivel range: 150°

• Swivel spout

• Casted construction

• Aerator type: CASCADE® - aerated stream

• Projection: 203 mm

• Spout swivel range: 150°

• Swivel spout

• Casted construction

• Aerator type: CASCADE® - aerated stream

• Dishwasher valve type: Mechanic stop valve for

external equipment

01382283

Chrome

EAN 4015474276628

€ 324,00

• Non-return valve(s)

• Projection: 235 mm

• Spout swivel range: 140°

• Swivel spout

• Pull-out model

• Casted construction

• Aerator type: CASCADE® - aerated stream
