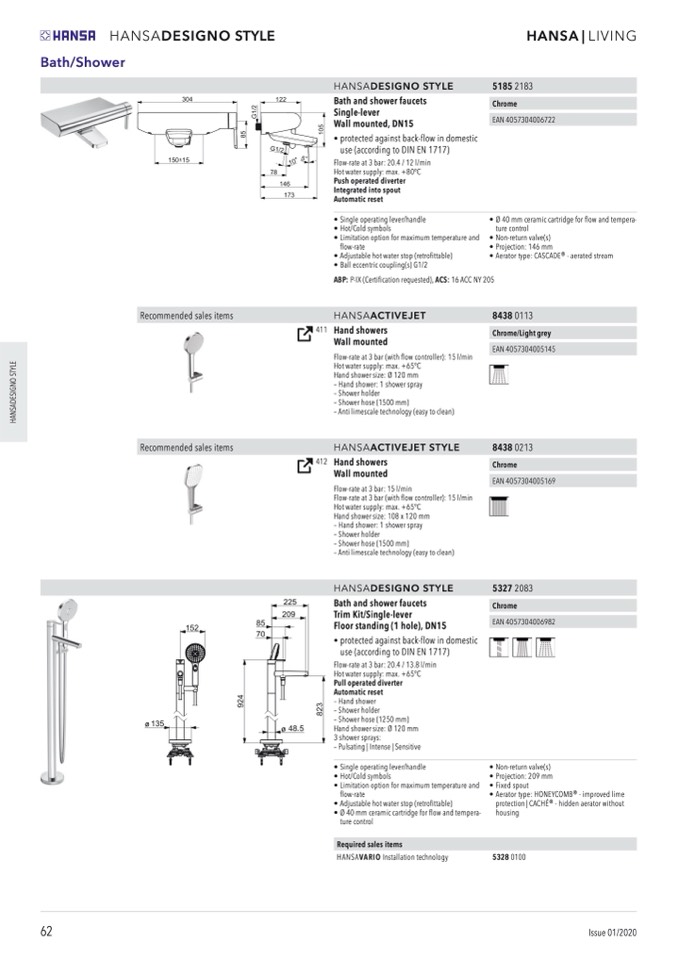

HANSADESIGNO STYLE
Bath/Shower
HANSA | LIVING
62
Issue 01/2020
Recommended sales items
Recommended sales items
411
412
HANSAACTIVEJET
Hand showers
Wall mounted
Flow-rate at 3 bar (with flow controller): 15 l/min
Hot water supply: max. +65°C
Hand shower size: Ø 120 mm
– Hand shower: 1 shower spray
– Shower holder
– Shower hose (1500 mm)
– Anti limescale technology (easy to clean)
HANSAACTIVEJET STYLE
Hand showers
Wall mounted
Flow-rate at 3 bar: 15 l/min
Flow-rate at 3 bar (with flow controller): 15 l/min
Hot water supply: max. +65°C
Hand shower size: 108 x 120 mm
– Hand shower: 1 shower spray
– Shower holder
– Shower hose (1500 mm)
– Anti limescale technology (easy to clean)
HANSADESIGNO STYLE
Bath and shower faucets
Trim Kit/Single-lever
Floor standing (1 hole), DN15
• protected against back-flow in domestic
use (according to DIN EN 1717)
Flow-rate at 3 bar: 20.4 / 13.8 l/min
Hot water supply: max. +65°C
Pull operated diverter
Automatic reset
– Hand shower
– Shower holder
– Shower hose (1250 mm)
Hand shower size: Ø 120 mm
3 shower sprays:
– Pulsating | Intense | Sensitive
• Single operating lever/handle
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
• Adjustable hot water stop (retrofittable)
• Ø 40 mm ceramic cartridge for flow and tempera-
ture control
Required sales items
HANSAVARIO Installation technology
8438 0113
Chrome/Light grey
EAN 4057304005145
8438 0213
Chrome
EAN 4057304005169
53272083
Chrome
EAN 4057304006982
€
€
€ 1.870,00
ø
ø
.
°
°
HANSADESIGNO STYLE
Bath and shower faucets
Single-lever
Wall mounted, DN15
• protected against back-flow in domestic
use (according to DIN EN 1717)
Flow-rate at 3 bar: 20.4 / 12 l/min
Hot water supply: max. +80°C
Push operated diverter
Integrated into spout
Automatic reset
• Single operating lever/handle
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
• Adjustable hot water stop (retrofittable)
• Ball eccentric coupling(s) G1/2
5185 2183
Chrome
EAN 4057304006722
€ 373,00
ABP: P-IX (Certification requested), ACS: 16 ACC NY 205
• Ø 40 mm ceramic cartridge for flow and tempera-
ture control
• Non-return valve(s)
• Projection: 146 mm
• Aerator type: CASCADE® - aerated stream
H
A
N
S
A
D
E
S
I
G
N
O
S
T
Y
L
E
• Non-return valve(s)
• Projection: 209 mm
• Fixed spout
• Aerator type: HONEYCOMB® - improved lime
protection | CACHÉ® - hidden aerator without
housing
5328 0100
