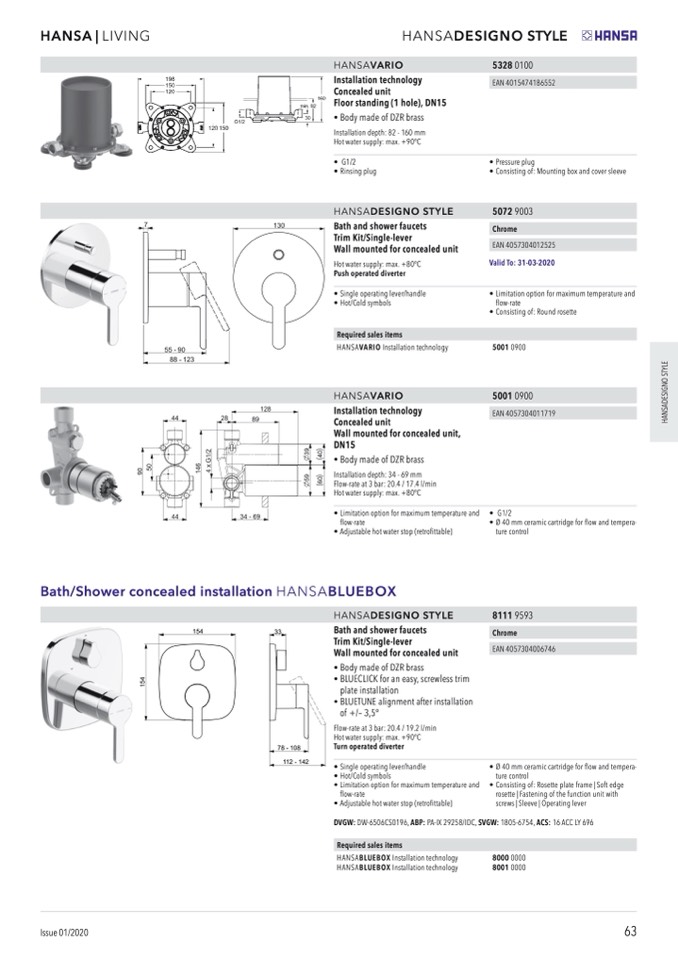

HANSA | LIVING
HANSADESIGNO STYLE
HANSAVARIO
Installation technology
Concealed unit
Floor standing (1 hole), DN15
• Body made of DZR brass
Installation depth: 82 - 160 mm
Hot water supply: max. +90°C
• G1/2
• Rinsing plug
HANSADESIGNO STYLE
Bath and shower faucets
Trim Kit/Single-lever
Wall mounted for concealed unit
Hot water supply: max. +80°C
Push operated diverter
• Single operating lever/handle
• Hot/Cold symbols
Required sales items
HANSAVARIO Installation technology
HANSAVARIO
Installation technology
Concealed unit
Wall mounted for concealed unit,
DN15
• Body made of DZR brass
Installation depth: 34 - 69 mm
Flow-rate at 3 bar: 20.4 / 17.4 l/min
Hot water supply: max. +80°C
• Limitation option for maximum temperature and
flow-rate
• Adjustable hot water stop (retrofittable)
Bath/Shower concealed installation HANSABLUEBOX
HANSADESIGNO STYLE
53280100
EAN 4015474186552
€ 417,00
Issue 01/2020
63
154
33
78 - 108
112 - 142
Bath and shower faucets
Trim Kit/Single-lever
Wall mounted for concealed unit
• Body made of DZR brass
• BLUECLICK for an easy, screwless trim
plate installation
• BLUETUNE alignment after installation
of +/– 3,5o
Flow-rate at 3 bar: 20.4 / 19.2 l/min
Hot water supply: max. +90°C
Turn operated diverter
• Single operating lever/handle
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
• Adjustable hot water stop (retrofittable)
DVGW: DW-6506CS0196, ABP: PA-IX 29258/IDC, SVGW: 1805-6754, ACS: 16 ACC LY 696
Required sales items
HANSABLUEBOX Installation technology
HANSABLUEBOX Installation technology
8000 0000
8001 0000
• Pressure plug
• Consisting of: Mounting box and cover sleeve
50729003
Chrome
EAN 4057304012525
Valid To: 31-03-2020
€ 64,10
• Limitation option for maximum temperature and
flow-rate
• Consisting of: Round rosette
5001 0900
50010900
EAN 4057304011719
€ 80,10
• G1/2
• Ø 40 mm ceramic cartridge for flow and tempera-
ture control
81119593
Chrome
EAN 4057304006746
€ 276,00
1
5
4
H
A
N
S
A
D
E
S
I
G
N
O
S
T
Y
L
E
• Ø 40 mm ceramic cartridge for flow and tempera-
ture control
• Consisting of: Rosette plate frame | Soft edge
rosette | Fastening of the function unit with
screws | Sleeve | Operating lever
