HANSA | LIVING

HANSADESIGNO STYLE

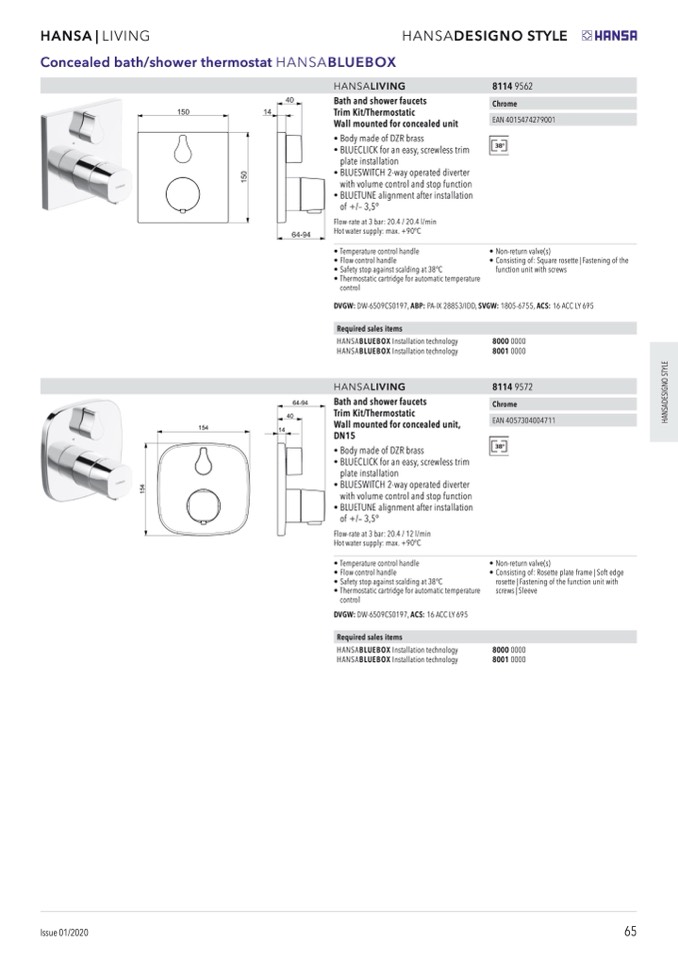

Concealed bath/shower thermostat HANSABLUEBOX

Issue 01/2020

65

154

64-94

40

14

HANSALIVING

Bath and shower faucets

Trim Kit/Thermostatic

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUESWITCH 2-way operated diverter

with volume control and stop function

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 20.4 / 20.4 l/min

Hot water supply: max. +90°C

• Temperature control handle

• Flow control handle

• Safety stop against scalding at 38°C

• Thermostatic cartridge for automatic temperature

81149562

Chrome

EAN 4015474279001

€ 537,00

control

DVGW: DW-6509CS0197, ABP: PA-IX 28853/IDD, SVGW: 1805-6755, ACS: 16 ACC LY 695

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

HANSALIVING

Bath and shower faucets

Trim Kit/Thermostatic

Wall mounted for concealed unit,

DN15

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUESWITCH 2-way operated diverter

with volume control and stop function

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 20.4 / 12 l/min

Hot water supply: max. +90°C

• Temperature control handle

• Flow control handle

• Safety stop against scalding at 38°C

• Thermostatic cartridge for automatic temperature

control

DVGW: DW-6509CS0197, ACS: 16 ACC LY 695

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

8000 0000

8001 0000

8114 9572

Chrome

EAN 4057304004711

€ 537,00

• Non-return valve(s)

• Consisting of: Square rosette | Fastening of the

function unit with screws

H

A

N

S

A

D

E

S

I

G

N

O

S

T

Y

L

E

1

5

4

• Non-return valve(s)

• Consisting of: Rosette plate frame | Soft edge

rosette | Fastening of the function unit with

screws | Sleeve

8000 0000

8001 0000
