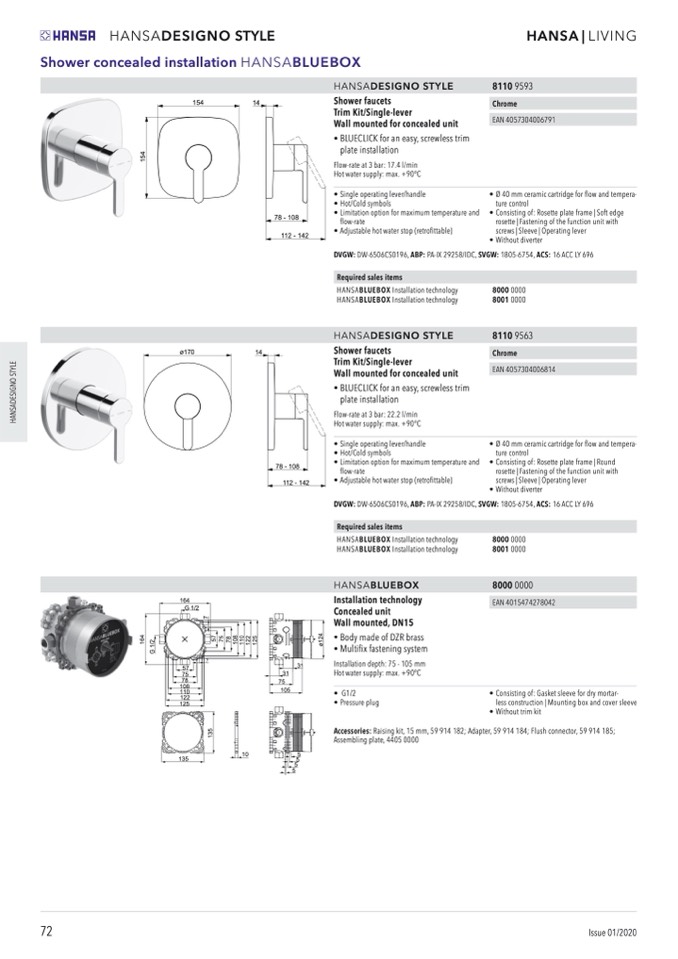

Shower concealed installation HANSABLUEBOX

HANSA | LIVING

154

14

78 - 108

112 - 142

• Ø 40 mm ceramic cartridge for flow and tempera-

ture control

• Consisting of: Rosette plate frame | Soft edge

rosette | Fastening of the function unit with

screws | Sleeve | Operating lever

HANSADESIGNO STYLE

Shower faucets

Trim Kit/Single-lever

Wall mounted for concealed unit

• BLUECLICK for an easy, screwless trim

plate installation

Flow-rate at 3 bar: 17.4 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

8110 9593

Chrome

EAN 4057304006791

€ 233,00

• Without diverter

DVGW: DW-6506CS0196, ABP: PA-IX 29258/IDC, SVGW: 1805-6754, ACS: 16 ACC LY 696

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

HANSADESIGNO STYLE

Shower faucets

Trim Kit/Single-lever

Wall mounted for concealed unit

• BLUECLICK for an easy, screwless trim

plate installation

Flow-rate at 3 bar: 22.2 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

8000 0000

8001 0000

81109563

Chrome

EAN 4057304006814

€ 233,00

1

3

5

7

5

7

1

6

4

G

1

/

2

1

5

4

7

5

7

8

1

0

8

1

1

0

1

2

2

1

2

5

ø

1

2

4

H

A

N

S

A

D

E

S

I

G

N

O

S

T

Y

L

E

72

Issue 01/2020

ø170

14

164

G 1/2

7

57

75

78

108

110

122

125

135

31

10

5

5

5

5

78 - 108

112 - 142

• Ø 40 mm ceramic cartridge for flow and tempera-

ture control

• Consisting of: Rosette plate frame | Round

rosette | Fastening of the function unit with

screws | Sleeve | Operating lever

31

75

105

• Consisting of: Gasket sleeve for dry mortar-

less construction | Mounting box and cover sleeve

• Without trim kit

• Without diverter

DVGW: DW-6506CS0196, ABP: PA-IX 29258/IDC, SVGW: 1805-6754, ACS: 16 ACC LY 696

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

HANSABLUEBOX

Installation technology

Concealed unit

Wall mounted, DN15

• Body made of DZR brass

• Multifix fastening system

Installation depth: 75 - 105 mm

Hot water supply: max. +90°C

• G1/2

• Pressure plug

8000 0000

8001 0000

80000000

EAN 4015474278042

€ 76,10

Accessories: Raising kit, 15 mm, 59 914 182; Adapter, 59 914 184; Flush connector, 59 914 185;

Assembling plate, 4405 0000
