76

Issue 01/2020

HANSADESIGNO STYLE

HANSA | LIVING

HANSAMATRIX

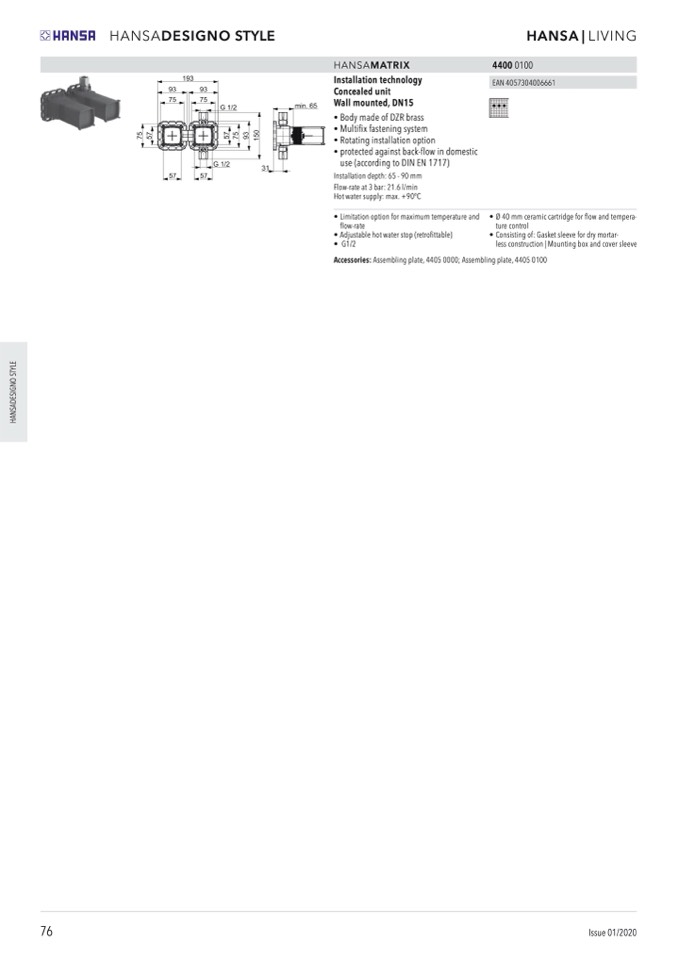

Installation technology

Concealed unit

Wall mounted, DN15

• Body made of DZR brass

• Multifix fastening system

• Rotating installation option

• protected against back-flow in domestic

use (according to DIN EN 1717)

Installation depth: 65 - 90 mm

Flow-rate at 3 bar: 21.6 l/min

Hot water supply: max. +90°C

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• G1/2

44000100

EAN 4057304006661

€ 191,00

Accessories: Assembling plate, 4405 0000; Assembling plate, 4405 0100

• Ø 40 mm ceramic cartridge for flow and tempera-

ture control

• Consisting of: Gasket sleeve for dry mortar-

lessconstruction|Mountingboxandcoversleeve

H

A

N

S

A

D

E

S

I

G

N

O

S

T

Y

L

E
