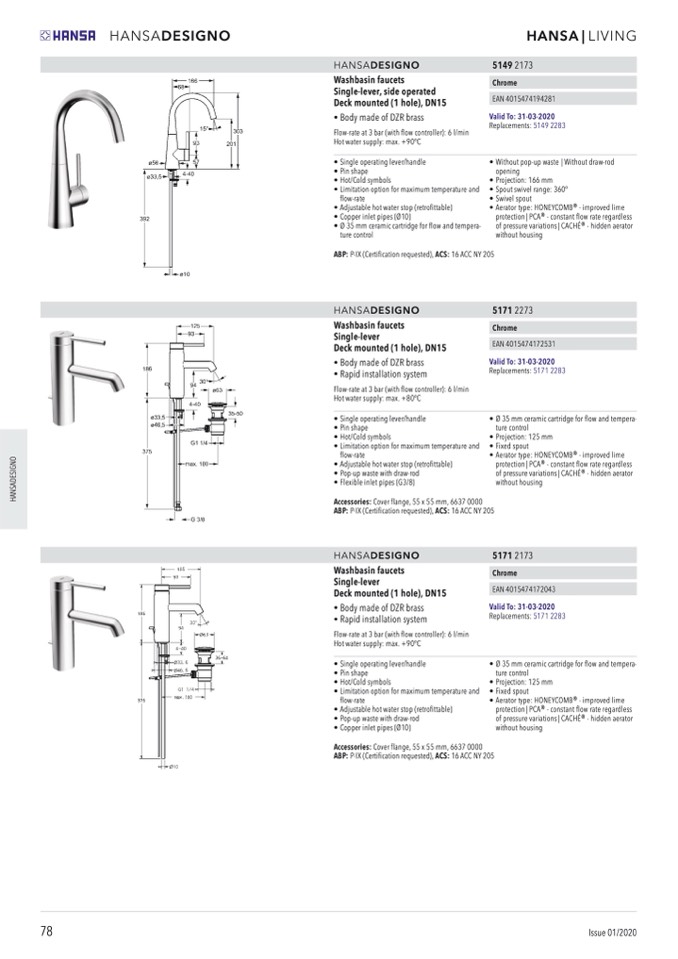

HANSADESIGNO

5149 2173

€ 300,00

Chrome

HANSADESIGNO

EAN 4015474194281

5171 2273

€ 295,00

HANSADESIGNO

Chrome

EAN 4015474172531

5171 2173

€ 295,00

Chrome

EAN 4015474172043

HANSADESIGNO

HANSA | LIVING

Washbasin faucets

Single-lever, side operated

Deck mounted (1 hole), DN15

• Body made of DZR brass

Flow-rate at 3 bar (with flow controller): 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Pin shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Copper inlet pipes (Ø10)

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

ABP: P-IX (Certification requested), ACS: 16 ACC NY

Washbasin faucets

Single-lever

Deck mounted (1 hole), DN15

• Body made of DZR brass

• Rapid installation system

Flow-rate at 3 bar (with flow controller): 6 l/min

Hot water supply: max. +80°C

• Single operating lever/handle

• Pin shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Pop-up waste with draw-rod

• Flexible inlet pipes (G3/8)

Accessories: Cover flange, 55 x 55 mm, 6637 0000

ABP: P-IX (Certification requested), ACS: 16 ACC NY

Washbasin faucets

Single-lever

Deck mounted (1 hole), DN15

• Body made of DZR brass

• Rapid installation system

Flow-rate at 3 bar (with flow controller): 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Pin shape

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Pop-up waste with draw-rod

• Copper inlet pipes (Ø10)

Accessories: Cover flange, 55 x 55 mm, 6637 0000

ABP: P-IX (Certification requested), ACS: 16 ACC NY

Valid To: 31-03-2020

Replacements: 5149 2283

• Without pop-up waste | Without draw-rod

opening

• Projection: 166 mm

• Spout swivel range: 360°

• Swivel spout

• Aerator type: HONEYCOMB® - improved lime

protection | PCA® - constant flow rate regardless

of pressure variations | CACHÉ® - hidden aerator

without housing

205

Valid To: 31-03-2020

Replacements: 5171 2283

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Projection: 125 mm

• Fixed spout

• Aerator type: HONEYCOMB® - improved lime

protection | PCA® - constant flow rate regardless

of pressure variations | CACHÉ® - hidden aerator

without housing

205

Valid To: 31-03-2020

Replacements: 5171 2283

•

•

•

•

205

Ø 35 mm ceramic cartridge for flow and tempera-

ture control

Projection: 125 mm

Fixed spout

Aerator type: HONEYCOMB® - improved lime

protection | PCA® - constant flow rate regardless

of pressure variations | CACHÉ® - hidden aerator

without housing

78

Issue 01/2020
