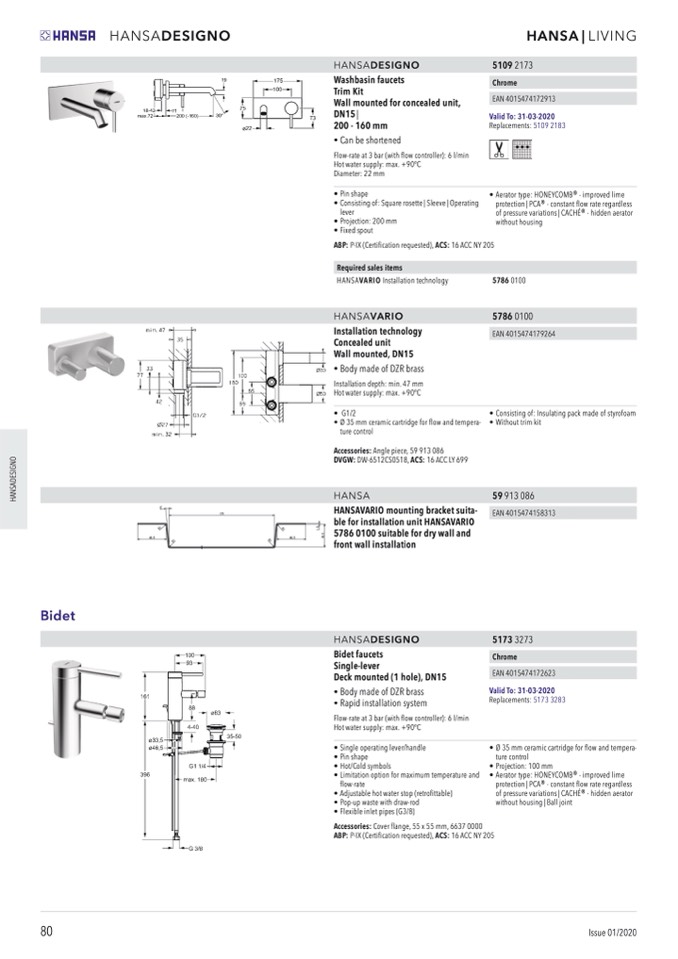

HANSADESIGNO
5109 2173
€ 356,00
Chrome
Required sales items
HANSAVARIO
EAN 4015474172913
5786 0100
€ 115,00
EAN 4015474179264
HANSA
HANSADESIGNO
59 913 086
5173 3273
Chrome
€ 24,00
EAN 4015474158313
€ 362,00
EAN 4015474172623
HANSADESIGNO
HANSA | LIVING
Washbasin faucets
Trim Kit
Wall mounted for concealed unit,
DN15 |
200 - 160 mm
• Can be shortened
Flow-rate at 3 bar (with flow controller): 6 l/min
Hot water supply: max. +90°C
Diameter: 22 mm
• Pin shape
• Consisting of: Square rosette | Sleeve | Operating
lever
• Projection: 200 mm
• Fixed spout
Valid To: 31-03-2020
Replacements: 5109 2183
• Aerator type: HONEYCOMB® - improved lime
protection | PCA® - constant flow rate regardless
of pressure variations | CACHÉ® - hidden aerator
without housing
ABP: P-IX (Certification requested), ACS: 16 ACC NY 205
HANSAVARIO Installation technology
Installation technology
Concealed unit
Wall mounted, DN15
• Body made of DZR brass
Installation depth: min. 47 mm
Hot water supply: max. +90°C
• G1/2
• Ø 35 mm ceramic cartridge for flow and tempera-
ture control
Accessories: Angle piece, 59 913 086
DVGW: DW-6512CS0518, ACS: 16 ACC LY 699
HANSAVARIO mounting bracket suita-
ble for installation unit HANSAVARIO
5786 0100 suitable for dry wall and
front wall installation
Bidet faucets
Single-lever
Deck mounted (1 hole), DN15
• Body made of DZR brass
• Rapid installation system
Flow-rate at 3 bar (with flow controller): 6 l/min
Hot water supply: max. +90°C
• Single operating lever/handle
• Pin shape
• Hot/Cold symbols
• Limitation option for maximum temperature and
flow-rate
• Adjustable hot water stop (retrofittable)
• Pop-up waste with draw-rod
• Flexible inlet pipes (G3/8)
5786 0100
• Consisting of: Insulating pack made of styrofoam
• Without trim kit
Bidet
Valid To: 31-03-2020
Replacements: 5173 3283
Accessories: Cover flange, 55 x 55 mm, 6637 0000
ABP: P-IX (Certification requested), ACS: 16 ACC NY 205
•
•
•
Ø 35 mm ceramic cartridge for flow and tempera-
ture control
Projection: 100 mm
Aerator type: HONEYCOMB® - improved lime
protection | PCA® - constant flow rate regardless
of pressure variations | CACHÉ® - hidden aerator
without housing | Ball joint
80
Issue 01/2020
