HANSADESIGNO

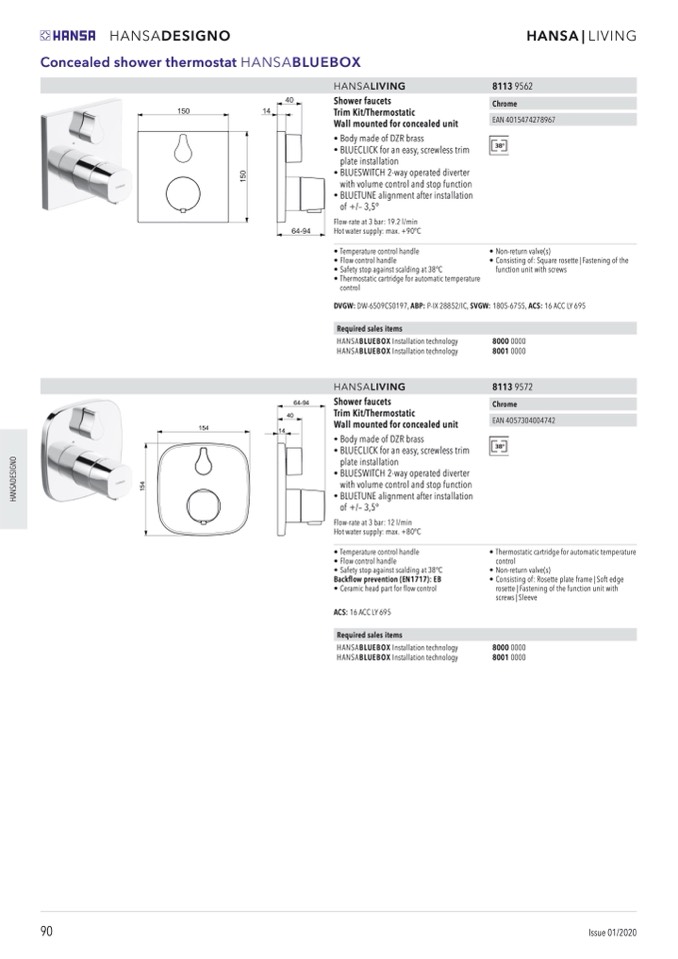

Concealed shower thermostat HANSABLUEBOX

HANSA | LIVING

90

Issue 01/2020

154

14

40

64-94

HANSALIVING

Shower faucets

Trim Kit/Thermostatic

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUESWITCH 2-way operated diverter

with volume control and stop function

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 19.2 l/min

Hot water supply: max. +90°C

• Temperature control handle

• Flow control handle

• Safety stop against scalding at 38°C

• Thermostatic cartridge for automatic temperature

81139562

Chrome

EAN 4015474278967

€ 529,00

control

DVGW: DW-6509CS0197, ABP: P-IX 28852/IC, SVGW: 1805-6755, ACS: 16 ACC LY 695

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

HANSALIVING

Shower faucets

Trim Kit/Thermostatic

Wall mounted for concealed unit

• Body made of DZR brass

• BLUECLICK for an easy, screwless trim

plate installation

• BLUESWITCH 2-way operated diverter

with volume control and stop function

• BLUETUNE alignment after installation

of +/– 3,5o

Flow-rate at 3 bar: 12 l/min

Hot water supply: max. +80°C

• Temperature control handle

• Flow control handle

• Safety stop against scalding at 38°C

Backflow prevention (EN1717): EB

• Ceramic head part for flow control

ACS: 16 ACC LY 695

Required sales items

HANSABLUEBOX Installation technology

HANSABLUEBOX Installation technology

8000 0000

8001 0000

81139572

Chrome

EAN 4057304004742

€ 529,00

• Non-return valve(s)

• Consisting of: Square rosette | Fastening of the

function unit with screws

1

5

4

H

A

N

S

A

D

E

S

I

G

N

O

• Thermostatic cartridge for automatic temperature

control

• Non-return valve(s)

• Consisting of: Rosette plate frame | Soft edge

rosette | Fastening of the function unit with

screws | Sleeve

8000 0000

8001 0000
