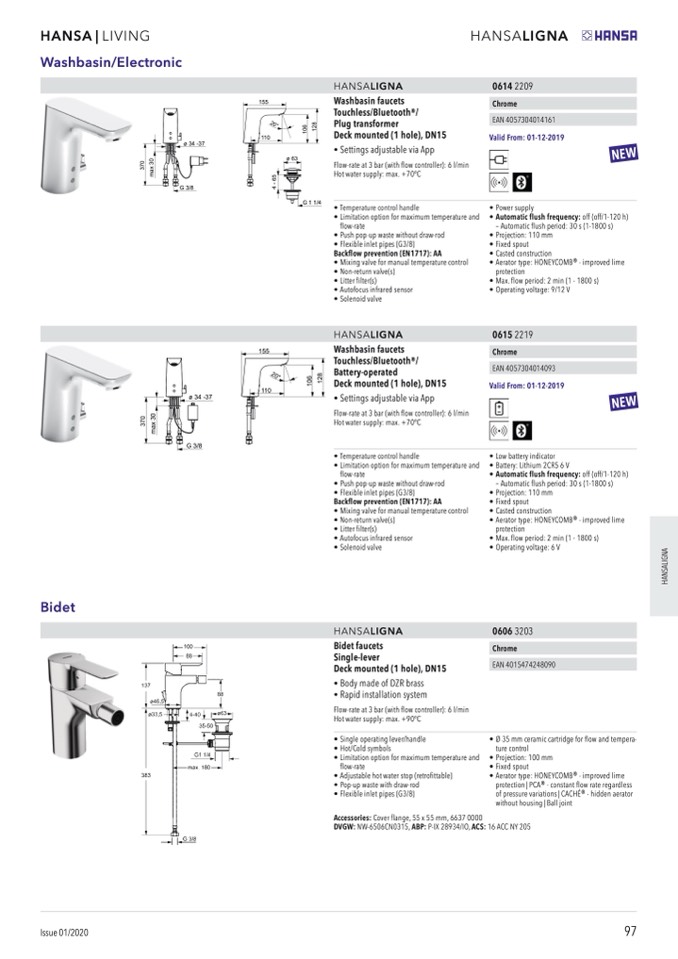

HANSA | LIVING

Washbasin/Electronic

HANSALIGNA

06142209

Chrome

EAN 4057304014161

Valid From: 01-12-2019

ø 34 -37

G 3/8

155

110

N

ø 63

HANSALIGNA

Washbasin faucets

Touchless/Bluetooth®/

Plug transformer

Deck mounted (1 hole), DN15

• Settings adjustable via App

Flow-rate at 3 bar (with flow controller): 6 l/min

Hot water supply: max. +70°C

• Temperature control handle

• Limitation option for maximum temperature and

flow-rate

• Push pop-up waste without draw-rod

• Flexible inlet pipes (G3/8)

Backflow prevention (EN1717): AA

• Mixing valve for manual temperature control

• Non-return valve(s)

• Litter filter(s)

• Autofocus infrared sensor

• Solenoid valve

HANSALIGNA

Washbasin faucets

Touchless/Bluetooth®/

Battery-operated

Deck mounted (1 hole), DN15

• Settings adjustable via App

Flow-rate at 3 bar (with flow controller): 6 l/min

Hot water supply: max. +70°C

• Temperature control handle

• Limitation option for maximum temperature and

flow-rate

• Push pop-up waste without draw-rod

• Flexible inlet pipes (G3/8)

Backflow prevention (EN1717): AA

• Mixing valve for manual temperature control

• Non-return valve(s)

• Litter filter(s)

• Autofocus infrared sensor

• Solenoid valve

HANSALIGNA

Bidet faucets

Single-lever

Deck mounted (1 hole), DN15

• Body made of DZR brass

• Rapid installation system

Flow-rate at 3 bar (with flow controller): 6 l/min

Hot water supply: max. +90°C

• Single operating lever/handle

• Hot/Cold symbols

• Limitation option for maximum temperature and

flow-rate

• Adjustable hot water stop (retrofittable)

• Pop-up waste with draw-rod

• Flexible inlet pipes (G3/8)

€ 400,00

2

0

°

H

A

N

S

A

L

I

G

N

A

3

7

0

m

a

x

3

0

3

7

0

m

a

x

3

0

1

0

6

1

2

8

1

0

6

1

2

8

4

-

6

5

Bidet

Issue 01/2020

97

ø 34 -37

G 3/8

155

110

G 1 1/4

• Power supply

• Automatic flush frequency: off (off/1-120 h)

– Automatic flush period: 30 s (1-1800 s)

• Projection: 110 mm

• Fixed spout

• Casted construction

• Aerator type: HONEYCOMB® - improved lime

protection

• Max. flow period: 2 min (1 - 1800 s)

• Operating voltage: 9/12 V

Accessories: Cover flange, 55 x 55 mm, 6637 0000

DVGW: NW-6506CN0315, ABP: P-IX 28934/IO, ACS: 16 ACC NY 205

06152219

Chrome

EAN 4057304014093

Valid From: 01-12-2019

€ 348,00

• Low battery indicator

• Battery: Lithium 2CR5 6 V

• Automatic flush frequency: off (off/1-120 h)

– Automatic flush period: 30 s (1-1800 s)

• Projection: 110 mm

• Fixed spout

• Casted construction

• Aerator type: HONEYCOMB® - improved lime

protection

• Max. flow period: 2 min (1 - 1800 s)

• Operating voltage: 6 V

06063203

Chrome

EAN 4015474248090

€ 269,00

• Ø 35 mm ceramic cartridge for flow and tempera-

ture control

• Projection: 100 mm

• Fixed spout

• Aerator type: HONEYCOMB® - improved lime

protection | PCA® - constant flow rate regardless

of pressure variations | CACHÉ® - hidden aerator

without housing | Ball joint
