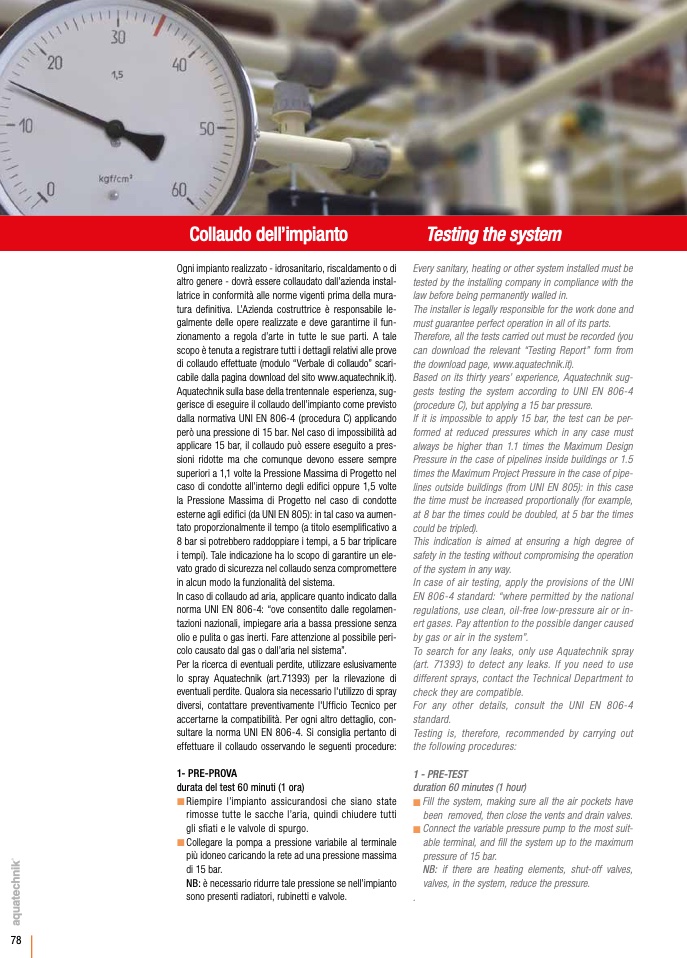

Ogni impianto realizzato - idrosanitario, riscaldamento o di
altro genere - dovrà essere collaudato dall’azienda instal-
latrice in conformità alle norme vigenti prima della mura-
tura definitiva. L’Azienda costruttrice è responsabile le-
galmente delle opere realizzate e deve garantirne il fun-
zionamento a regola d’arte in tutte le sue parti. A tale
scopo è tenuta a registrare tutti i dettagli relativi alle prove
di collaudo effettuate (modulo “Verbale di collaudo” scari-
cabile dalla pagina download del sito www.aquatechnik.it).
Aquatechnik sulla base della trentennale esperienza, sug-
gerisce di eseguire il collaudo dell’impianto come previsto
dalla normativa UNI EN 806-4 (procedura C) applicando
però una pressione di 15 bar. Nel caso di impossibilità ad
applicare 15 bar, il collaudo può essere eseguito a pres-
sioni ridotte ma che comunque devono essere sempre
superiori a 1,1 volte la Pressione Massima di Progetto nel
caso di condotte all’interno degli edifici oppure 1,5 volte
la Pressione Massima di Progetto nel caso di condotte
esterne agli edifici (da UNI EN 805): in tal caso va aumen-
tato proporzionalmente il tempo (a titolo esemplificativo a
8 bar si potrebbero raddoppiare i tempi, a 5 bar triplicare
i tempi). Tale indicazione ha lo scopo di garantire un ele-
vato grado di sicurezza nel collaudo senza compromettere
in alcun modo la funzionalità del sistema.
In caso di collaudo ad aria, applicare quanto indicato dalla
norma UNI EN 806-4: “ove consentito dalle regolamen-
tazioni nazionali, impiegare aria a bassa pressione senza
olio e pulita o gas inerti. Fare attenzione al possibile peri-
colo causato dal gas o dall’aria nel sistema”.
Per la ricerca di eventuali perdite, utilizzare eslusivamente
lo spray Aquatechnik (art.71393) per la rilevazione di
eventuali perdite. Qualora sia necessario l'utilizzo di spray
diversi, contattare preventivamente l'Ufficio Tecnico per
accertarne la compatibilità. Per ogni altro dettaglio, con-
sultare la norma UNI EN 806-4. Si consiglia pertanto di
effettuare il collaudo osservando le seguenti procedure:
1- PRE-PROVA
durata del test 60 minuti (1 ora)
Riempire l’impianto assicurandosi che siano state
rimosse tutte le sacche l’aria, quindi chiudere tutti
gli sfiati e le valvole di spurgo.
Collegare la pompa a pressione variabile al terminale
più idoneo caricando la rete ad una pressione massima
di 15 bar.
NB: è necessario ridurre tale pressione se nell’impianto
sono presenti radiatori, rubinetti e valvole.
Every sanitary, heating or other system installed must be
tested by the installing company in compliance with the
law before being permanently walled in.
The installer is legally responsible for the work done and
must guarantee perfect operation in all of its parts.
Therefore, all the tests carried out must be recorded (you
can download the relevant “Testing Report” form from
the download page, www.aquatechnik.it).
Based on its thirty years’ experience, Aquatechnik sug-
gests testing the system according to UNI EN 806-4
(procedure C), but applying a 15 bar pressure.
If it is impossible to apply 15 bar, the test can be per-
formed at reduced pressures which in any case must
always be higher than 1.1 times the Maximum Design
Pressure in the case of pipelines inside buildings or 1.5
times the Maximum Project Pressure in the case of pipe-
lines outside buildings (from UNI EN 805): in this case
the time must be increased proportionally (for example,
at 8 bar the times could be doubled, at 5 bar the times
could be tripled).
This indication is aimed at ensuring a high degree of
safety in the testing without compromising the operation
of the system in any way.
In case of air testing, apply the provisions of the UNI
EN 806-4 standard: “where permitted by the national
regulations, use clean, oil-free low-pressure air or in-
ert gases. Pay attention to the possible danger caused
by gas or air in the system”.
To search for any leaks, only use Aquatechnik spray
(art. 71393) to detect any leaks. If you need to use
different sprays, contact the Technical Department to
check they are compatible.
For any other details, consult the UNI EN 806-4
standard.
Testing is, therefore, recommended by carrying out
the following procedures:
1 - PRE-TEST
duration 60 minutes (1 hour)
Fill the system, making sure all the air pockets have
been removed, then close the vents and drain valves.
Connect the variable pressure pump to the most suit-
able terminal, and fill the system up to the maximum
pressure of 15 bar.
NB: if there are heating elements, shut-off valves,
valves, in the system, reduce the pressure.
.
